Steel matchup
O1 and 1084, compared on the five things that decide a blade: toughness, edge retention, corrosion, heat treat and how each one grinds.
The classic oil-hardening tool steel and the original precision ground flat stock: fine-grained, keen-edged and forgiving to grind, with genuinely good edge retention for a low-alloy steel — bought at the price of moderate toughness and full carbon-steel rust care.
The classic beginner-friendly high-carbon steel: simple, oil-hardening, and forgiving, with a strong balance of toughness and edge-holding that makes it a go-to choice for a first knife.
Dimension by dimension
Each steel's own note, its score out of five, and what separates the two in that one column. The higher score in a row is marked in purple.
| Dimension | O1 | 1084 | What separates them |
|---|---|---|---|
| Toughness | O1's honest weak point. The same high carbon and fine carbide content that give it a keen, wear-resistant edge cap its impact toughness at moderate — better than 1095 at equal hardness, but clearly behind 5160, 80CrV2, 15N20 and A2. Suited to slicing blades; a poor choice for choppers, machetes or big camp knives. | Very good for a simple carbon steel, and a big part of why it is so widely recommended: it holds up well to impact without the brittleness risk that comes with over-hardened, lower-manganese steels like 1095. | 1084 wins, though not dramatically. Its lower carbon content leaves less excess carbide, so at equal hardness it absorbs impact better than O1. Both sit in the moderate range — for a blade that will actually be abused, 5160 or 80CrV2 is the honest answer instead of either of these. |
| Edge retention | Strong for a low-alloy steel. Chromium and tungsten form fine, evenly distributed carbides that out-slice the simple carbon steels noticeably, and the fine structure means the apex itself is very keen rather than merely hard. Still well below D2 and the powder-metallurgy steels in raw wear resistance. | Modest, in line with other simple carbon steels lacking wear-resistant alloy carbides, but it takes a very keen edge easily. | O1 wins clearly. Chromium and tungsten form fine carbides that 1084 simply does not have, so O1 out-slices it at the same hardness and takes a finer apex. This is the main reason to accept O1's fussier heat treat. |
| Corrosion resistance | Essentially none. The ~0.5% chromium serves hardenability, not stain resistance. O1 rusts readily — it will spot overnight in a humid shop and flash rust on a fresh grind. Oil it, dry it, and treat a patina as a feature rather than a flaw. | No chromium and no meaningful corrosion resistance. Needs regular oiling and drying like any plain carbon steel. | A tie, and a poor one. O1's ~0.5% chromium and 1084's essentially zero both amount to no meaningful rust resistance. Oil both, dry both, and let both take a patina. |

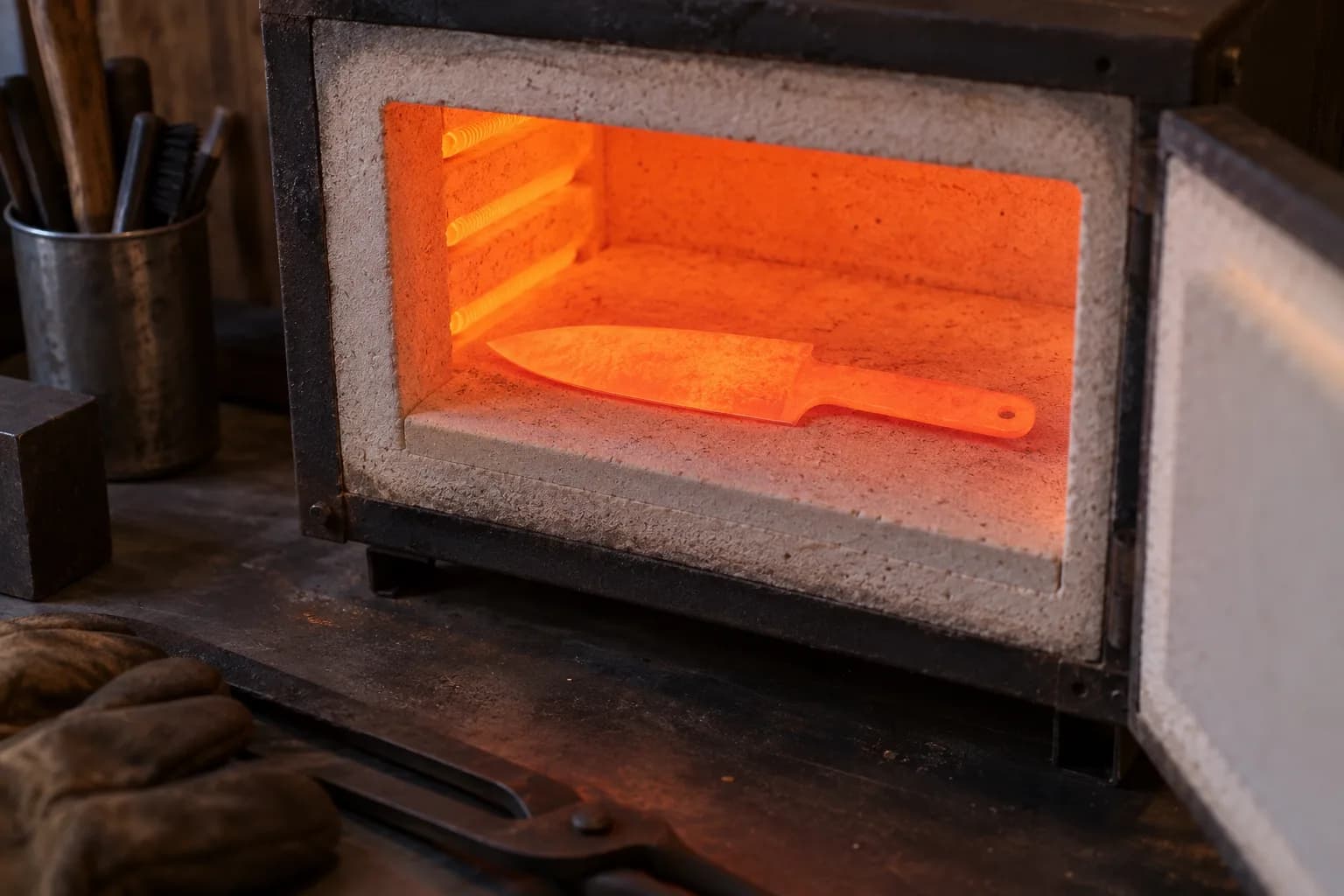

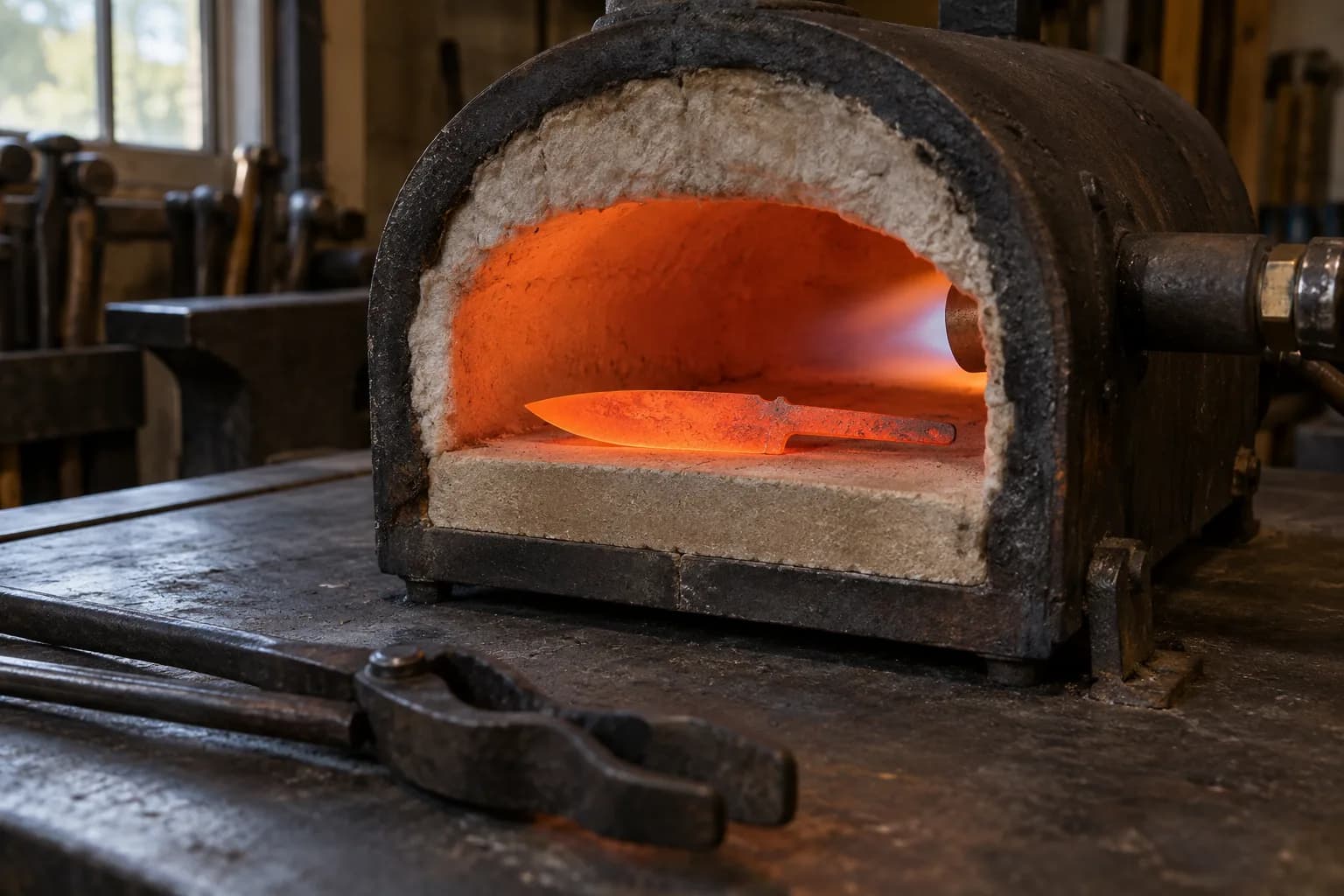

| Heat treat | Normalize and thermal cycle first if the stock has been forged. Austenitize at 1475°F with a 10–15 minute soak — do not go to 1550°F, which testing shows reduces toughness with no hardness benefit. Quench in a medium-speed oil (Parks AAA or an 11-second class oil); O1 is deep hardening and does not need a fast oil. Temper twice for two hours at 350–450°F: ~400°F gives 59–61 HRC, 350°F holds 61–62 for thin blades, 450°F drops to 57–58 for larger ones. | Optionally normalize at 1607-1652 F to refine grain and relieve stress after forging or heavy machining. Austenitize at 1500-1525 F, holding 5-15 minutes, then quench in preheated oil (around 104-140 F) for reliable, full hardness thanks to 1084's higher manganese content. Temper starting around 350 F, going up to about 450 F depending on desired hardness; for general hunting and utility blades, 375-425 F for 2 hours across 2-3 cycles is a common recommendation, letting the blade cool to room temperature between cycles. | The real difference. 1084 is eutectoid, needs no soak, and hardens fully from a magnet-test heat quenched in fast oil — forge-friendly and forgiving. O1 needs a genuine 10 to 15 minute soak at 1475°F in a controlled kiln, and a medium-speed oil. Overshoot to 1550°F and O1 loses toughness for nothing, a mistake 1084 will not punish you for. |

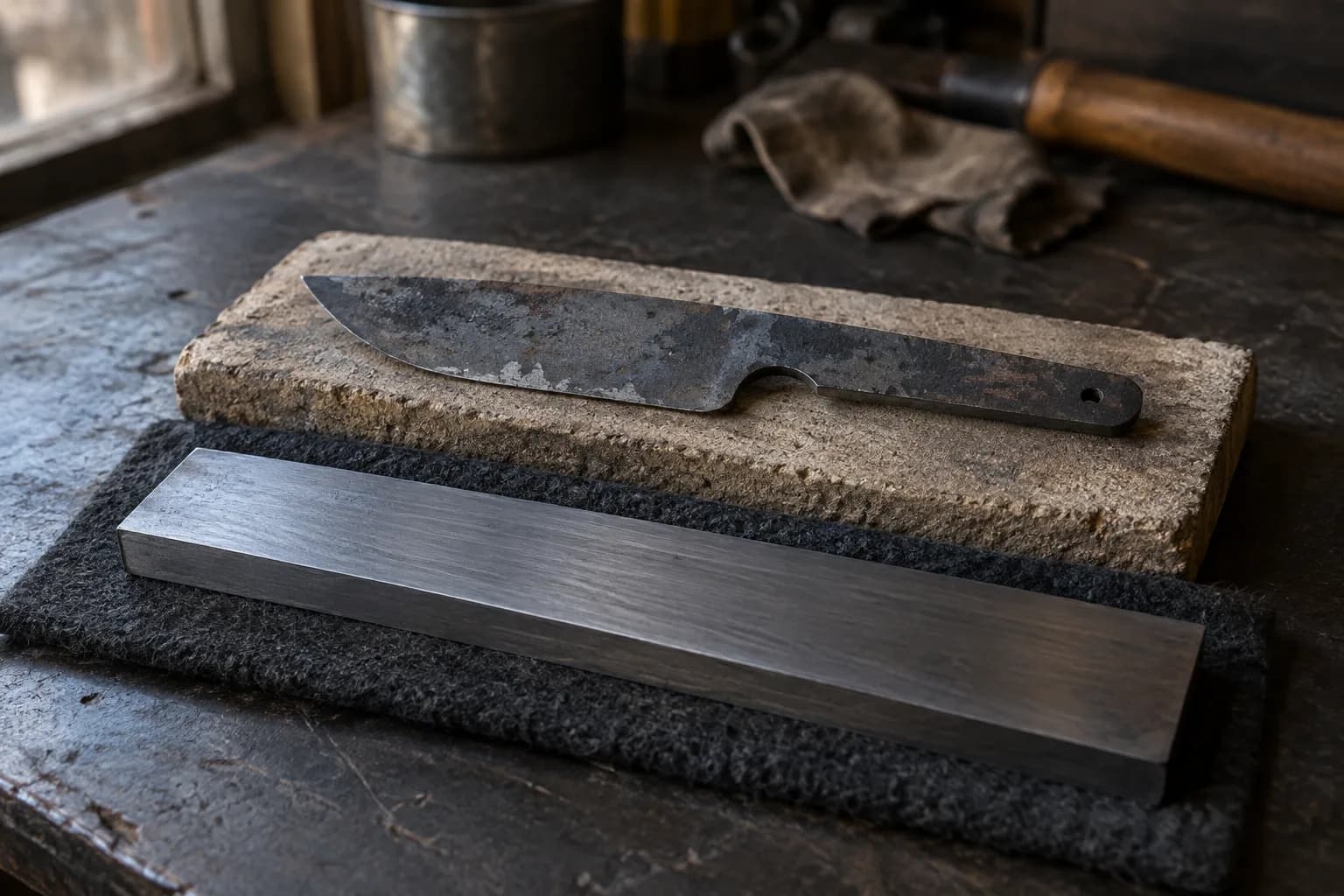

| Grinding | One of the friendliest steels in the shop. Annealed O1 files, drills and grinds cleanly, and because it is sold as precision ground flat stock it arrives flat and square — no surface grinding needed before layout. Hand-sands to a clean finish without fighting back. | Extremely easy to grind and forge, one of the most forgiving steels available for both stock removal and forging work. | Close, with a slight nod to 1084 as the softer, simpler steel. O1's advantage is that it ships as precision ground flat stock — flat, square and ready to profile — which saves real setup work before a single belt touches it. |
Best use
O1
kitchen knives, EDC slicers, hunters, razors and woodworking tools where a keen long-lasting edge is the point.
Open the O1 reference1084
first knives, forged blades, camp and utility knives, anything heat treated without a kiln, and the dark layer in damascus.
Open the 1084 reference
The long answer
The two steels most often recommended to new makers, for opposite reasons. 1084 is the forgiving one you can heat treat in a forge with a magnet; O1 is the precise one that pays you back with a finer, longer-lasting edge. The right answer depends almost entirely on what you are quenching with.
Keep comparing
Keep reading
1084 is one of the easiest steels in this database to grind, forge, and finish, a big part of why it is the standard recommendation for a first knife. No…
O1 is one of the easiest steels in the shop to work, and one of the easiest to ruin with heat. It arrives as precision ground flat stock — genuinely flat…
Every knife steel is iron plus a specific recipe of other elements, and each of those elements pulls the steel’s behavior in a particular direction…
Same bench
Whichever steel wins, the grind is only as flat as the platen behind it. I machine the parts, hand-assemble, track and test Torus grinders in Sterling, Illinois.
Current dual-axis platform with a fiber-laser-cut 6061 chassis and single-knob tracking.
Current dual-axis platform with a steel chassis, more mass and less vibration.
Prior-design aluminum chassis, 90-degree tilt and 1.5-inch tooling arms.
One-man shop
Tell me what the blade is for and how you heat treat, and I will tell you which of these I would put on the bench — including when the answer is neither.
