Knife steel selection in a working knife shop

Steel matchup

MagnaCut vs Elmax

MagnaCut and Elmax, compared on the five things that decide a blade: toughness, edge retention, corrosion, heat treat and how each one grinds.

  • CPM MagnaCut

A powder-metallurgy stainless steel balancing high toughness, strong edge retention, and excellent corrosion resistance, widely regarded as one of the most well-rounded modern knife steels.

  • Carbon (C)1.15%
  • Chromium (Cr)10.7%
  • Vanadium (V)4.00%
  • Molybdenum (Mo)2.00%
Toughness
5 / 5
Edge retention
4 / 5
Corrosion resistance
5 / 5
Ease of grinding
3 / 5
  • Bohler Elmax

A premium powder-metallurgy stainless steel from Bohler-Uddeholm, balancing strong edge retention with good stainless corrosion resistance and easier sharpening than most steels in its performance class.

  • Carbon (C)1.70%
  • Chromium (Cr)18.00%
  • Vanadium (V)3.00%
  • Molybdenum (Mo)1.00%
Toughness
4 / 5
Edge retention
4 / 5
Corrosion resistance
4 / 5
Ease of grinding
3 / 5

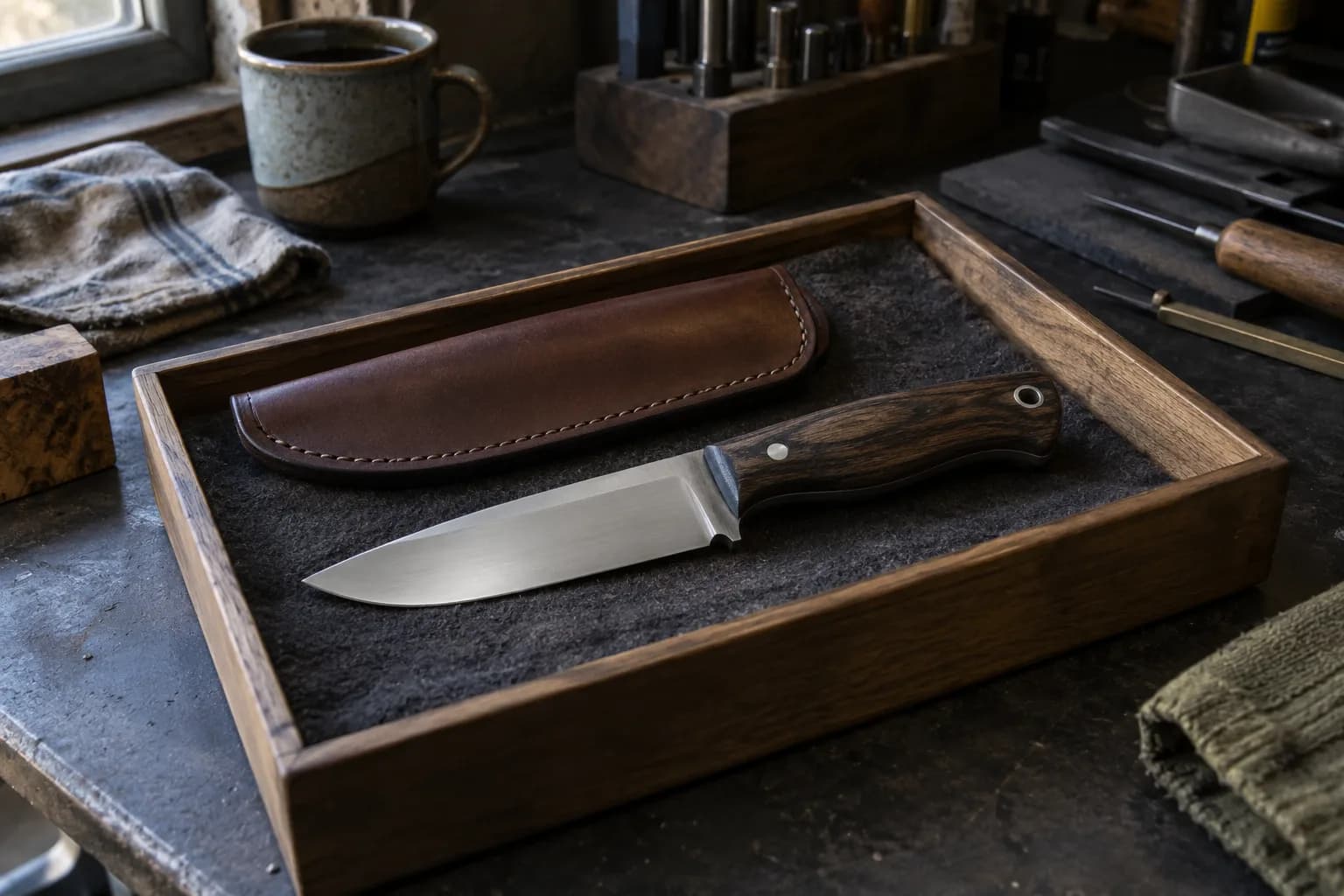

Finished drop-point knife with dark wood handle in a felt-lined oak tray beside a brown stitched leather sheath.

Dimension by dimension

Where they actually differ

Each steel's own note, its score out of five, and what separates the two in that one column. The higher score in a row is marked in purple.

DimensionMagnaCutElmaxWhat separates them
Toughness5/5In Charpy impact testing at 62.5 HRC, MagnaCut delivers roughly 38 ft-lbs of toughness, about 40% tougher than S35VN at similar hardness, and roughly double the toughness of M390. It performs on par with tough non-stainless steels like CPM 4V and Vanadis 4 Extra.4/5Fine, round carbides from the powder-metallurgy process give it good toughness for a high-carbide steel, with minimal risk of edge chipping when hardened correctly.MagnaCut wins clearly. Larrin Thomas rates it 7 out of 10 for toughness against 4 for Elmax, and Crucible's Charpy table puts MagnaCut at 38 ft-lbs at 62.5 HRC, ahead of every stainless steel it lists (CPM 154CM 26, S35VN 25, S90V 17, 20CV 15). Elmax is not in that table. Thomas ties the low toughness of the early high-chromium powder steels, Elmax among them, to their coarse chromium carbides; MagnaCut has none.
Edge retention4/5CATRA edge-retention testing places MagnaCut between S35VN and S45VN, very good, though not at the extreme end occupied by steels like S90V or M390.4/5Strong wear resistance from a heavy vanadium and chromium carbide load, holding an edge well in everyday-carry and outdoor use.Elmax, by a modest margin at equal hardness. Thomas rates Elmax 5.5 and MagnaCut 5, and his CATRA chart puts Elmax at about 61 HRC above MagnaCut at the same hardness. MagnaCut makes some of it up by running harder: Crucible lists 135% of 440C at 62.5 HRC, and Thomas's own CATRA tests matched S35VN. He also notes that edges fail by chipping, deformation and corrosion, not only wear.
Corrosion resistance5/5MagnaCut keeps its full 10.7% chromium in solid solution, giving it corrosion resistance that exceeds S35VN, S45VN, M390, and 20CV, among the best of any high-performance knife steel, approaching though not quite reaching saltwater-grade steels like Vanax or LC200N.4/5Larrin Thomas rates Elmax 8 of 10 for corrosion resistance: half a point above S35VN and S30V (7.5), behind MagnaCut (9.5), 20CV (9) and LC200N (10). Its 18% chromium makes it a solid stainless, but in his 72-hour 1% saltwater test Elmax showed rust spots where MagnaCut showed none.MagnaCut wins, although Elmax carries 18% chromium against MagnaCut's 10.7%. Crucible's design leaves no chromium carbide in MagnaCut, so all its chromium stays in solution. In Thomas's 72-hour 1% saltwater spray test MagnaCut showed no rust and Elmax showed rust spots; his ratings are 9.5 against 8. Neither is in the saltwater class of LC200N and Vanax, both rated 10.
Heat treatRecommended heat treatment from Crucible's CPM MagnaCut data sheet: preheat at 1550-1600 degrees F, austenitize at 2050 degrees F (1120 C) for 20 minutes (Crucible's hold-time chart runs from 30 minutes at 1950 F to 5 minutes at 2200 F), quench to below 125 F with a plate, air or positive-pressure gas quench (or a salt or interrupted oil quench to about 1000 F, then air), then double temper at 350 degrees F (175 C) for at least 2 hours each, cooling to hand warm between. Crucible's aim is 60-63 HRC. For that recipe its table lists 61.5 HRC after a plate or oil quench and 62 HRC with dry ice or liquid nitrogen after the quench, and Larrin Thomas reports around 61-62.5 HRC. Higher hardness needs a different cycle: with a 300 F temper the same 2050 F austenitize gives 62.5 HRC (63 HRC with dry ice or liquid nitrogen), and the table's results of 64-65 HRC all come from austenitizing at 2100-2200 F with a cold treatment (a freezer for 64-64.5 HRC, liquid nitrogen or dry ice for 64-65 HRC, or cryo in a vacuum furnace for 64 HRC), mostly with a 300 F temper; one cell, 64 HRC, is a 350 F temper at 2200 F with liquid nitrogen or dry ice. At the recommended 2050 F and 350 F cycle a cold treatment is optional, and Crucible warns that tempering above 750 F reduces corrosion resistance. Because MagnaCut is a stainless PM steel, it should be heat treated in a foil-wrapped or controlled-atmosphere environment to prevent scale and decarburization, and requires an oven capable of holding precise soak temperatures. A dedicated quench plate system makes it much easier to control warping during the plate quench step. For the general principles behind every stage of this process, see our Complete Guide to Heat Treating Knife Steel.Uddeholm's Elmax heat treatment guideline (revised August 15, 2024) and data sheet (edition 10, March 2023). Published base cycle: preheat in steps at 1200°F and 1550°F, austenitize at 1920-2010°F (1050-1100°C), normally 1980°F (1080°C), and hold at least 30 minutes and at most 1 hour once the part is heated through. Quench in positive-pressure gas, salt or oil, then temper at least twice, 2 hours minimum each, as soon as the part reaches 150°F. Uddeholm prefers tempering at 480°F or higher and lists 56-58 HRC for its 480°F and 980°F tempers after a 1980°F austenitize; the data sheet lists 60 HRC before tempering after 1920°F and 61 HRC after 1980°F, which are as-quenched figures, not finished hardness. Cold treatment, which Uddeholm permits: a cryogenic treatment right after the quench, before any tempering, is part of the guideline and is expected to add 1-2 HRC (the data sheet says about 1-3 HRC for a 1-3 hour sub-zero treatment, commonly at -150 to -196°C and occasionally at -40 to -80°C), with some risk of cracking in intricate shapes. Adding the guideline's 1-2 HRC to its 56-58 HRC table figures gives roughly 57-60 HRC for a cold-treated part; that sum is our arithmetic, not an Uddeholm table value. Lower tempers: the data sheet allows 350°F only in exceptional cases, for small simple parts where toughness matters less, and its tempering graph (drawn for small 15 x 15 x 40 mm samples; larger parts come out lower) reads by eye about 58-59 HRC at a 390°F temper and about 60 HRC near 210°F after a 2010°F austenitize, a point below the 350°F minimum the data sheet gives. We have not found a separately sourced knife-maker cycle for Elmax with measured hardness; Larrin Thomas's CATRA chart (see our MagnaCut vs Elmax page) uses Elmax at about 61 HRC, but we have no cycle to cite for it. A knife sold at 60 HRC or more should say which cycle it used (a cold treatment is within Uddeholm's guidance; a temper below the preferred 480°F is allowed only in exceptional cases, 350°F at the lowest), and its actual hardness should be confirmed by test.MagnaCut is the more forgiving. Crucible's data sheet allows austenitizing from 1950 to 2200°F and recommends 2050°F with a 350°F double temper for a 60 to 63 HRC aim; its table lists 61.5 HRC after a plate or oil quench and 62 HRC with dry ice or liquid nitrogen at that recipe, and Larrin Thomas reports around 61 to 62.5 HRC. Uddeholm's guideline (revised August 15, 2024) gives Elmax a 1920 to 2010°F window (1980°F normal), prefers tempers of 480°F or higher and lists 56 to 58 HRC at its 480°F and 980°F tempers; it also permits a cryogenic treatment right after the quench and expects it to add 1 to 2 HRC, which by our arithmetic puts a cold-treated Elmax at about 57 to 60 HRC (Uddeholm does not print that sum). Its tempering graph reads about 58 to 59 HRC at a 390°F temper, below the 480°F it prefers, and about 60 near 210°F, below the 350°F minimum its data sheet gives. We have no cycle to cite for the Elmax at about 61 HRC in Thomas's CATRA chart below, so a knife quoted at 60 HRC or more needs its cycle named and its hardness confirmed by test.
Grinding3/5Like other vanadium-rich powder-metallurgy steels, MagnaCut is moderately demanding to grind because of hard vanadium and niobium carbides. Expect belt wear similar to or slightly higher than S35VN; ceramic or high-quality zirconia belts are recommended for stock removal.3/5One of the easier premium powder-metallurgy steels to sharpen for its performance level, though still slower to grind than basic stainless steels.A draw on the evidence; neither steel has a standardized grindability test. Thomas relies on maker reports for MagnaCut: Matt Gregory and Shawn Houston found it grinds easier than S35VN or S45VN, and easier than CPM-154 until about 240 grit, where its vanadium and niobium carbides show. Uddeholm lists Elmax's polishability as excellent. Crucible names SG-type alumina or CBN as the best grinding-wheel abrasives for its CPM steels.
Gloved hands draw a knife edge across a diamond plate held in a black bench holder, with a bowl of water nearby.

Best use

Which one goes on your bench

MagnaCut

Choose MagnaCut for hard-use and outdoor knives, thin kitchen blades and wet or salty use, because its toughness lets you grind a thinner edge and it rusts least.

Open the MagnaCut reference

Elmax

Choose Elmax when you want the longest slicing life at equal hardness and you or your heat-treat service already run a tested Elmax recipe.

Open the Elmax reference
Same grinder, same belts — the steel is the variable.

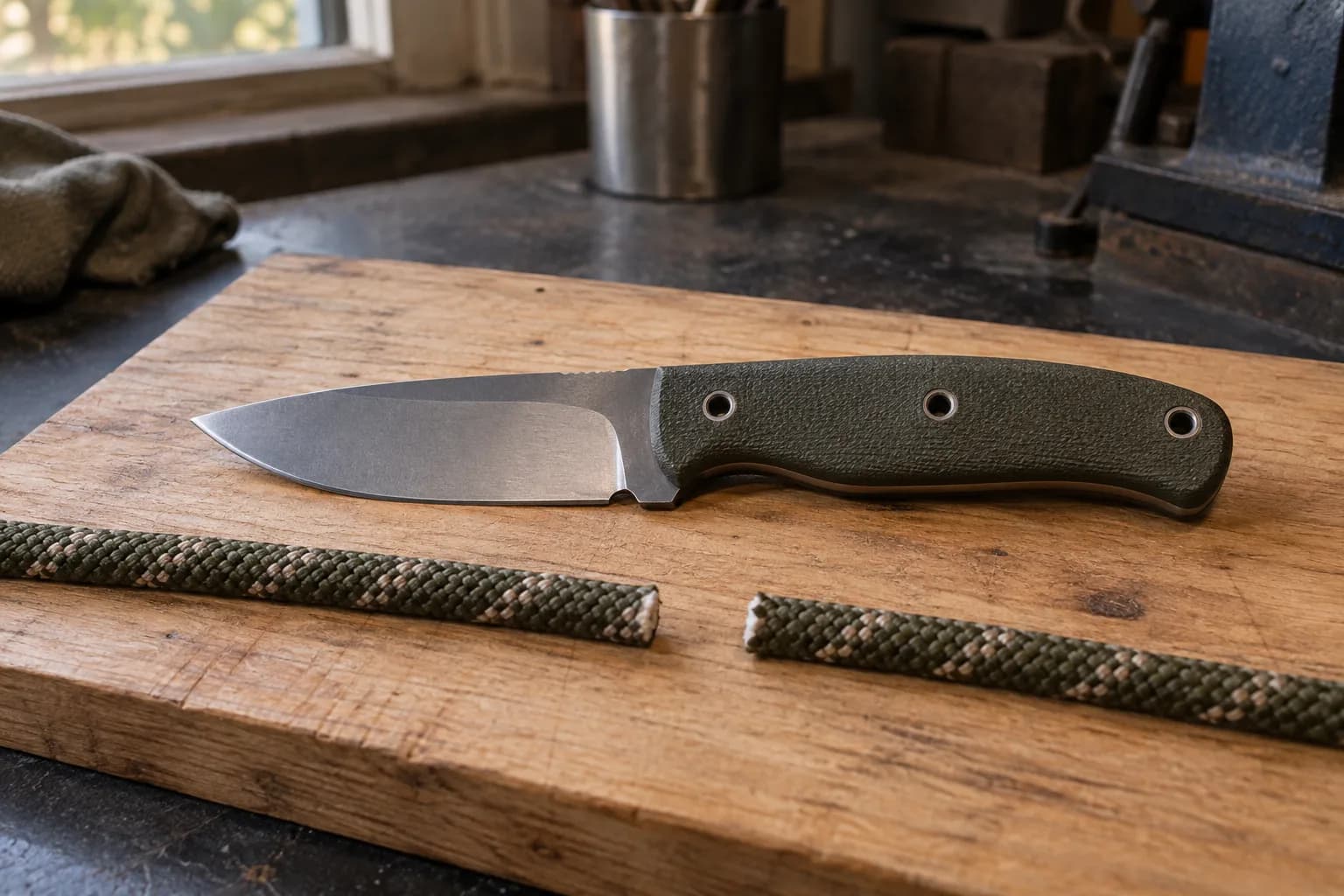

Drop-point fixed knife with green textured handle lying on a wooden board beside two cut ends of braided cord.

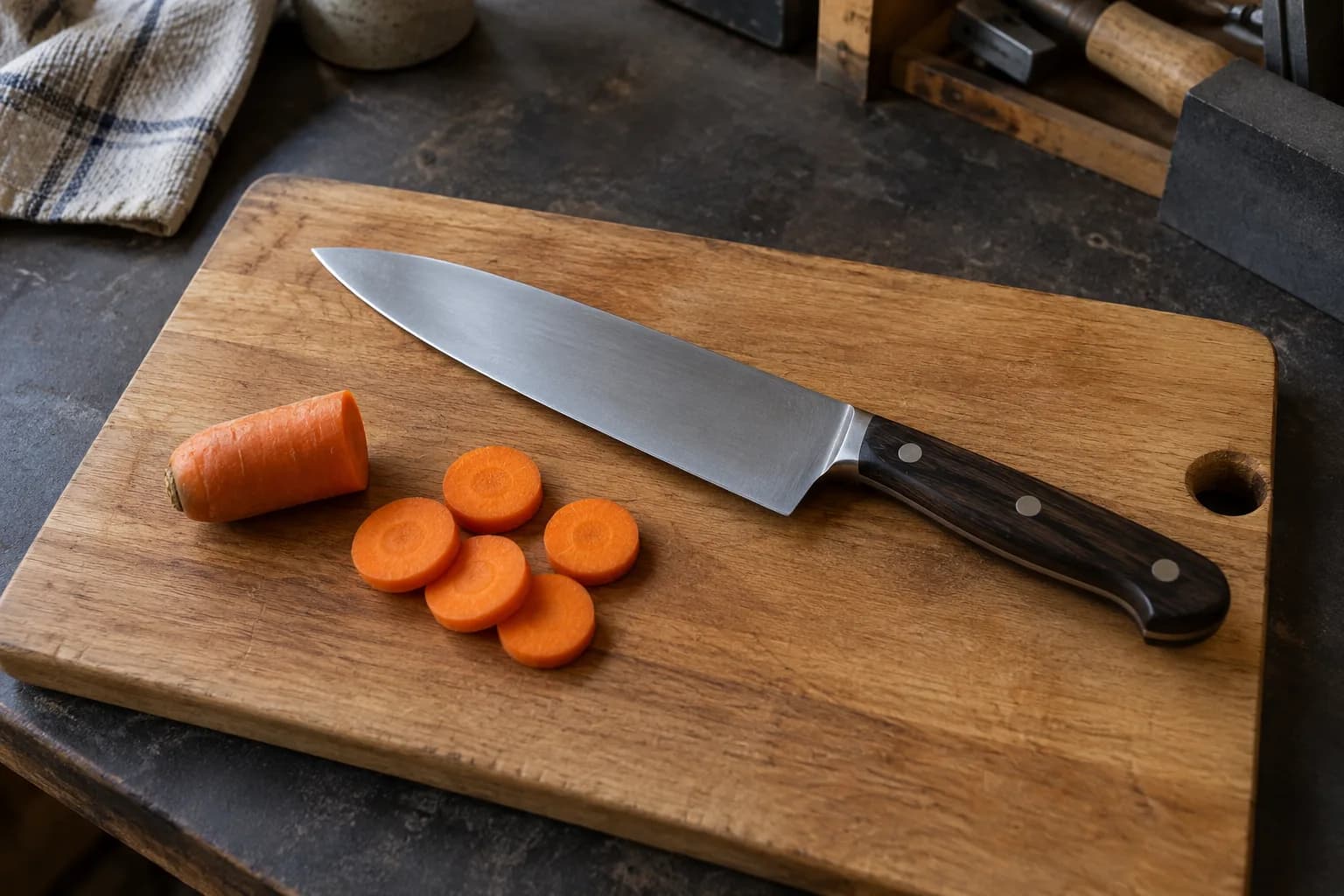

Chef knife with dark riveted handle lying on a wooden board beside a carrot stub and five cut carrot rounds.

The long answer

Why the difference exists

MagnaCut and Elmax are both premium stainless steels that consistently show up on shortlists for high-end knives, and on paper they’re closer to each other than either is to most other steels on this site. Here’s where the real differences actually show up.

The numbers, side by side

Every figure on this page has a named source. Crucible and Uddeholm numbers come from the manufacturers' datasheets. The 0 to 10 ratings, the saltwater tests and the CATRA chart are Larrin Thomas's at Knife Steel Nerds. Thomas designed MagnaCut and the Crucible sheet is the maker's own, so read the MagnaCut column with that in mind. The 1 to 5 scores in the table above are this site's shorthand, not Thomas's scale. MagnaCut figures are for the original Crucible-made steel; the question about Crucible below explains the update.

MeasureMagnaCutElmax
Carbon and chromium, % by weight1.15 C, 10.7 Cr1.7 C, 18.0 Cr
Chromium carbide in the hardened steelNone (Crucible)A large share of its carbide (Thomas)
Toughness rating, 0 to 10 (Thomas, about 59 to 62 HRC)74
Edge retention rating, 0 to 10 (Thomas)55.5
Corrosion rating, 0 to 10 (Thomas)9.58
1% saltwater spray, 72 hours (Thomas)No rustRust spots
Austenitize, target (range)2050°F (1950–2200°F)1980°F (1920–2010°F)
Temper2 × 2 hours at 350°F2 × 2 hours minimum, 480°F or higher preferred
Hardness from the maker's recipe61.5 HRC (plate or oil quench), 62 HRC (dry ice or liquid nitrogen); aim 60–63 HRC56–58 HRC at the 480°F and 980°F tempers (60–61 HRC as quenched, before tempering); a cryogenic treatment, which Uddeholm permits, adds 1–2 HRC (about 57–60 HRC by our sum, not an Uddeholm table value)

Questions makers ask

Is MagnaCut really tougher than Elmax, and by how much?

Yes. Thomas rates MagnaCut 7 out of 10 for toughness and Elmax 4, both at roughly 59 to 62 HRC. Crucible's own Charpy table lists MagnaCut at 38 ft-lbs at 62.5 HRC and 30 ft-lbs at 64 HRC. Elmax is not in that table, but the powder stainless steels that are, CPM S35VN at 25 ft-lbs, CPM S90V at 17 and CPM 20CV at 15, all sit below MagnaCut. Thomas explains the gap: early high-chromium powder steels such as Elmax have a coarse structure because a large share of their carbide is chromium carbide, and MagnaCut has none. He adds that toughness works on a log scale, so going from 5 to 10 ft-lbs is about the same gain as going from 10 to 20.

In practice that means MagnaCut can carry a thinner edge before it chips. Crucible's sheet says the same in its own words: fine cutting knives can have thinner edges with less risk of chipping, and the steel is especially good for bigger blades.

Does Elmax hold an edge longer?

By a modest margin at the same hardness. Thomas rates Elmax 5.5 and MagnaCut 5 for edge retention. In his CATRA chart, where every steel is sharpened the same way, at the same edge angle, and cuts abrasive cards, Elmax at about 61 HRC sits above MagnaCut at the same hardness. MagnaCut can be run harder: Crucible's aim range is 60 to 63 HRC and its CATRA table lists 135% of 440C at 62.5 HRC, a little above S35VN at 130%. Thomas's own CATRA tests found MagnaCut matches S35VN. In rope cutting that he reports, a 62.5 HRC MagnaCut knife made 45 cuts against 40 for S30V at 61 HRC and 60 for S90V.

Wear is only one way an edge ends. Thomas points out that edges also fail by deformation, chipping and corrosion, which is where MagnaCut's toughness and rust resistance pay back. He calls MagnaCut very well suited to the 62 to 64 HRC range of Japanese kitchen knives, and says high toughness is what allows thinner, more acute edges without chipping.

Elmax has 18% chromium and MagnaCut 10.7%. Why does MagnaCut rust less?

What protects a blade is chromium dissolved in the steel, not the chromium on the datasheet. Elmax's high carbon ties a large share of its chromium up in carbides, and Thomas notes that carbides leave chromium-poor zones around them. Crucible's MagnaCut design eliminates chromium carbide, with niobium and vanadium carbides taking the carbon instead, so its 10.7% stays in solution. In Thomas's 72-hour 1% saltwater spray test MagnaCut showed no rust and Elmax showed rust spots. His ratings are 9.5 against 8.

Neither is in the class Thomas calls saltwater steels, LC200N and Vanax, both rated 10. In a harsher 3.5% saltwater retest he found MagnaCut on the border: fine for occasional saltwater exposure, not for a diving knife. Crucible adds one heat-treat caution, that tempering MagnaCut above 750°F reduces its corrosion resistance.

Which one is easier to heat treat?

MagnaCut, on the published recipes. Crucible's: preheat to 1550–1600°F, austenitize at 2050°F, quench to below 125°F (plate, air or positive-pressure gas; or salt or interrupted oil to about 1000°F, then air), then temper twice for at least 2 hours at 350°F. A cold treatment is optional. The aim is 60 to 63 HRC. Crucible's table lists 61.5 HRC from this recipe after a plate or oil quench and 62 HRC with dry ice or liquid nitrogen, and Thomas reports around 61 to 62.5 HRC. Harder results use a different cycle: with a 300°F temper the same table gives 62.5 and 63 HRC, and its 64 to 65 HRC cells all use a 2100 to 2200°F austenitize and a cold treatment, mostly with a 300°F temper (64 HRC at 2200°F also appears with a 350°F temper and liquid nitrogen or dry ice).

Uddeholm's Elmax heat treatment guideline (revised August 2024): preheat in steps at 1200°F and 1550°F, austenitize at 1920 to 2010°F (1980°F normally) for at least 30 minutes and at most 1 hour, quench in positive-pressure gas, salt or oil, and temper at least twice for a minimum of 2 hours. Uddeholm's datasheet prefers tempering at 480°F (250°C) or higher and allows 350°F only in exceptional cases, for small simple parts where toughness matters less. The guideline lists 56 to 58 HRC for the 480°F and 980°F tempers and expects a cryogenic treatment to add 1 to 2 HRC; the data sheet lists 60 HRC before tempering after a 1920°F austenitize and 61 HRC after 1980°F, which are as-quenched figures, not finished hardness. Nothing in Uddeholm's tables goes above 58 HRC after tempering, but the cold treatment is part of the guideline: by our arithmetic, adding its 1 to 2 HRC gives about 57 to 60 HRC for a cold-treated Elmax, a sum Uddeholm does not itself print. Without a cold treatment, the data sheet's tempering graph reads about 58 to 59 HRC at a 390°F temper and about 60 near 210°F (2010°F austenitize, small samples); the first is below the 480°F Uddeholm prefers (it allows 350°F only in exceptional cases), and the second is below the 350°F minimum its data sheet gives. We have no cycle to cite for the Elmax at about 61 HRC in Thomas's CATRA chart above, so for a knife quoted at 60 HRC or more, ask which cycle was used and confirm the hardness with a test.

Two documented reasons MagnaCut is called forgiving. Crucible allows austenitizing anywhere from 1950 to 2200°F (Thomas used hold times from 30 minutes at 1950°F down to 5 minutes at 2200°F), and Thomas found hardness nearly the same with or without a cold treatment up to 2050°F, which means retained austenite stays low. A vacuum furnace with a 2 bar gas quench came out only 0.5 to 1 HRC under plate or oil quenching, so a heat-treat service gets close to what you get at home. Thomas's January 2026 tests of Erasteel-made MagnaCut found better toughness at a 2150°F austenitize, about 2.5 HRC harder at the same toughness; Crucible's 2050°F stays the datasheet recommendation. For the stages themselves see the complete heat treating guide and plate quenching explained.

Which one grinds and sharpens easier?

Call it even until someone tests them head to head; neither has a standardized grindability test. For MagnaCut, Thomas relies on knifemaker reports. Matt Gregory and Shawn Houston found it grinds and finishes easier than S35VN or S45VN. Gregory found it easier than CPM-154 until about 240 grit, where the vanadium and niobium carbides start to show. Devin Thomas sharpened it well even on aluminum-oxide Shapton Glass stones. Crucible rates annealed MagnaCut easier to machine than CPM 20CV and S30V. For Elmax, Uddeholm lists excellent polishability among its characteristics. Crucible names SG-type alumina or CBN as the best-performing grinding-wheel abrasives on its CPM steels.

The Torus guides cover belts and technique for each: grinding and sharpening MagnaCut and grinding and sharpening Elmax.

Is MagnaCut still being made now that Crucible is gone?

Yes. Thomas reported Crucible's bankruptcy on January 6, 2025. By January 12, 2026 he wrote that Crucible no longer exists, that Erasteel bought its trademarks, and that Niagara Specialty Metals kept the exclusive right to buy MagnaCut ingots and sell the steel to knifemakers and knife companies. Erasteel-made MagnaCut showed no rust spots in his 1% saltwater test, a very similar hardening response, and significantly higher toughness than the Crucible original. He concluded it matches or exceeds the Crucible version and says he will keep monitoring it. Ask your supplier which mill melted the bar you are buying.

What if I want Elmax's wear resistance with MagnaCut's rust resistance?

Thomas's answer is MagnaMax, a higher-carbon relative of MagnaCut. In his January 19, 2026 article he put its carbide volume at about 16%, roughly double MagnaCut's, with edge retention matching K390 and Vanadis 8, toughness similar to S35VN, and no rust spots in his 1% saltwater test. He expected wide release in the second quarter of 2026 and said heat treatment recommendations were still being worked out, so check Niagara's current stock and datasheet before designing around it.

Which one to pick

  • MagnaCut if the knife will be hit, twisted, used wet or ground thin: toughness 7 against 4, corrosion 9.5 against 8, and a recipe that lands at 61 to 62.5 HRC.
  • Elmax if you want the extra slicing life at equal hardness, already run a tested Elmax recipe or use a heat-treat service that does, and the knife will not see lateral stress.
  • Neither if you need saltwater duty (look at LC200N or Vanax) or much higher wear resistance (S90V is rated 9 for edge retention, and MagnaMax is built for it).

More matchups: MagnaCut vs CPM 20CV, CPM 20CV vs Elmax, Elmax vs CPM S35VN and MagnaCut vs LC200N. Full references: MagnaCut and Elmax.

Sources: Crucible Industries, CPM MagnaCut data sheet, as published by Niagara Specialty Metals (nsm-ny.com/cpm-magnacut-data-sheet). Uddeholm Elmax SuperClean data sheet, edition 10, March 2023 (uddeholm.com) and Uddeholm Elmax Heat Treatment Guidelines, revised August 15, 2024 (uddeholm.com). Larrin Thomas, Knife Steel Nerds: CPM MagnaCut, The Next Breakthrough in Knife Steel (March 25, 2021); Knife Steels Rated by a Metallurgist (October 19, 2021, updated June 16, 2025); Crucible Steel is Bankrupt! What is Next for MagnaCut? (January 6, 2025); Testing Erasteel MagnaCut vs Crucible Original (January 12, 2026); MagnaMax Is Here (January 19, 2026). Crucible and Uddeholm figures are manufacturer data; Thomas's tests are his own, and he designed MagnaCut.
