Troubleshooting

Grinder Walking or Shifting During Use

Work back from what it is doing to what caused it, then to the fix that addresses the cause. Nothing here needs a sign-up.

Abrasives and belt grinding in a working knife shop
If a symptom appears mid-job, put the work down and check it before continuing.

The flow

Work it in this order

Causes first, then the quick checks, the fix, prevention and the stop-work point.

  1. Likely causes

    • The grinder isn't bolted down to a bench or stand, just resting on its own weight and rubber feet
    • Uneven bench or floor surface causing the base to rock instead of sitting flat
    • Grinding pressure or angle being applied in a direction that works against a lightweight or narrow base
    • A stand or bench that itself isn't heavy or rigid enough to resist the forces of grinding

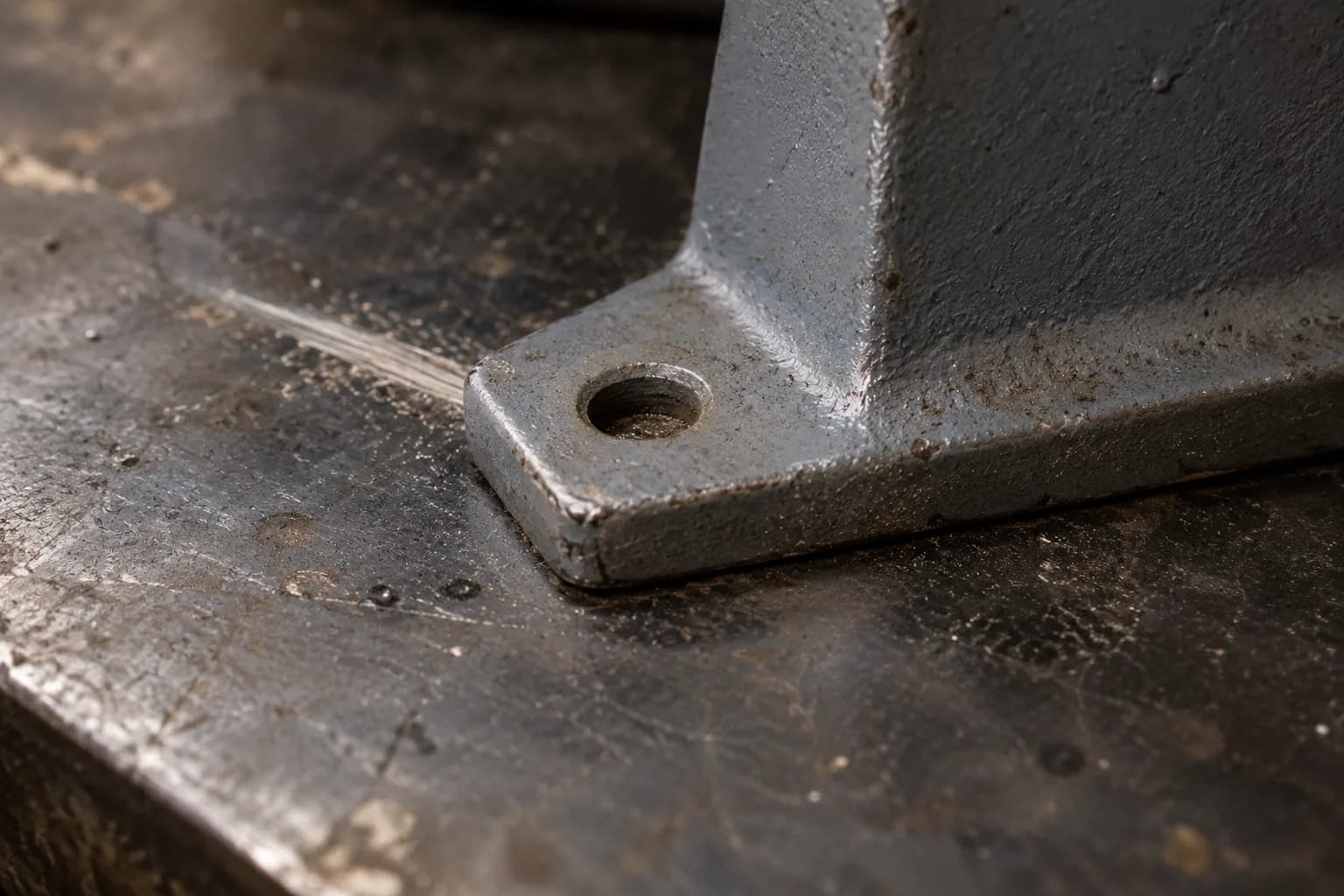

Gray cast grinder mounting foot with an empty bolt hole resting on a worn steel bench, a short scrape ending at its corner

  1. Quick checks

    • Check whether the grinder is actually bolted or clamped to its surface, or just sitting on it
    • Set a level across the mounting surface to check for unevenness
    • Watch which direction the machine shifts, toward you, away, or sideways, since that points to where the pressure is unbalanced

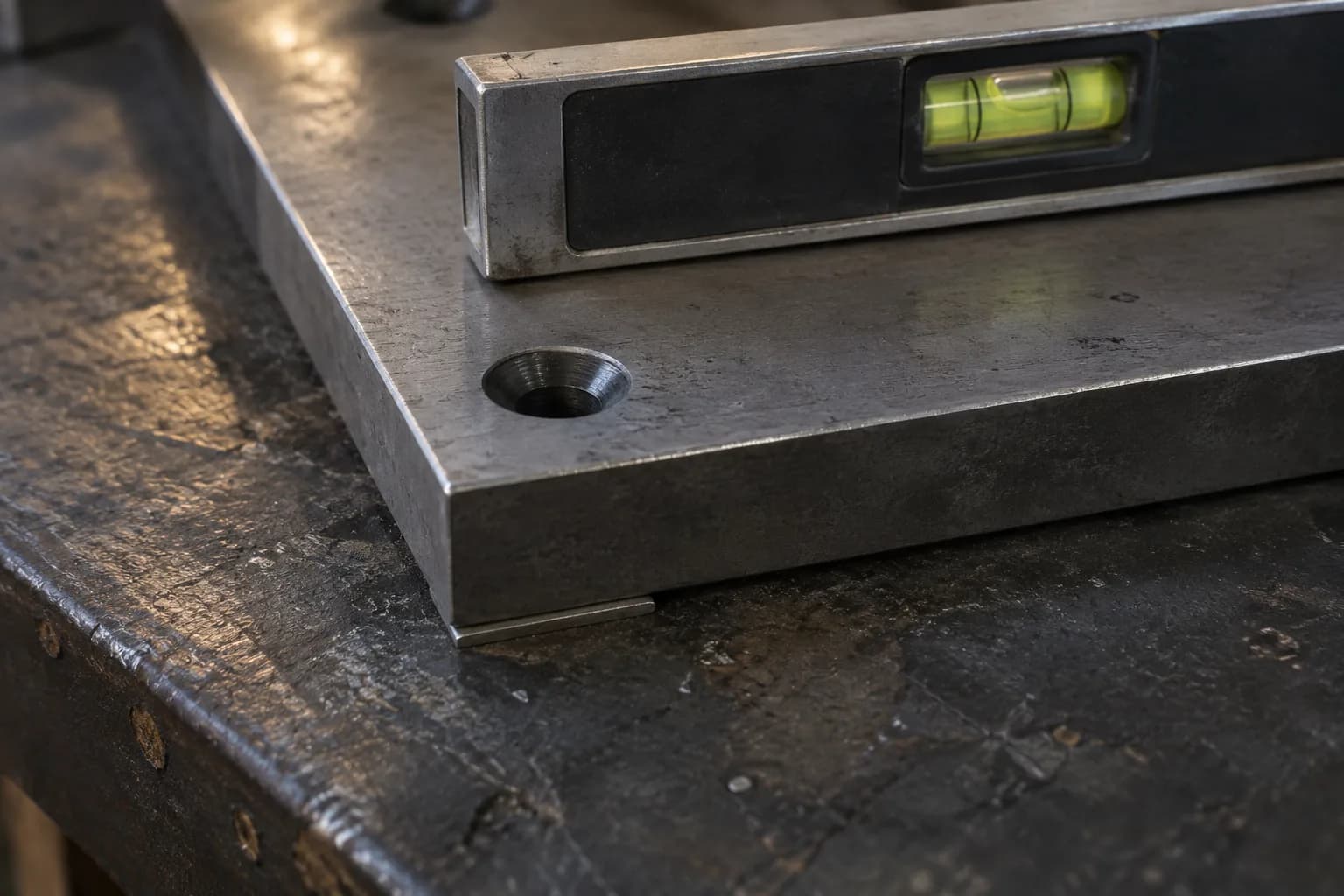

Thin steel shim under one corner of a thick steel plate, with a spirit level resting on the plate

  1. Fixes

    • Bolt the grinder down through its base mounting holes to a bench or dedicated stand rather than relying on friction alone
    • Shim or level the mounting surface if it's uneven
    • Add weight to a lightweight stand (sandbags, a shelf with stored material) if bolting down isn't an option

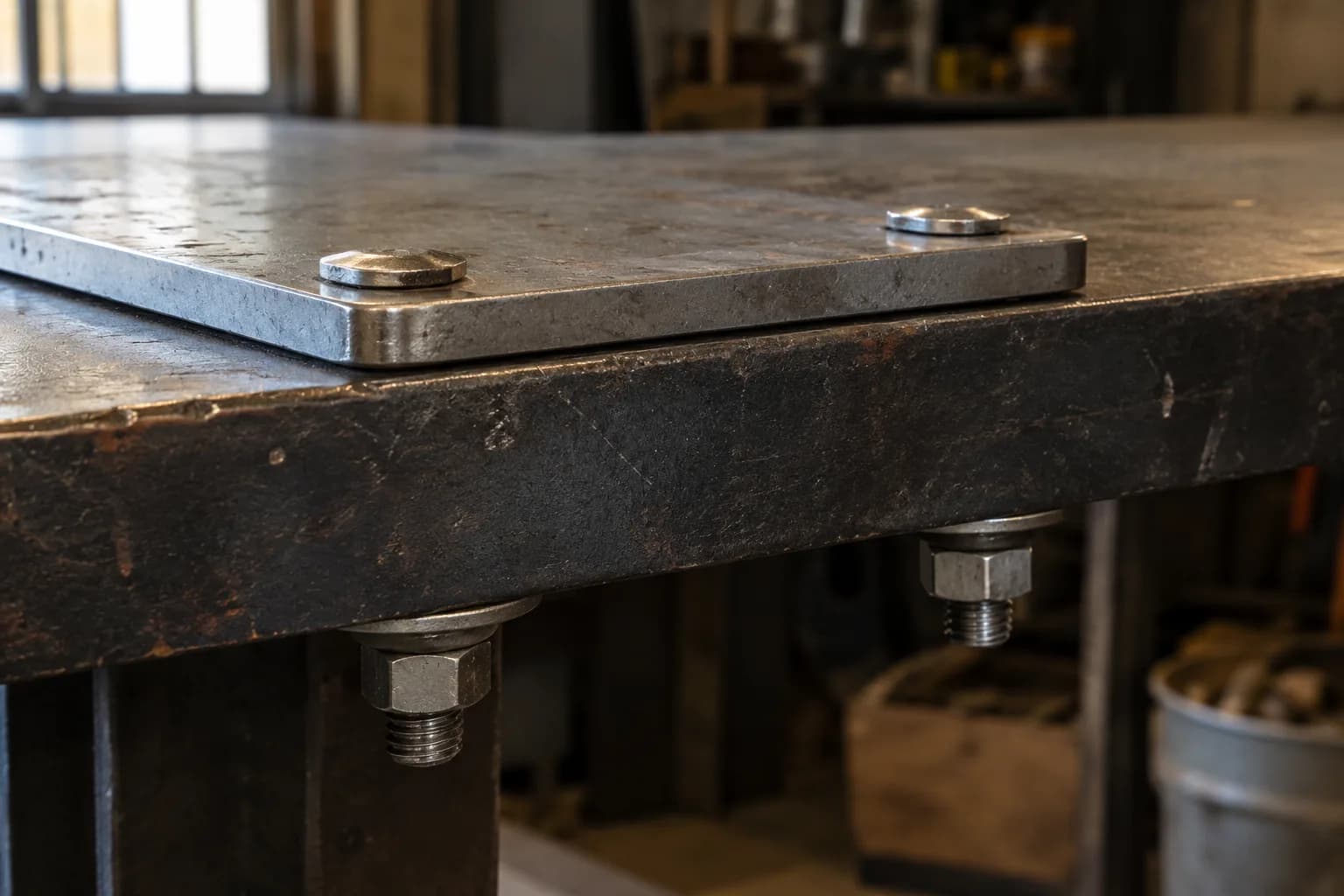

Steel plate bolted to a heavy steel bench, with washers and hex nuts showing under the bench edge

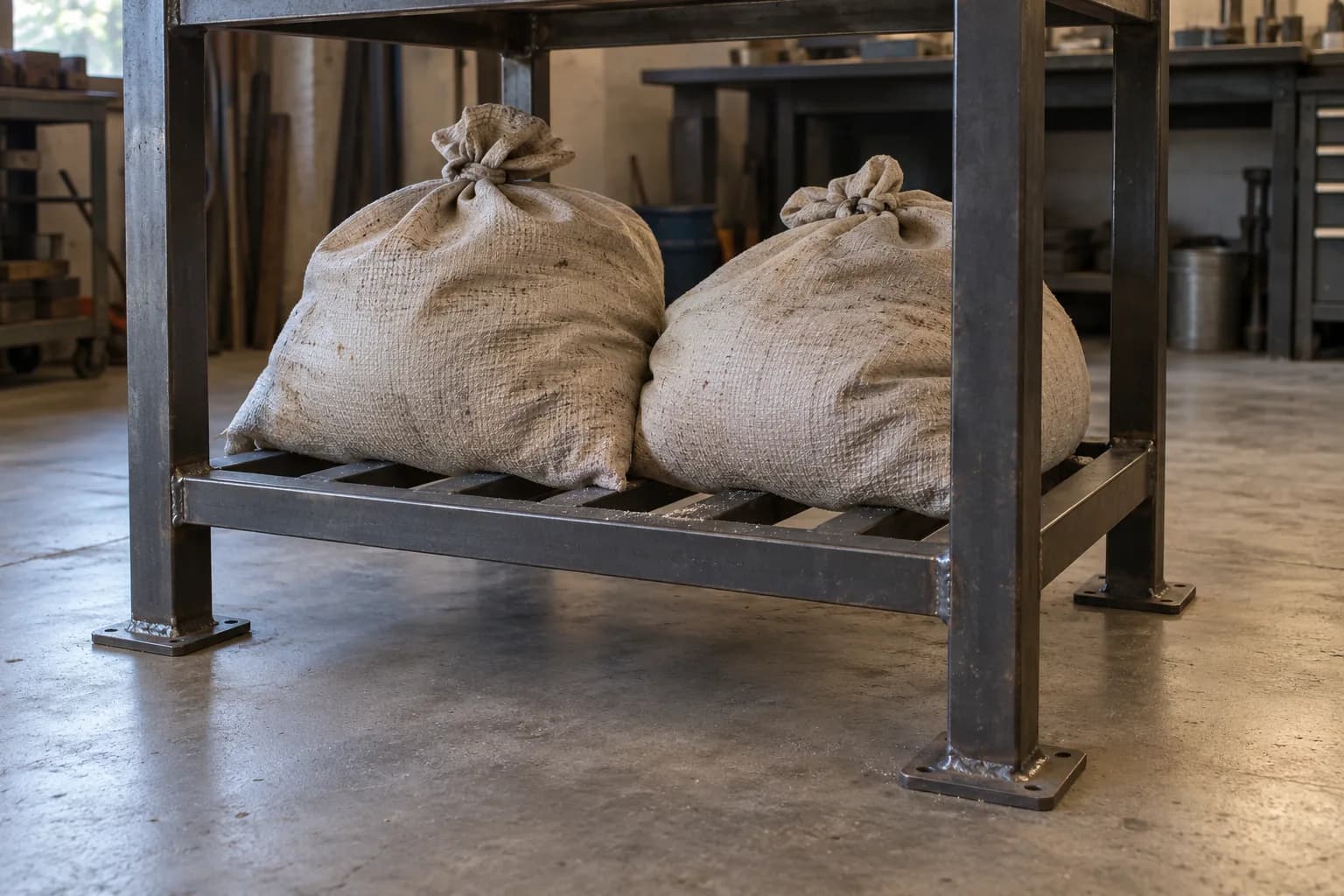

Two dusty, tied burlap sandbags resting on the low slatted shelf of a welded steel shop stand on a concrete floor.

  1. Prevention

    • Treat bolting the grinder down as a one-time setup step done before the first real use, not something to get to later
    • Recheck mounting hardware periodically, vibration over time can work bolts loose
    • Build or buy a stand rated for the weight and forces a 2x72 grinder actually produces under load

  2. When to stop

    If the grinder shifts enough that your hands or the workpiece could contact the belt unexpectedly, stop immediately and secure the machine before continuing, an unsecured grinder is a real safety hazard, not just an inconvenience.
