XL 4×14 Quench Vise, Quench Master 2500

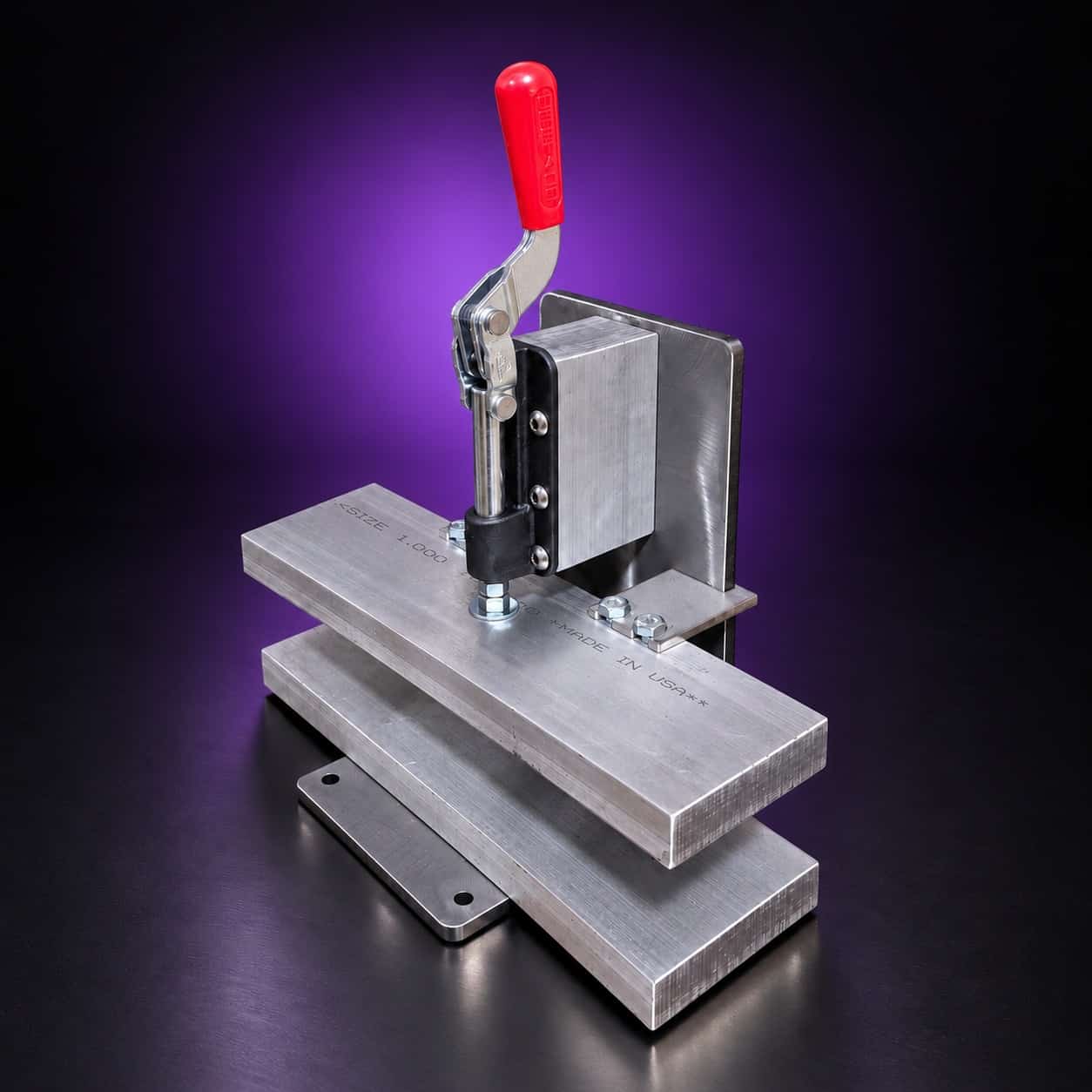

  • Quench vise with the red toggle clamp raised (open) over two thick aluminum plates, on black with a purple glow

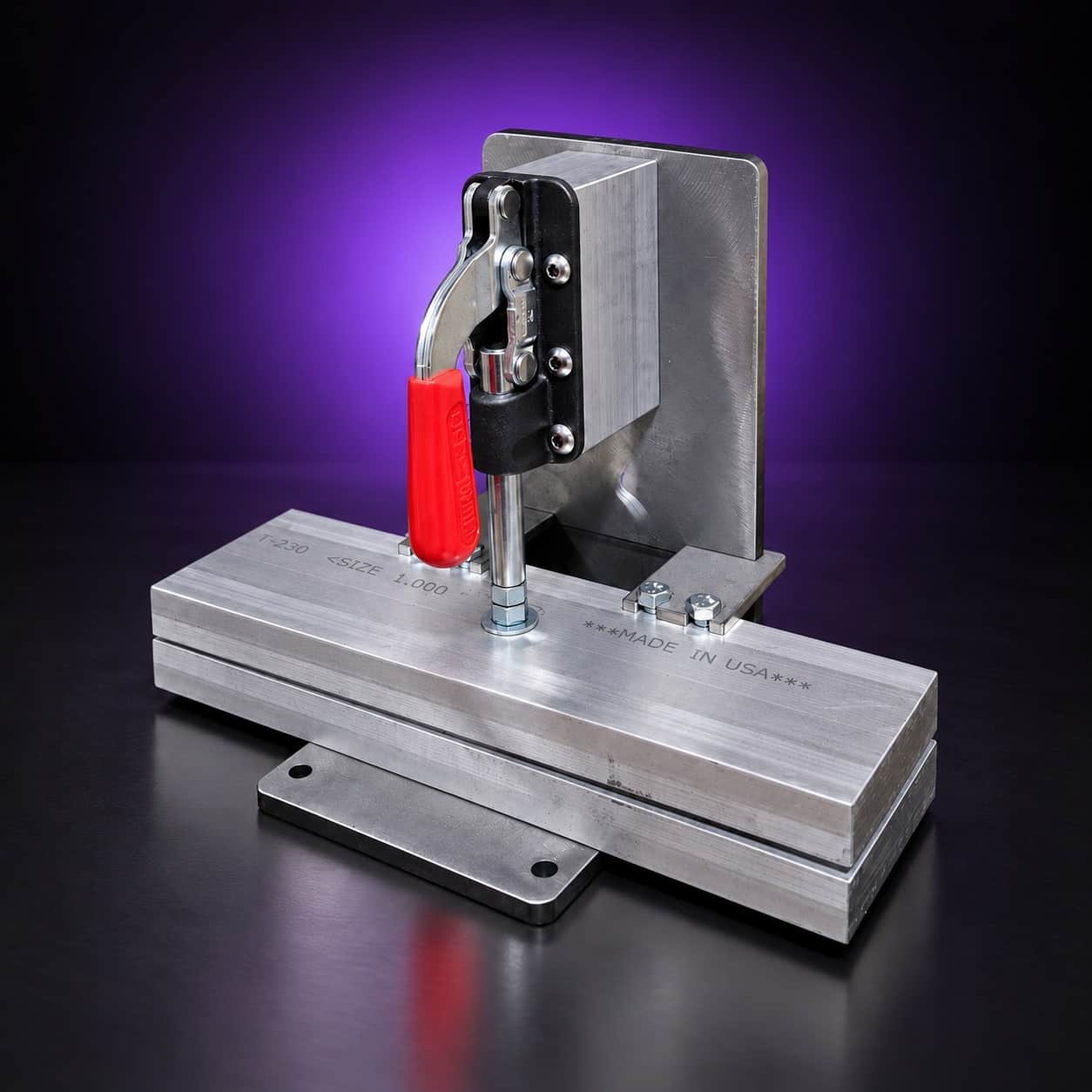

  • Quench vise with the red toggle clamp lowered (closed) on the aluminum plates, front view, on black with a purple glow

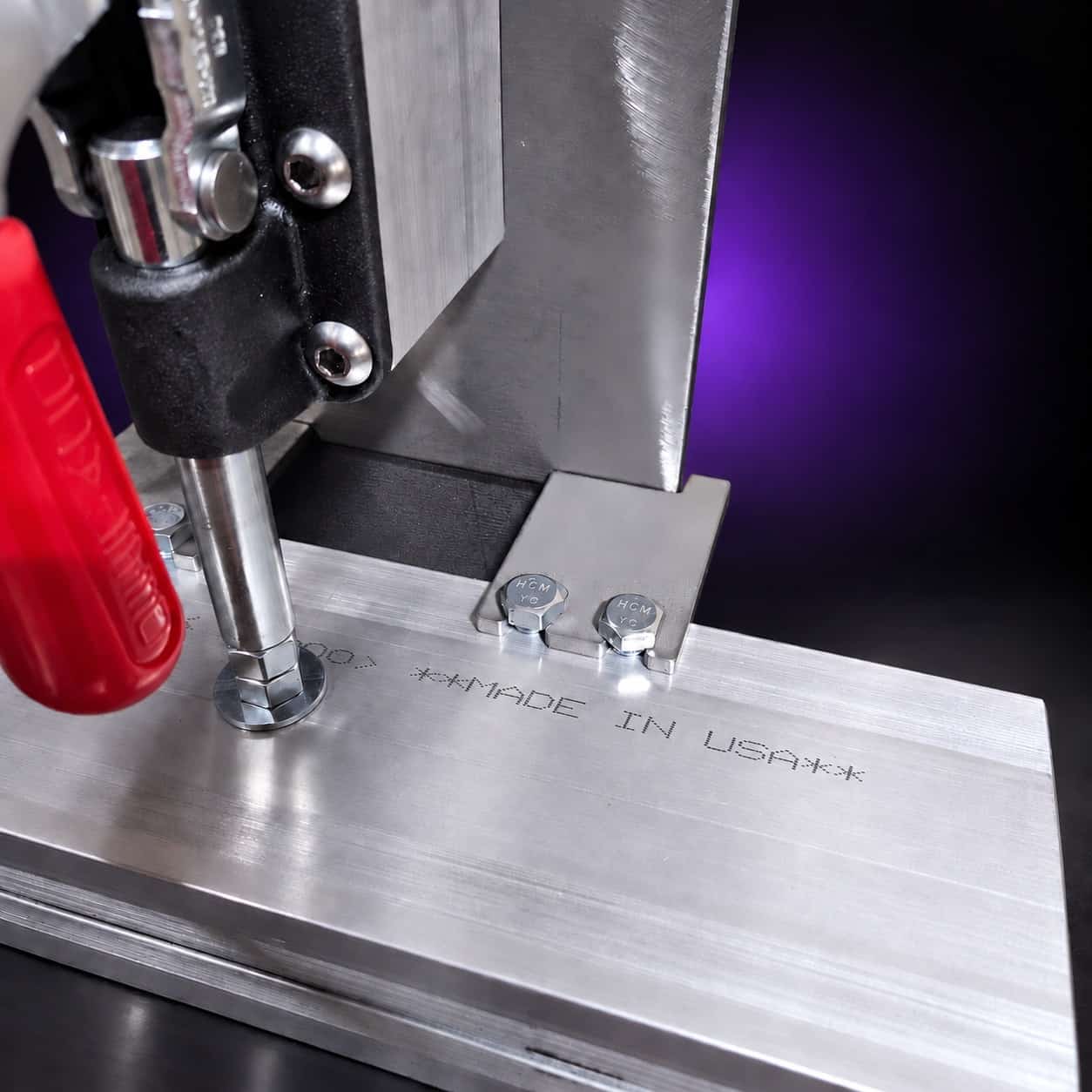

  • Quench vise toggle clamp, mounting tabs and Made in USA marking on the top plate, close-up, on black with a purple glow

3 shop photos · swipe or pick a thumbnail

Starts at$395

Only 3 left on the shelfships in 7–10 business days

A sliding-clamp quench vise with a cam-action lock that exerts up to 2,500 pounds of clamping force across 1-inch thick, 4×14-inch aluminum quench plates. Clamp, quench, and use it as a fixture for warm straightening.

Build your setup

Configure your Quench Master 2500

Plate Length

Quantity

$395 each

Your total
$395
  • Ships in 7–10 business days
  • 2-year warranty
  • Secure checkout by Stripe
5.0 on Google16 reviews (opens in a new tab)Returns reviewed within two weeks of arrival

  • Shipping

    $95 a grinder, $145 with a motor, $35 the first accessory — capped at $145. Tracking number emailed the day it ships.

  • Free local pickup

    1741 Industrial Drive Unit #8, Sterling, IL 61081. Email me to set a time, Mon–Fri 9:00am–4:00pm Central.

  • 2-year warranty

    Covers non-wear parts against defects in materials and workmanship under normal use.

  • Questions before you buy?

    Call or text 1-779-372-0262 or email me. You get the person who built it.

Google reviews

What owners say

Straight from Google, word for word. The ones about this kind of part come first.

5.0 on Google16 reviews (opens in a new tab)
  • 5 out of 5 stars

    I decided to use Taurus CNC because almost everything is made from high quality aluminum.…

    Read the whole review by victor schmidtShow the short version of victor schmidt’s review

    Super Happy for deciding to purchase my first professional quality 2 x 72 belt grinder from Torus CNC. The owner Rich Answered all my questions and fast and he stayed in contact with me assuring everything went smoothly. I decided to use Taurus CNC because almost everything is made from high quality aluminum. That means no rust! I’m using a misting system that gets water everywhere. The set up took 20 minutes literally. Everything came preassembled and very well packaged. If you’re thinking about buying a new professional belt grinder for knife making or custom fab work this is the spot you won’t be disappointed.

    victor schmidtGoogle review by victor schmidt (opens in a new tab)
  • 5 out of 5 stars

    Despite being lesser known than some, the M90’s fit and finish are top-notch, and the grinder represents an exceptional value.…

    Read the whole review by David WileyShow the short version of David Wiley’s review

    I purchased the M90 about three weeks ago and finally got some time to put it to use. Throughout the buying process, Rich stayed in touch, answering questions and providing updates. The grinder even arrived a little sooner than expected; well packed and ready for use right out of the box.

    Quality grinders aren’t cheap, and if you’re in the market for a 2x72, you’ve probably researched all the main contenders. Despite being lesser known than some, the M90’s fit and finish are top-notch, and the grinder represents an exceptional value.

    Rich was a pleasure to do business with, and I have absolutely no regrets purchasing the M90. Highly recommended. Five well-deserved stars.

    David WileyGoogle review by David Wiley (opens in a new tab)
  • 5 out of 5 stars

    The product is way beyond what i expected. Its manufactured to the highest standards. Fit and finish is awesome.…

    Read the whole review by John CarewShow the short version of John Carew’s review

    I found Torus by chance, i was in need of a new grinder, and i always like supporting small businesses. I live in Canada, and the grinder i wanted wasnt available, and i stumbled on Torus, SO GLAD I DID. The product is way beyond what i expected. Its manufactured to the highest standards. Fit and finish is awesome. Dealing with the owner, Rich was as easy as could be..answered my questions by email within hours. Shipped and protected well in transport. If you're in the market for a grinder, get a Torus cnc 2x72 from Rich.

    John CarewGoogle review by John Carew (opens in a new tab)

Why this one

Twenty-five hundred pounds of clamp.

Configure your Quench Master 2500

  • Up to 2,500 pounds of clamping force from a cam-action locking mechanism

  • Two 1 × 4 × 14-inch aluminum quench plates that pull heat out fast

  • Easy sliding clamp that closes on the blade in one motion

Quench vise with the red toggle clamp lowered (closed) on the aluminum plates, front view, on black with a purple glow
Quench vise with the red toggle clamp raised (open) over two thick aluminum plates, on black with a purple glow
Fourteen inches of jaw for the long stuff.

Why plates keep a blade flat

Two thick aluminum plates pull heat out of the blade while the clamp holds it flat; that is plate quenching, and it is what this vise is built for.

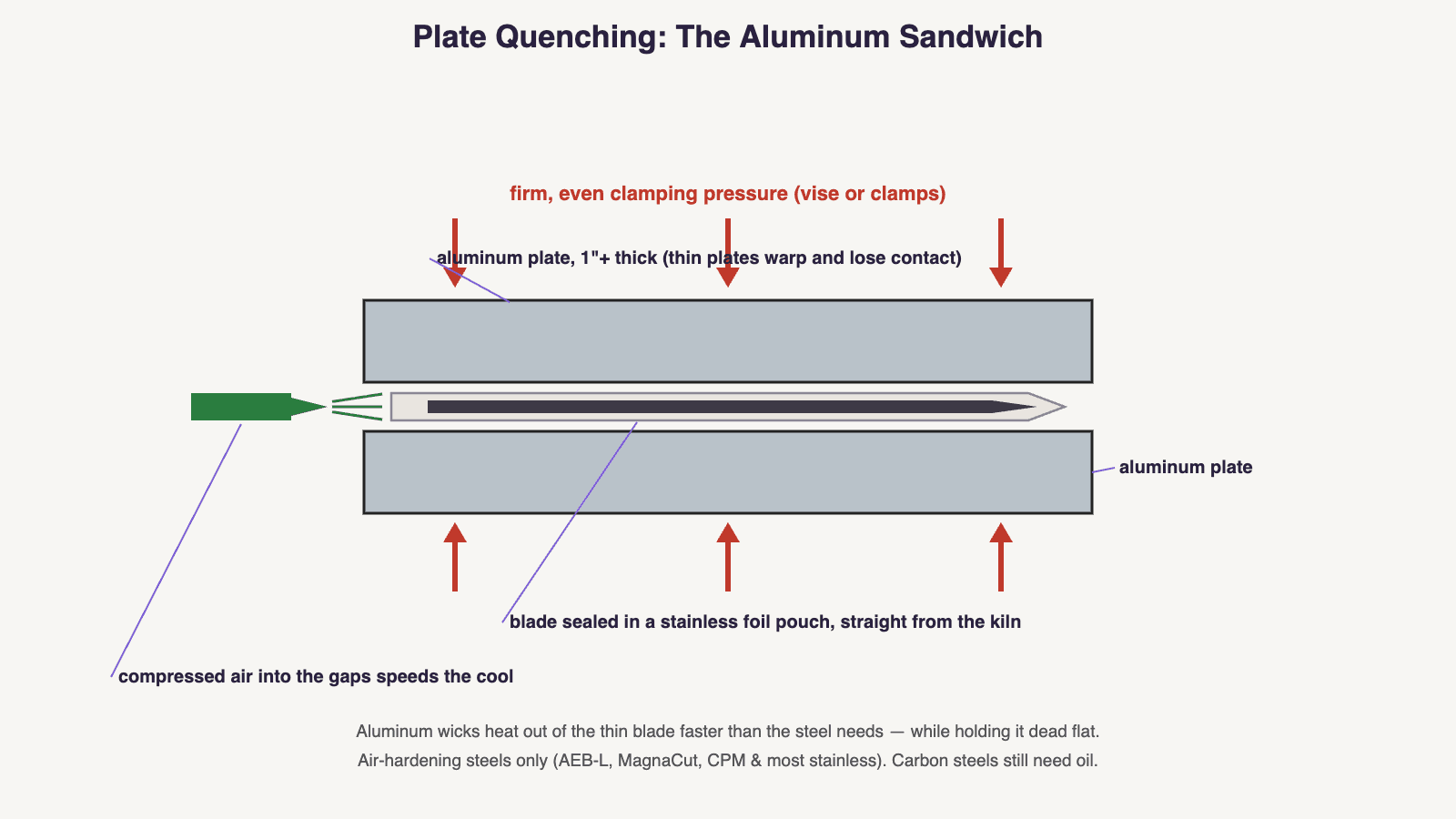

Plate Quenching: The Aluminum Sandwich

  • firm, even clamping pressure (vise or clamps)
  • aluminum plate, 1"+ thick (thin plates warp and lose contact)
  • aluminum plate
  • blade sealed in a stainless foil pouch, straight from the kiln
  • compressed air into the gaps speeds the cool

Aluminum wicks heat out of the thin blade faster than the steel needs — while holding it dead flat.

Air-hardening steels only (AEB-L, MagnaCut, CPM & most stainless). Carbon steels still need oil.

Plate quenching in section, from my ForgeBrain guide.

Who it's for

Built for the work you actually do

Makers heat treating stainless and thin kitchen blades, anyone fighting warps out of the quench, and shops that want one solid vise for knives up to about 14 inches.

What’s in the box

  • Quench Master 2500 vise with cam-action lock
  • Two 1 × 4 × 14-inch aluminum quench plates
Quench vise toggle clamp, mounting tabs and Made in USA marking on the top plate, close-up, on black with a purple glow

Specs

Product specifications and dimensions

Base price
$395 before options
Plate Length
14 inch plates · 20 inch plates
Availability
Only 3 left on the shelf
Lead time
Most orders ship in 7–10 business days from time of order
Ships from
1741 Industrial Drive Unit #8, Sterling, Illinois
Shop
Torus CNC — Sterling, Illinois, USA

Options

Choose and compare product options

Compare motor packages, attachments and finish choices before ordering.

Build your Quench Master 2500

Before you order

Shipping, warranty and returns

Read the full policy

  • Shipping and lead time

    In stock and usually ships from Sterling, Illinois in seven to ten business days from time of order, with a tracking number the day it goes out. A more detailed delivery estimate will be given when you order. Returns are case by case: contact me first, within two weeks of arrival. Approved returns carry a 25% restocking fee and the buyer covers insured return shipping. Ground shipping in the lower 48: $95 a grinder, $145 with a motor package, $75 a motor on its own, and $35 for the first accessory plus $15 each after. A grinder with a motor and any accessories is capped at $145.

  • Warranty

    I warranty the non-wear parts against defects in materials and workmanship under normal use. Motors and VFDs carry their manufacturer's warranty; contact me for guidance on the manufacturer's claim process.

  • Returns

    Returns are reviewed case by case and must be pre-approved within two weeks of arrival. The buyer covers insured return shipping, a 25% restocking fee applies, and original shipping is not refunded.

Straight answers

Questions I get about the Quench Master 2500

What blades does it fit?
Anything up to about 14 inches of blade: kitchen knives, hunters, bushcraft blades and most fixed blades. Choppers and swords are too long for it.
Why so much clamping force?
Because a thin blade wants to move as it hardens. Twenty-five hundred pounds of clamping force helps hold it flat through the quench and gives you a fixture to push a mild warp back while the steel is still hot.
Does it work for oil-quenched steel?
Plate quenching is for air-hardening stainless and similar steels. Simple carbon steels like 1084 still want oil; the vise is still handy for straightening right after the quench.
How fast does it ship?
It is in stock and usually ships from my shop in Sterling, Illinois in seven to ten business days from time of order. A more detailed delivery estimate will be given when you order.
Can I return it if it does not work for me?
Email me first, within two weeks of arrival. Returns are approved case by case, carry a 25% restocking fee, and you cover insured return shipping. If there is a workmanship problem, I will work with you to remedy it.
