Arms and Attachments

2×72 Adjustable Work Table Attachment 6×16

  • Adjustable work table on the tool arm, with its slotted bracket and two red cam levers, on black with a purple glow
  • Large aluminum contact wheel with black rubber rim and red belt, steel work table in front, on black with a purple glow

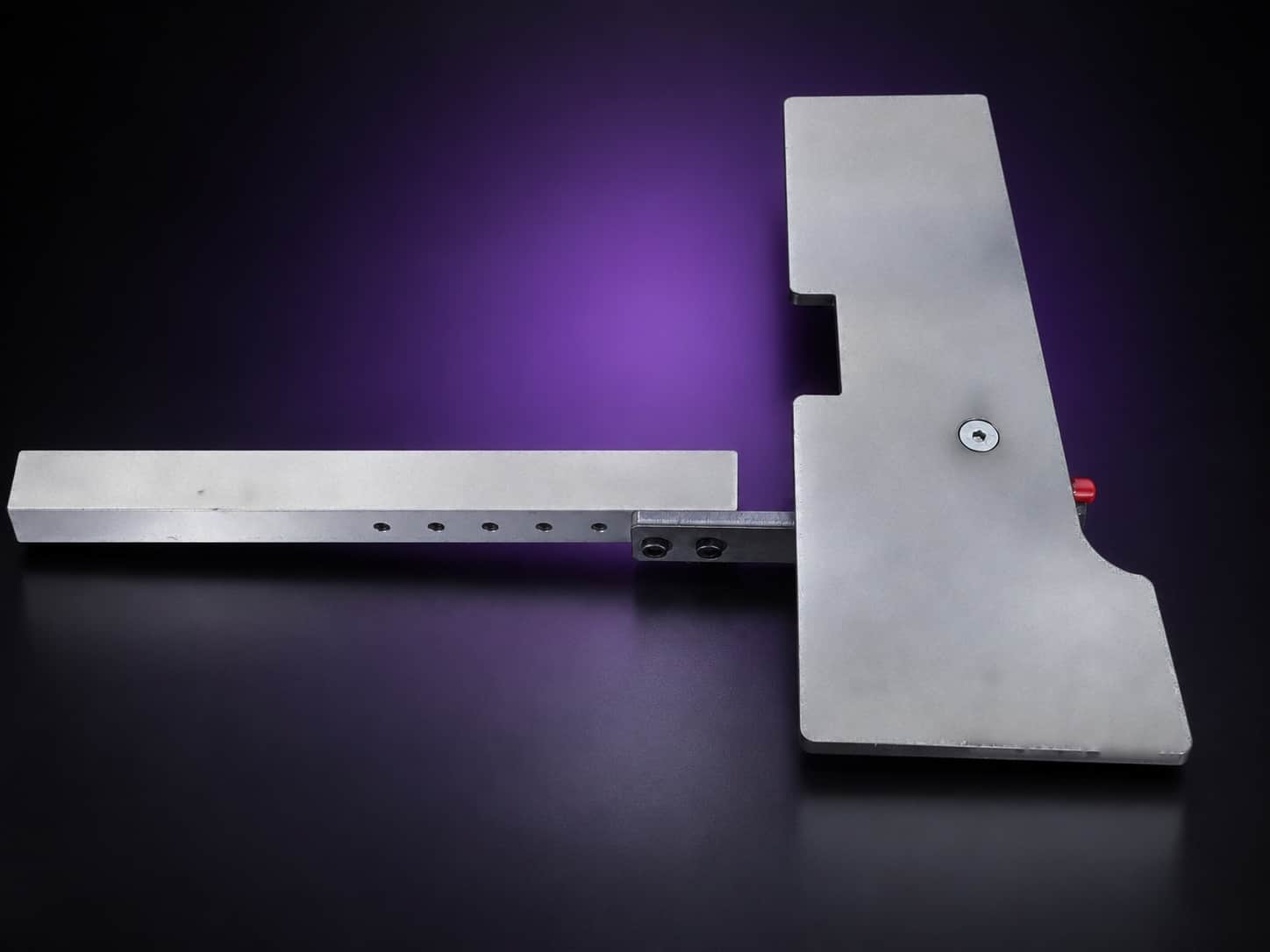

  • Steel work table plate on its drilled square aluminum arm bar, seen from above, on black with a purple glow

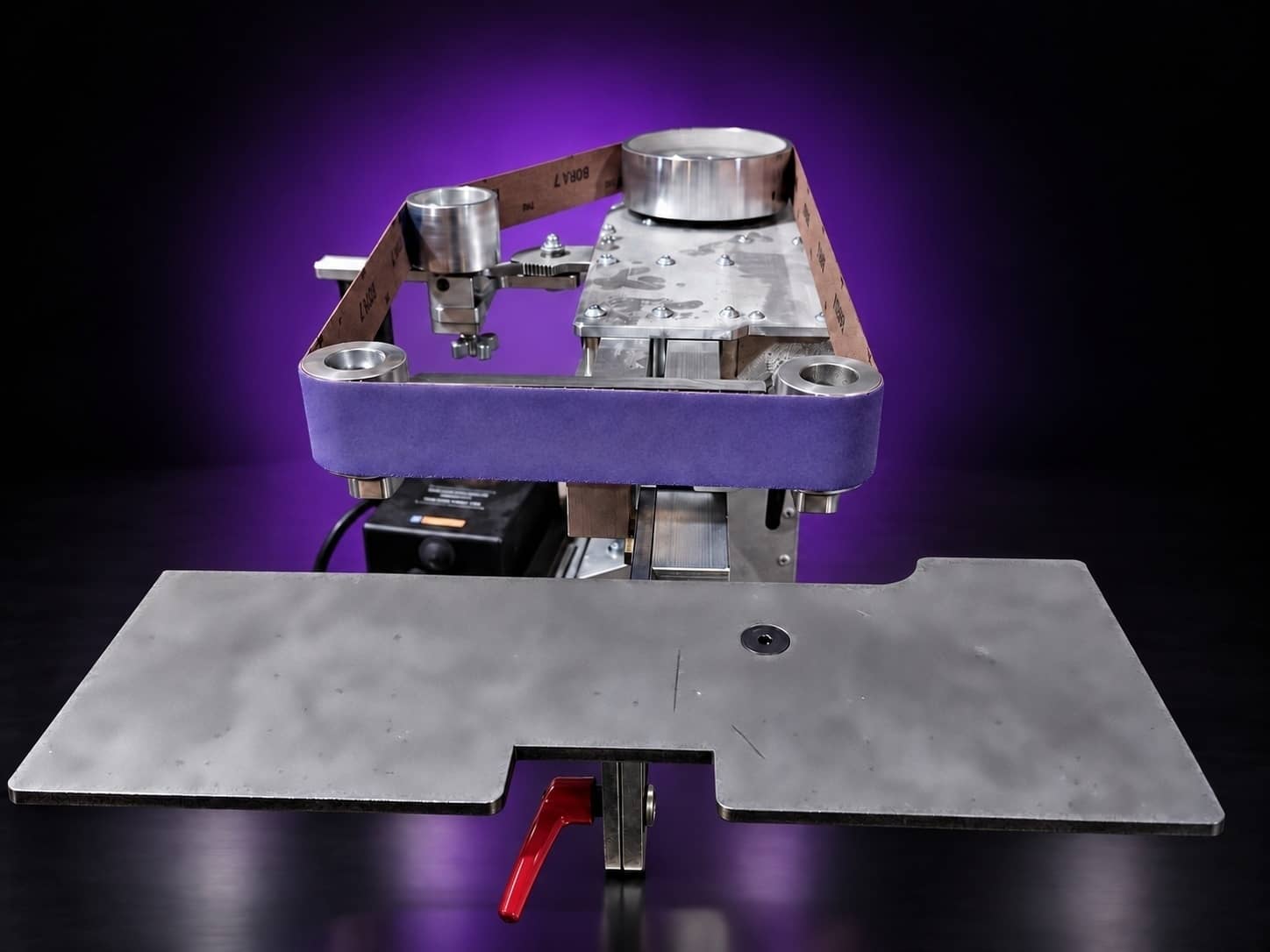

  • Steel work table in front of a grinder running a purple abrasive belt, seen from the table side, on black with a purple glow

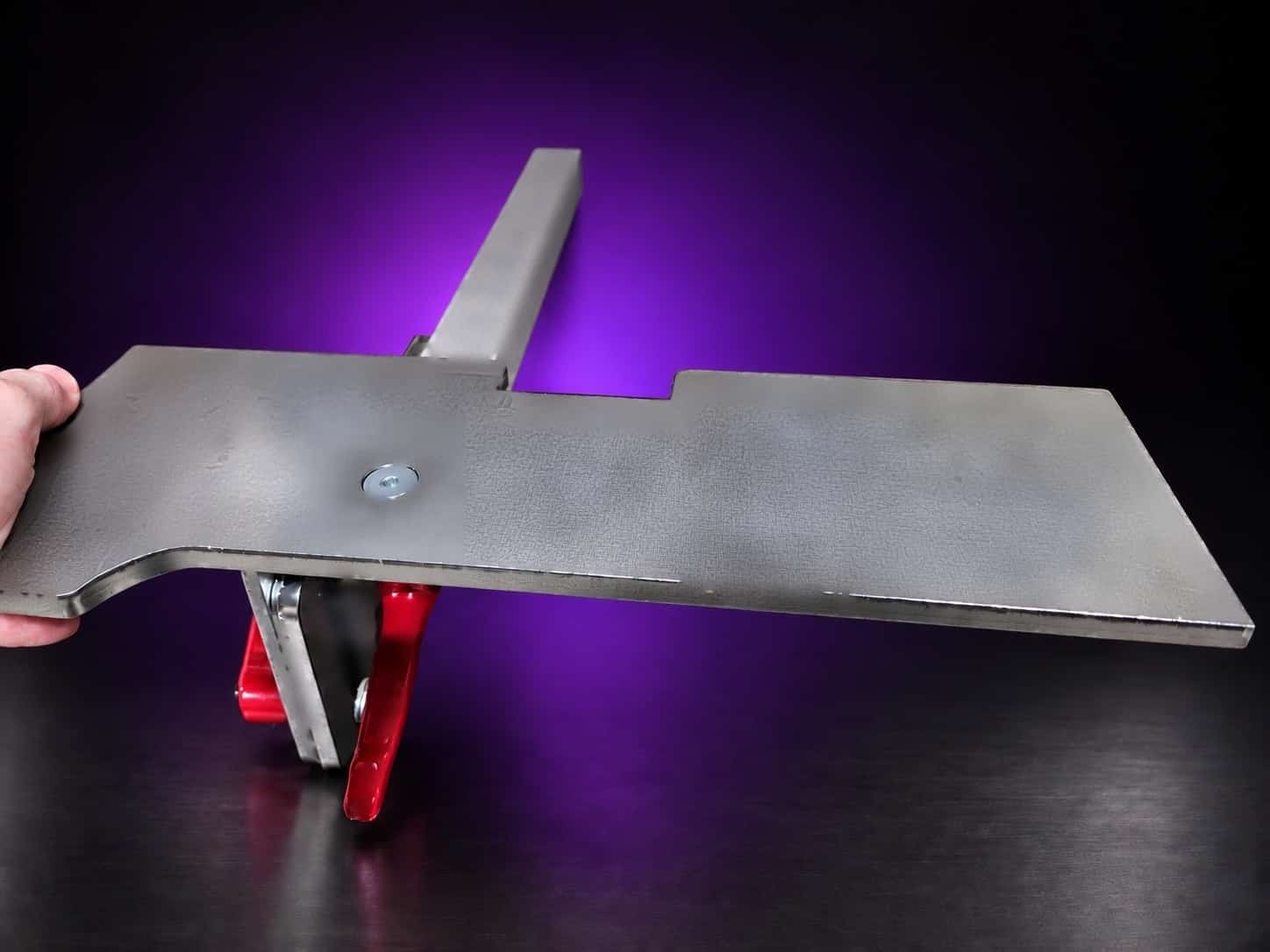

  • Work table plate from the side, showing its bracket, red cam levers and square arm bar, on black with a purple glow

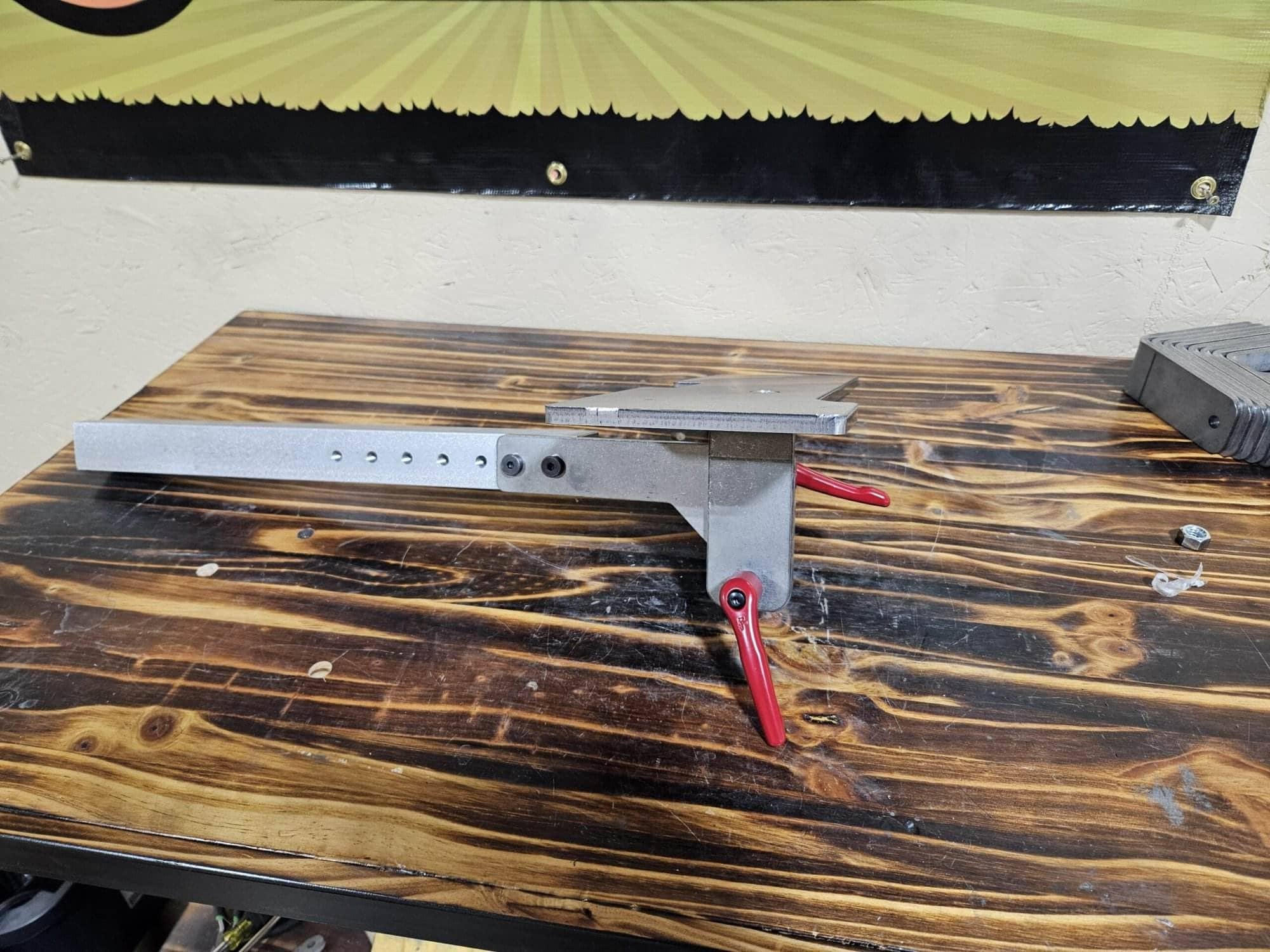

  • Aluminum adjustable work table attachment with red locking levers sitting on a scorched wood bench

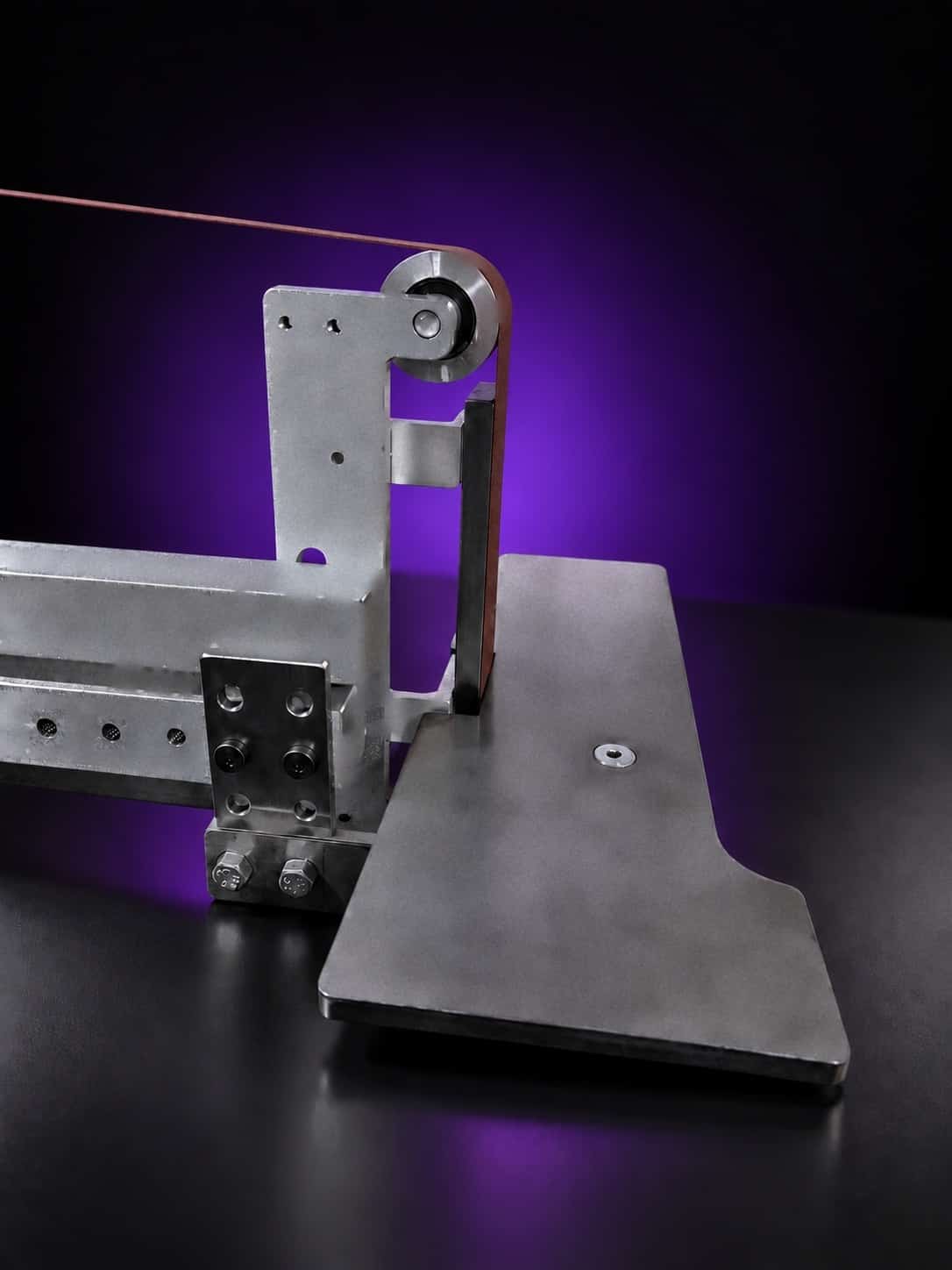

  • Steel work table mounted on the tool arm beside the platen and top idler wheel, close-up, on black with a purple glow

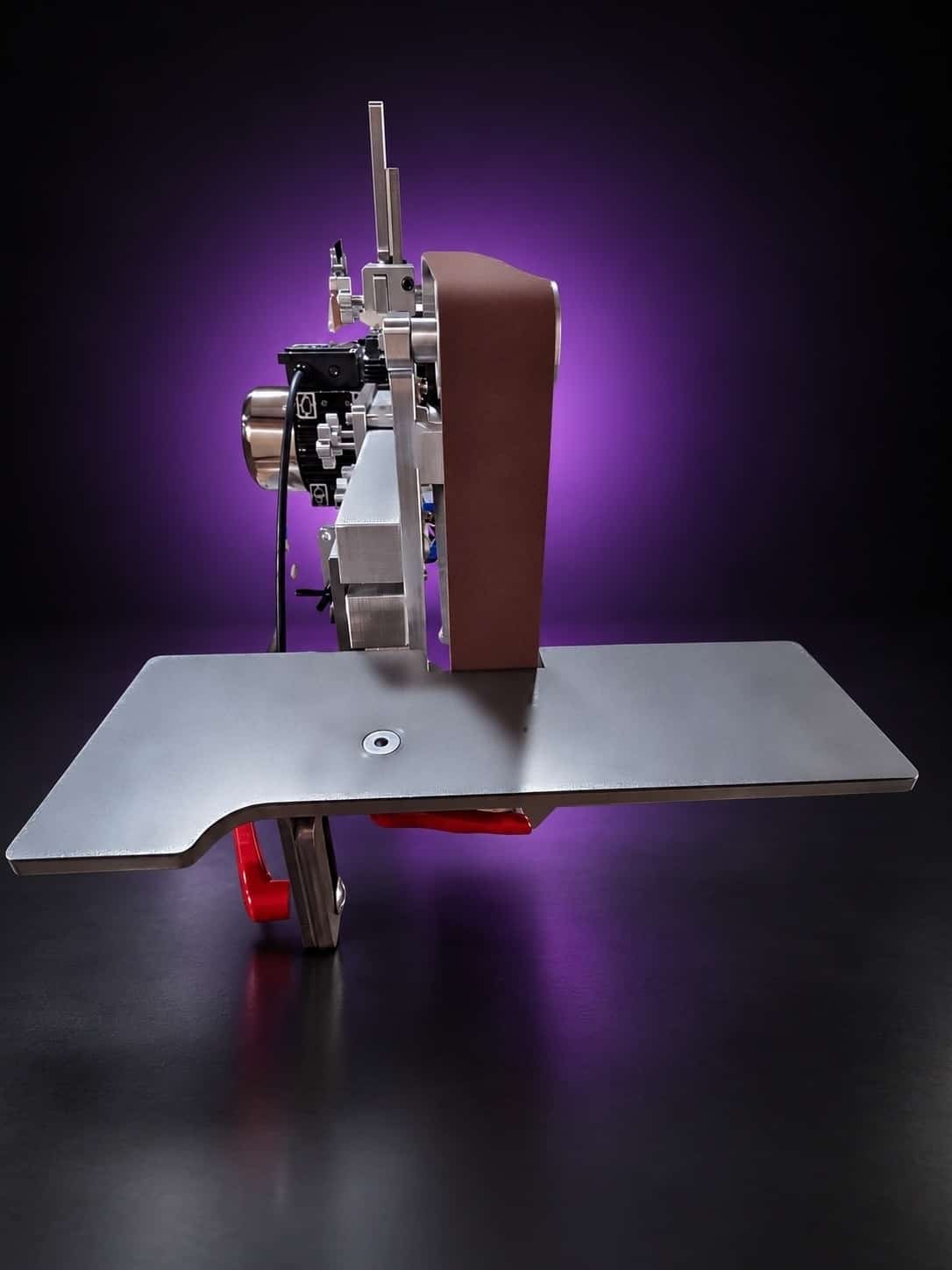

  • Work table in front of the belt, side-on view, with red cam levers under the plate, on black with a purple glow

8 shop photos · swipe or pick a thumbnail

$275

Available to ordermost orders ship in 7–10 business days

A 6×16-inch steel table that tilts and locks with two handles, rotates 180 degrees for horizontal grinding, and rides its own 1.5-inch aluminum tooling arm. The attachment most makers add first.

Build your setup

Order the work rest

Pairs well withOptional

Bundle savings

Add a second piece and save 5% on both.

Quantity

$275 each

Your total
$275
  • Ships in 7–10 business days
  • 2-year warranty
  • Secure checkout by Stripe
5.0 on Google16 reviews (opens in a new tab)Returns reviewed within two weeks of arrival

  • Shipping

    $95 a grinder, $145 with a motor package, $75 a motor on its own, $35 the first accessory and $15 each after; a tooling arm on its own $20 ($10 each extra); small parts (knobs, wheels) $12 flat on their own and free with anything bigger. A grinder with a motor and accessories is capped at $145. Tracking number emailed the day it ships.

  • Free local pickup

    1741 Industrial Drive Unit #8, Sterling, IL 61081. Email me to set a time, Mon–Fri 9:00am–4:00pm Central.

  • 2-year warranty

    Covers non-wear parts against defects in materials and workmanship under normal use.

  • Questions before you buy?

    Call or text 1-779-372-0262 or email me. You get the person who built it.

Google reviews

What owners say

Straight from Google, word for word. The ones about this kind of part come first.

5.0 on Google16 reviews (opens in a new tab)
  • 5 out of 5 stars

    Runs super smooth and quiet with basically no vibration. Even though it's aluminum, there's zero flex or rattling - feels rock solid even when you're really putting it to work.…

    Read the whole review by Eric TorrieShow the short version of Eric Torrie’s review

    Got this belt grinder for our farm shop and it's been awesome. The machining quality really impressed me - everything fits tight and feels solid, you can tell they put real care into making it.

    Setup took maybe 20 minutes tops and it was ready to roll. Runs super smooth and quiet with basically no vibration. Even though it's aluminum, there's zero flex or rattling - feels rock solid even when you're really putting it to work.

    Love the tracking system and the ratchet belt tensioning - makes changing belts quick and painless. All the controls just make sense.

    But honestly, what made this purchase special was dealing with Rich. He was incredible - answered all my questions before I bought it, made sure I got the right setup, and followed up several times after it arrived to check how everything was running. You just don't get that kind of service anymore.

    First belt grinder we've owned and I'm really happy with it. Thing's built to last and performs great. Would definitely recommend it if you're looking for a solid grinder for your shop.

    Keep up the fantastic work Rich!

    Eric TorrieGoogle review by Eric Torrie (opens in a new tab)
  • 5 out of 5 stars

    I decided to use Taurus CNC because almost everything is made from high quality aluminum.…

    Read the whole review by victor schmidtShow the short version of victor schmidt’s review

    Super Happy for deciding to purchase my first professional quality 2 x 72 belt grinder from Torus CNC. The owner Rich Answered all my questions and fast and he stayed in contact with me assuring everything went smoothly. I decided to use Taurus CNC because almost everything is made from high quality aluminum. That means no rust! I’m using a misting system that gets water everywhere. The set up took 20 minutes literally. Everything came preassembled and very well packaged. If you’re thinking about buying a new professional belt grinder for knife making or custom fab work this is the spot you won’t be disappointed.

    victor schmidtGoogle review by victor schmidt (opens in a new tab)
  • 5 out of 5 stars

    Despite being lesser known than some, the M90’s fit and finish are top-notch, and the grinder represents an exceptional value.…

    Read the whole review by David WileyShow the short version of David Wiley’s review

    I purchased the M90 about three weeks ago and finally got some time to put it to use. Throughout the buying process, Rich stayed in touch, answering questions and providing updates. The grinder even arrived a little sooner than expected; well packed and ready for use right out of the box.

    Quality grinders aren’t cheap, and if you’re in the market for a 2x72, you’ve probably researched all the main contenders. Despite being lesser known than some, the M90’s fit and finish are top-notch, and the grinder represents an exceptional value.

    Rich was a pleasure to do business with, and I have absolutely no regrets purchasing the M90. Highly recommended. Five well-deserved stars.

    David WileyGoogle review by David Wiley (opens in a new tab)

Why this one

Set the angle once. Grind all day.

Order the work rest

  • 6×16-inch table with a 5/16-inch steel top mounted to a 3/8-inch steel bracket

  • Tilts for acute bevel angles and locks with two 3/8-16 adjustment handles

  • Rotates 180 degrees for horizontal grinding, includes a 1.5-inch aluminum tooling arm

On its own arm

The table comes on its own 1.5-inch aluminum arm, so it slides into the receiver and out again without unbolting anything.

One arm per attachment. Swap in seconds.

  1. Deep flat platenFour inches of throat for deep slack-belt work.12-inch solid 1.5-inch aluminum tooling arm
  2. Adjustable work tableSet the angle once. Grind all day.1.5-inch aluminum tooling arm
  3. Small wheel attachmentReach the curves a platen never will.20-inch small wheel tooling arm, solid 1.5-inch aluminum
  4. Contact wheelPick the wheel that fits your curve.16.5-inch solid 1.5-inch aluminum tooling arm
  • Fits every Torus grinder and most 2×72s built around a 1.5-inch arm
  • two knobs lock each arm

The arm-mounted attachments each ride their own 1.5-inch solid aluminum arm, so they drop straight into any Torus grinder and swap in seconds.

Eligible attachments and wheels save 5% at 2 units, 10% at 3 units, 15% at 4 units, 20% at 5+ units. A grinder counts as one unit; only eligible parts are discounted.

Values marked on the figure: 5% at 2 units; 10% at 3 units; 15% at 4 units; 20% at 5+ units; 1/2 to 1.5-inch rubber small wheels.

Set the angle once and use the table as a reference for each bevel.

Who it's for

Built for the work you actually do

Anyone who wants bevels that match side to side: beginners learning to hold an angle, production makers running batches, sharpeners doing cleavers and mower blades, and daggers with four bevels that all have to agree.

What’s in the box

  • 6×16-inch work table with 5/16-inch steel top on a 3/8-inch steel bracket
  • Two 3/8-16 adjustment handles
  • 1.5-inch aluminum tooling arm

Turn it for horizontal work

The table rotates 180 degrees for horizontal grinding, and every Torus tilts flat in four moves: loosen the handle, pull the pin, swing it, pin it.

Tilts without tools

  1. Loosen the handle
  2. Pull the pin
  3. Swing the chassis from vertical to horizontal
  4. Pin it
  • tilt lock lever
  • 90-degree tilt on a pin

You go from grinding a bevel to a flat horizontal pass without opening the toolbox.

Values marked on the figure: vertical; horizontal.

The tilt, step by step, on a Nebula.

Specs

Product specifications and dimensions

Base price
$275
Weight
15 lbs
Dimensions
24 × 12 × 8 in
Availability
Available to order
Lead time
Most orders ship in 7–10 business days from time of order
Ships from
1741 Industrial Drive Unit #8, Sterling, Illinois
Shop
Torus CNC — Sterling, Illinois, USA

Options

Choose and compare product options

Compare motor packages, attachments and finish choices before ordering.

Add it to your cart
Steel work table plate on its drilled square aluminum arm bar, seen from above, on black with a purple glow
Work table plate from the side, showing its bracket, red cam levers and square arm bar, on black with a purple glow
Adjustable work table on the tool arm, with its slotted bracket and two red cam levers, on black with a purple glow
Repeatability is what a rest buys you.

Before you order

Shipping, warranty and returns

Read the full policy

  • Shipping and lead time

    In-stock attachments usually ship from Sterling, Illinois in seven to ten business days from time of order, with a tracking number the day they go out. A more detailed delivery estimate will be given when you order. Returns are case by case: contact me first, within two weeks of arrival. Approved returns carry a 25% restocking fee and the buyer covers insured return shipping. Ground shipping in the lower 48: $95 a grinder, $145 with a motor package, $75 a motor on its own, $35 the first accessory and $15 each after; a tooling arm on its own $20 ($10 each extra); small parts (knobs, wheels) $12 flat on their own and free with anything bigger. A grinder with a motor and accessories is capped at $145.

  • Warranty

    I warranty the non-wear parts against defects in materials and workmanship under normal use. Motors and VFDs carry their manufacturer's warranty; contact me for guidance on the manufacturer's claim process.

  • Returns

    Returns are reviewed case by case and must be pre-approved within two weeks of arrival. The buyer covers insured return shipping, a 25% restocking fee applies, and original shipping is not refunded.

Straight answers

Questions I get about the work rest

How do I switch to horizontal grinding?
Loosen the table with the handle and rotate it 180 degrees. The deep slot lets you support the work against the flat platen in either position and use different spots on the belt.
How acute an angle can it hold?
It tilts far enough for the fine edge angles used in sharpening and precision beveling. Set the angle, lock both handles, and it stays.
Will it fit my grinder?
Fits the Nova, Nebula, Classic and Steel closeout, and most other 2×72 grinders built around an industry-standard 1.5-inch square tooling arm. If you are not sure about yours, email me the arm size and I will tell you.
How fast does it ship?
In-stock attachments usually ship from my shop in Sterling, Illinois in seven to ten business days from time of order. A more detailed delivery estimate will be given when you order. You get a tracking number the day it goes out.
Can I return it if it does not work for me?
Email me first, within two weeks of arrival. Returns are approved case by case, carry a 25% restocking fee, and you cover insured return shipping. If there is a workmanship problem, I will work with you to remedy it.
