AEB-L
AEB-L is a simple, low-alloy Swedish stainless steel (originally made by Uddeholm for razor blades) that has become a favorite among knifemakers for an unusual reason: despite modest wear resistance on paper, its very fine, clean grain structure gives it some of the best toughness of any stainless knife steel, along with excellent edge stability and a very easy grind. It is a popular choice for kitchen knives and increasingly for hard-use EDC blades.
AEB-L FAQ
What hardness does AEB-L reach?
With a standard heat treatment, AEB-L typically reaches around 62 HRC, and up to roughly 64 HRC with an added cryogenic treatment. See the heat treat details further down this page for the full recipe.
Is AEB-L a good kitchen knife steel?
Yes, it is one of the most popular steels for kitchen knives. Its fine grain lets it take an exceptionally keen, thin edge, and its excellent toughness holds up well to the thin grinds kitchen knives typically use.

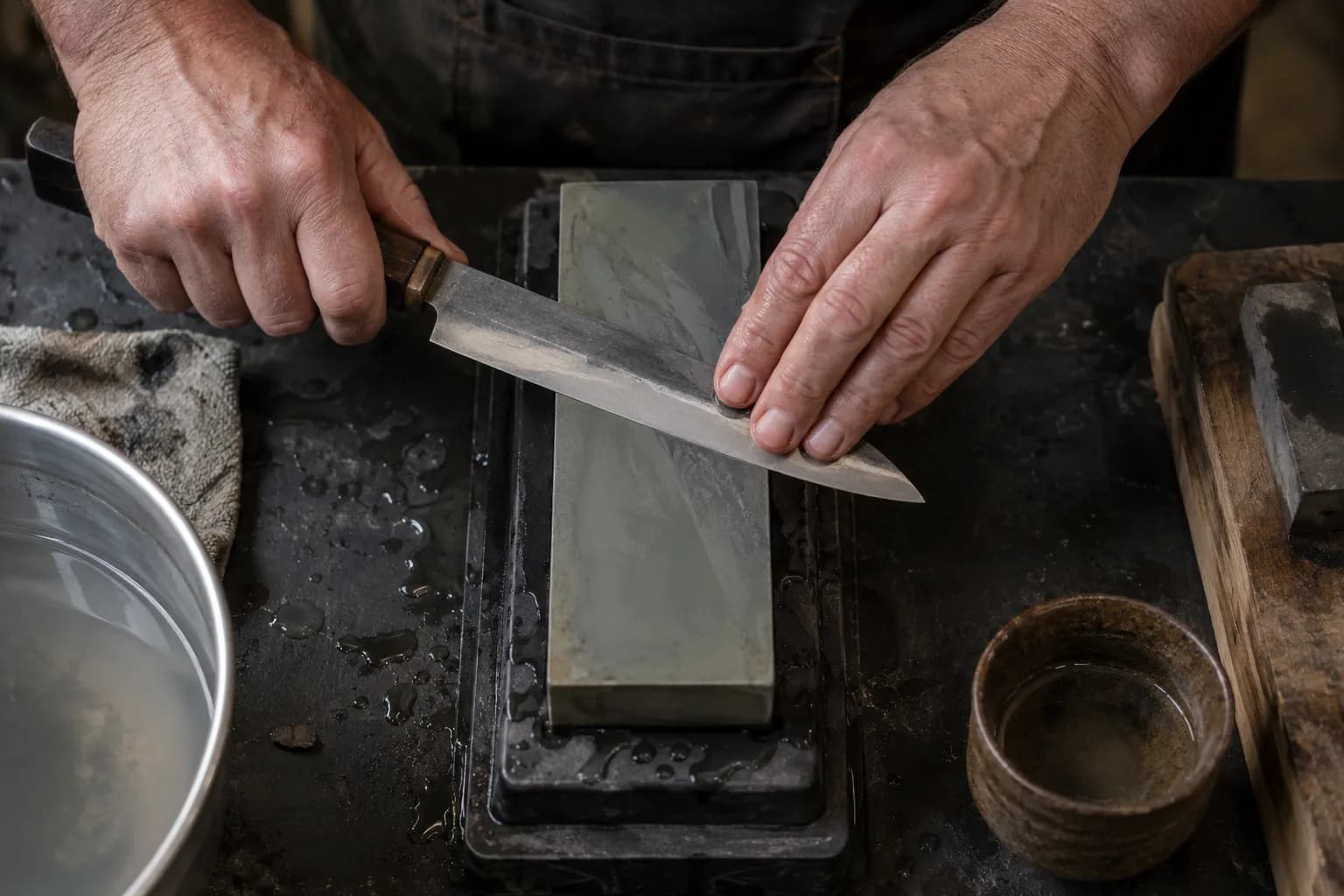

Is AEB-L hard to sharpen?
No, it is one of the easier stainless steels to sharpen. It responds well to standard sharpening stones and does not require diamond or CBN abrasives the way high-carbide steels do.

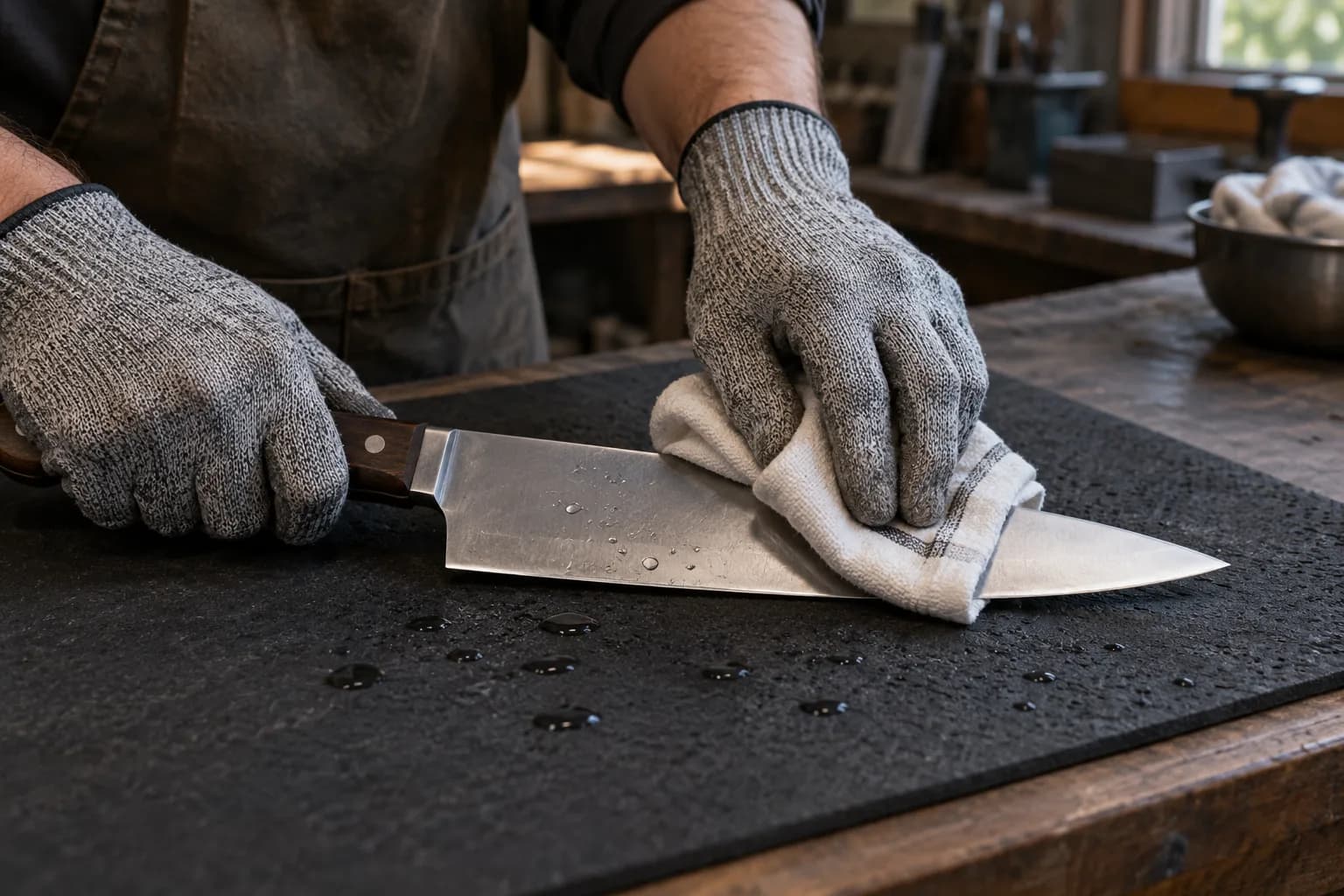

Does AEB-L rust?
It offers good, dependable stainless corrosion resistance, though not quite as high as steels like MagnaCut or CPM 20CV. Normal care, wiping down and drying after wet use, is enough to keep it rust-free.
How does AEB-L compare to Nitro-V or 154CM?
AEB-L is the base chemistry Nitro-V was built from, so the two are closely related. See the full breakdowns: AEB-L vs Nitro-V and AEB-L vs 154CM.

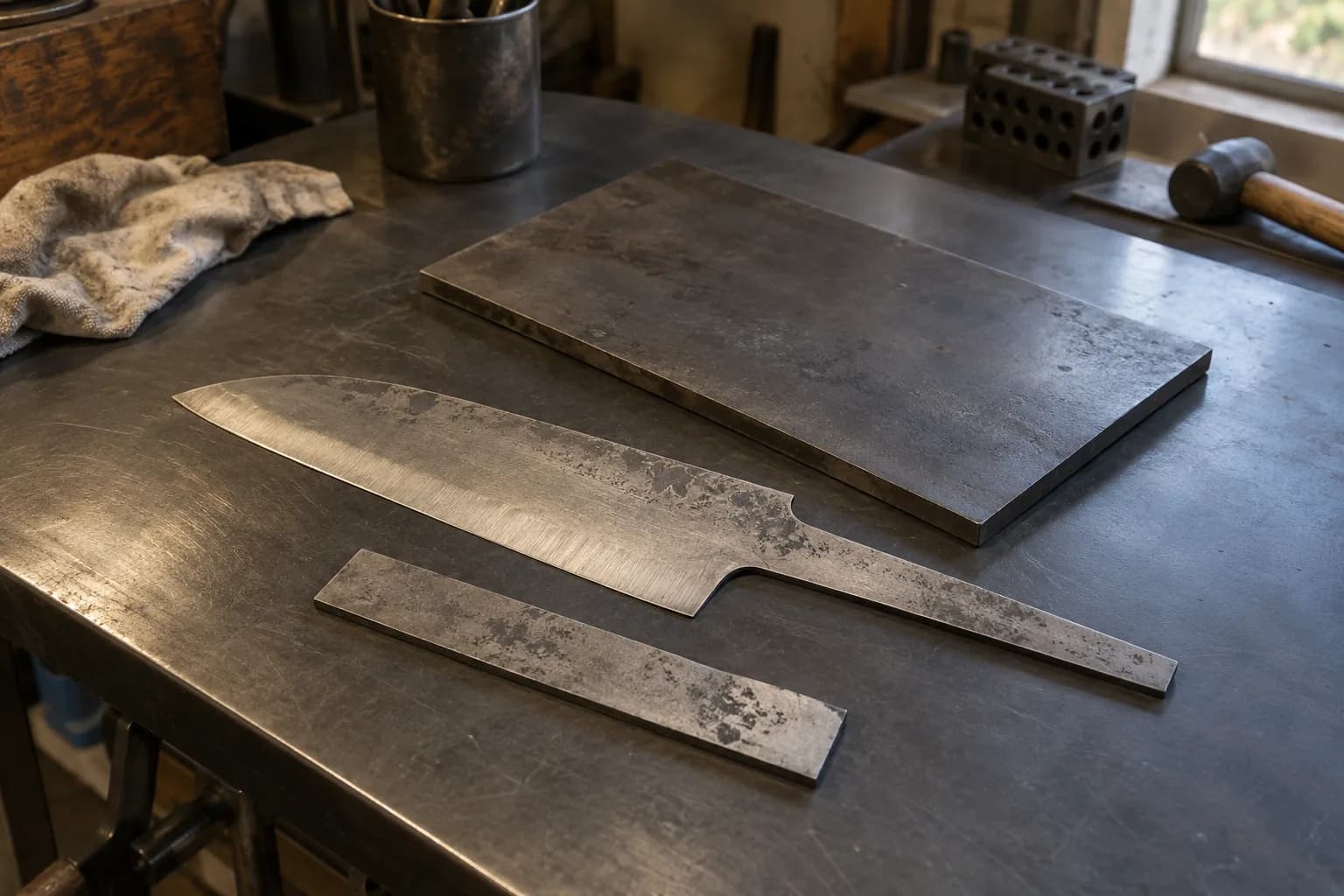

Is AEB-L a good steel for beginners to grind?
Yes, it is one of the more forgiving stainless steels to work with, though thin kitchen-knife stock needs care to avoid warping. See the full grinding guide for belt recommendations and technique.
Also known as: AEB-L, Uddeholm AEB-L
Composition
| Carbon (C) | 0.67% |
| Chromium (Cr) | 12.8% |
| Manganese (Mn) | 0.60% |
| Silicon (Si) | 0.40% |
Properties
| Property | Rating | Notes |
|---|---|---|
| Toughness | ★★★★★ | Among the best toughness of any stainless knife steel at a given hardness, thanks to its simple chemistry and very fine, clean grain structure with minimal large carbides. Often used as a toughness benchmark against more heavily alloyed stainless steels. |
| Edge Retention | ★★☆☆☆ | Modest wear resistance compared to higher-vanadium steels since it has far fewer hard carbides, but the fine grain gives it excellent edge stability, so it takes a very keen edge and resists rolling or chipping at that edge even though it dulls from abrasion sooner than high-carbide steels. |
| Corrosion Resistance | ★★★★☆ | A genuine stainless steel with 12.8% chromium, giving it solid, dependable corrosion resistance well suited to kitchen and wet-environment use. |
| Machinability / Grinding | ★★★★★ | One of the easiest stainless steels to grind and finish available to knifemakers, with no large hard carbides to fight through. A common recommendation for makers just starting to work with stainless steel. |
Heat Treatment
Austenitize between 1940-1975 F (soak roughly 15 minutes at 1940 F, or as little as 5 minutes at 1975 F), then plate or air quench. An optional cryogenic treatment (liquid nitrogen) can push peak hardness from around 62 HRC to roughly 64 HRC. Temper at least twice, 2 hours each cycle, in the 350-450 F range depending on desired final hardness, tempering immediately after quench or cryo.
Best Uses
Excellent for kitchen knives and thin-ground slicers where toughness and edge stability at a fine, thin edge matter more than maximum wear resistance. Also a strong choice for makers new to stainless steel heat treating thanks to its forgiving, easy-grinding nature.
Sources: Larrin Thomas, All About AEB-L, Knife Steel Nerds, March 2019.
