Grinding & Sharpening D2: Belt Guide

D2 is one of the more demanding steels to grind and sharpen due to its heavy carbide content. Ceramic belts, moderate speed with light passes, and diamond stones for sharpening give the best results.

D2’s heavy chromium and vanadium carbide load, the same feature that gives it excellent wear resistance, makes it one of the more demanding tool steels to grind and sharpen. It sits alongside high-carbide CPM steels like CPM 20CV and CPM S30V in terms of belt and abrasive demand, despite not being a modern powder-metallurgy steel.

Belt Selection

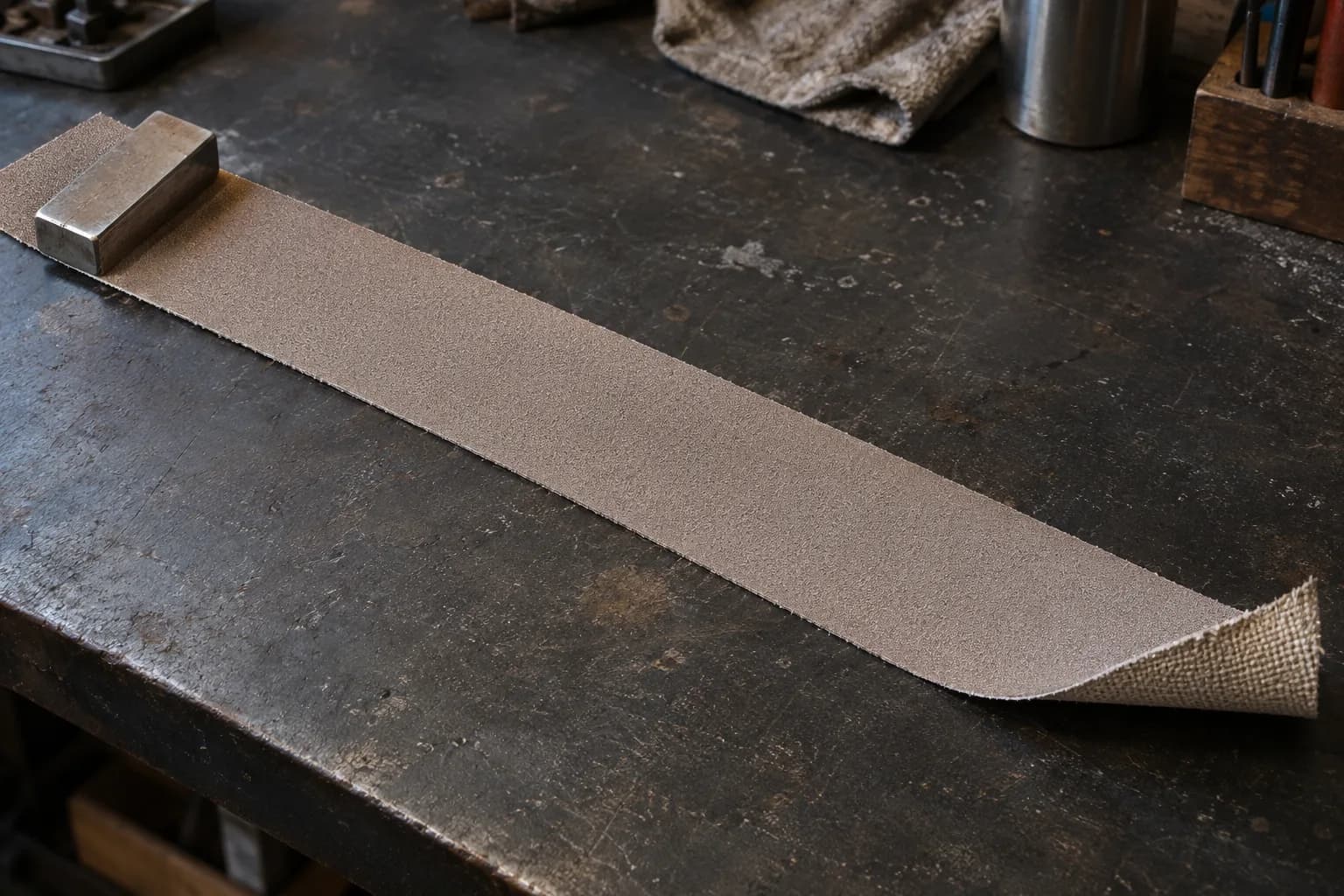

Ceramic belts are the clear choice for stock removal on D2, the same recommendation that applies to other high-carbide steels. Zirconia belts are a reasonable step down if ceramic is not available, but expect faster wear and slower cutting.

Grit Progression

Stage	Grit
Profiling / heavy stock removal	50
Bevel refinement	60
Pre-finish	80
Finish grinding	120

Technique

Run at a moderate belt speed with light, controlled passes rather than heavy pressure, which generates excess heat and risks drawing the temper. A generous coolant mister or frequent water dips help prevent overheating, since D2’s demanding heat treat means preserving the temper during grinding matters more than on tougher, simpler steels.

Sharpening

Diamond stones are the clear recommendation for sharpening D2. Standard aluminum oxide or Arkansas stones struggle to cut its carbide structure efficiently. A practical progression starts coarse, around 220-400 grit, for reprofiling or fixing a dull edge, then moves to 600-1000 grit for refining, with light lubricant to help manage heat throughout.

Common Mistakes

Using zirconia or aluminum oxide belts instead of ceramic, leading to slower cutting and faster belt wear.
Grinding aggressively with heavy pressure, generating excess heat that can draw the temper.
Trying to sharpen with standard aluminum oxide or Arkansas stones instead of diamond, which struggle to cut D2’s carbides.
Skipping coolant or lubricant during sharpening and grinding.

Safety

Wear a full face shield and appropriate respirator, metal fines from high-carbide steels like D2 are a genuine respiratory hazard. Keep coolant systems clear of electrical components. Inspect belts for fraying or thinning before mounting. Secure the workpiece firmly during aggressive profiling passes.
