Grinding and Sharpening CPM S30V: Belt Recommendations & Technique
CPM S30V is a demanding steel to grind, similar to CPM 20CV. Ceramic or structured abrasive belts (Trizact, Norzon), high speed with light passes, and frequent belt cleaning give the best results, and it can be sharpened effectively right on the belt grinder using soft-backed silicon carbide belts finished on a felt polishing wheel.
CPM S30V is one of the more demanding steels in this database to grind, sitting alongside CPM 20CV and CPM M4 near the top of the “hardest to work” list. Its heavy vanadium carbide load, the same feature that gives it top-tier edge retention, means belts load and dull faster than on tougher, easier-grinding steels like MagnaCut or Elmax.
Belt Selection

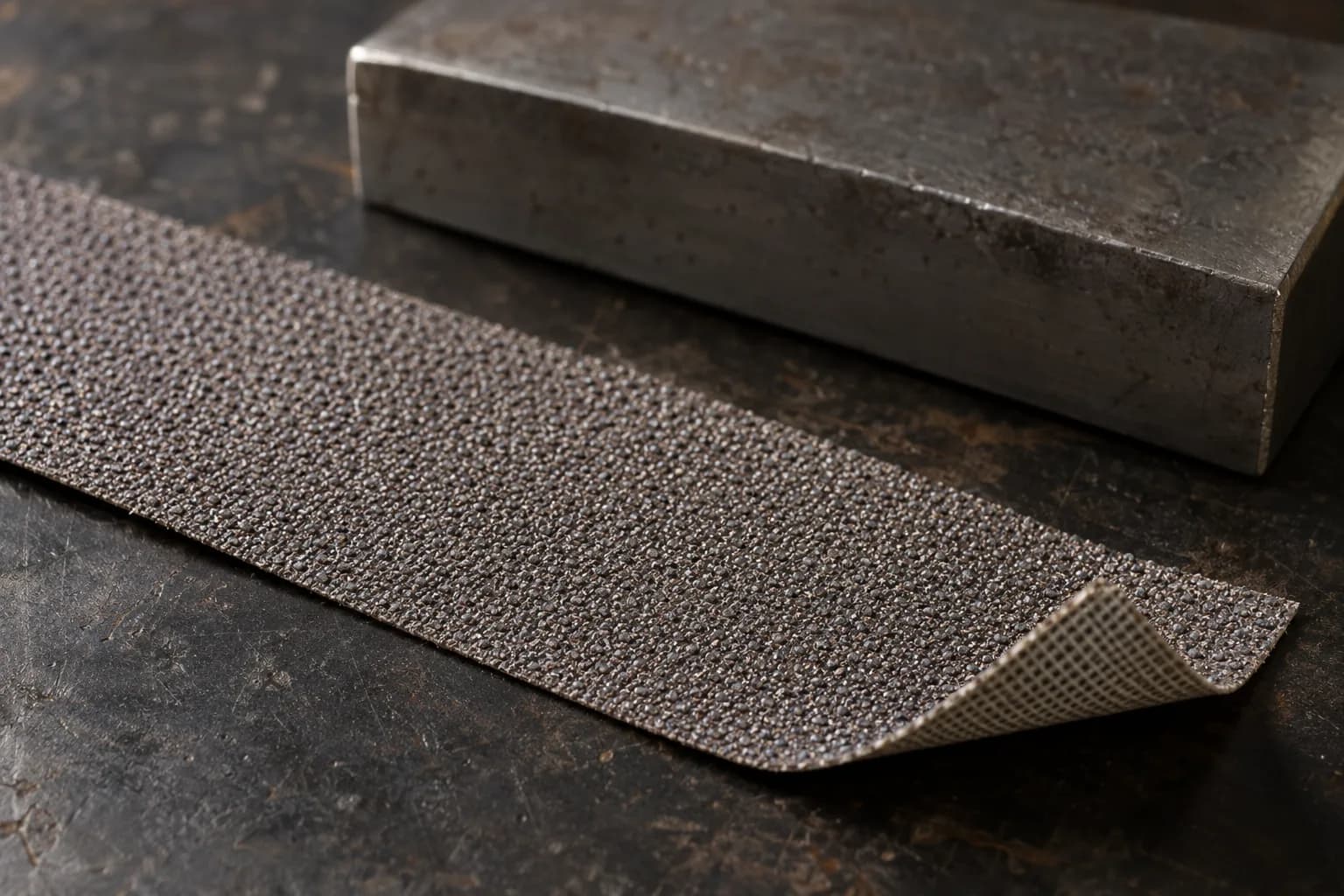

Ceramic belts are the standard recommendation for CPM S30V, the same guidance that applies to CPM 20CV. Structured abrasive belts, such as 3M Trizact or Norton Norzon, run cooler and last noticeably longer than standard aluminum oxide belts on this steel, and are worth the extra cost for anyone grinding S30V regularly.
Grit Progression
| Stage | Grit |
| Profiling / heavy stock removal | 80 |
| Bevel refinement | 180 |
| Pre-finish | A45 structured abrasive |
| Finish | Hand rub or polish |
Technique

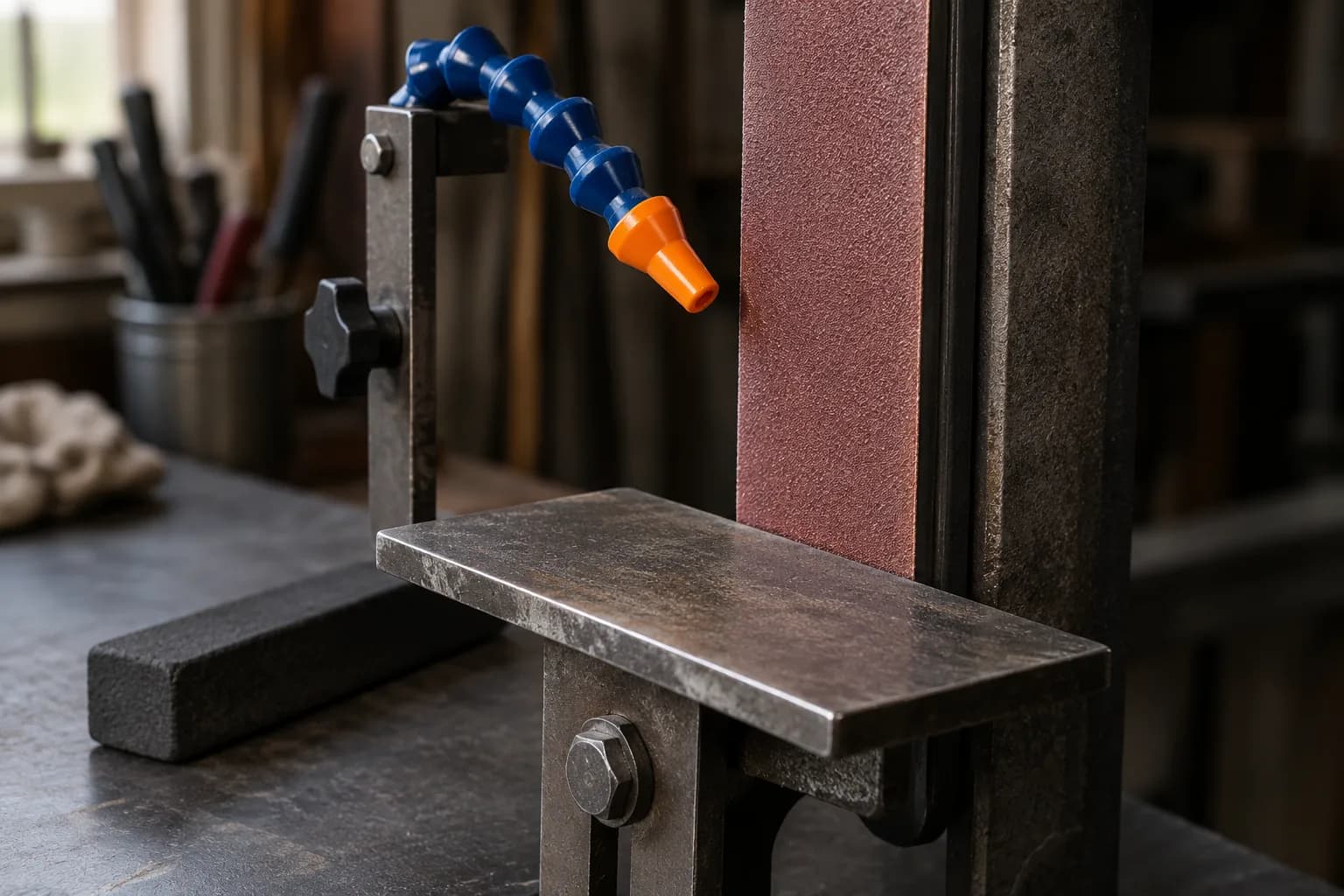

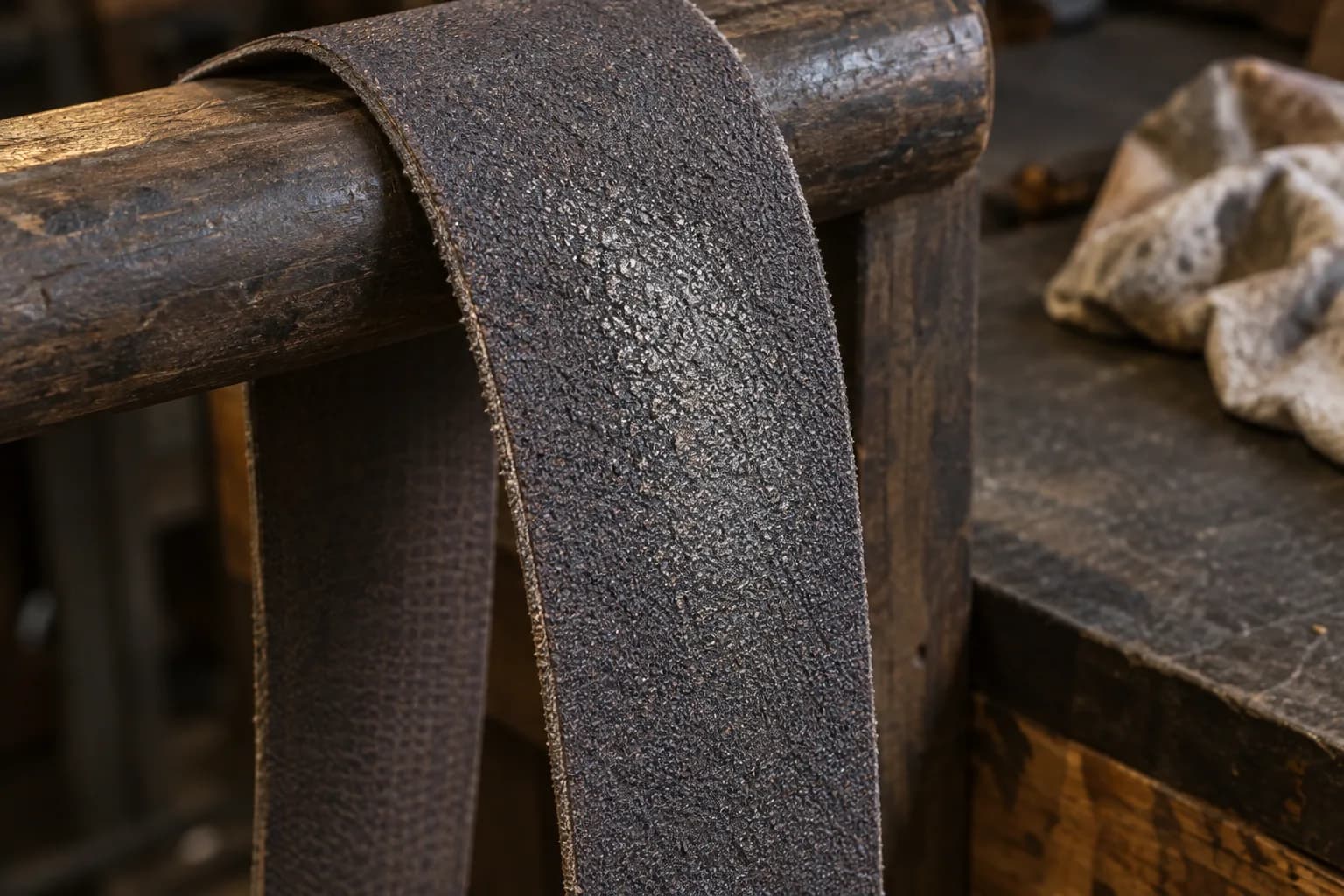

Run higher belt speed with light, controlled passes and dress the belt frequently as it loads. A coolant mister is worth running throughout, both to protect the temper and to extend belt life on this carbide-heavy steel.
Sharpening

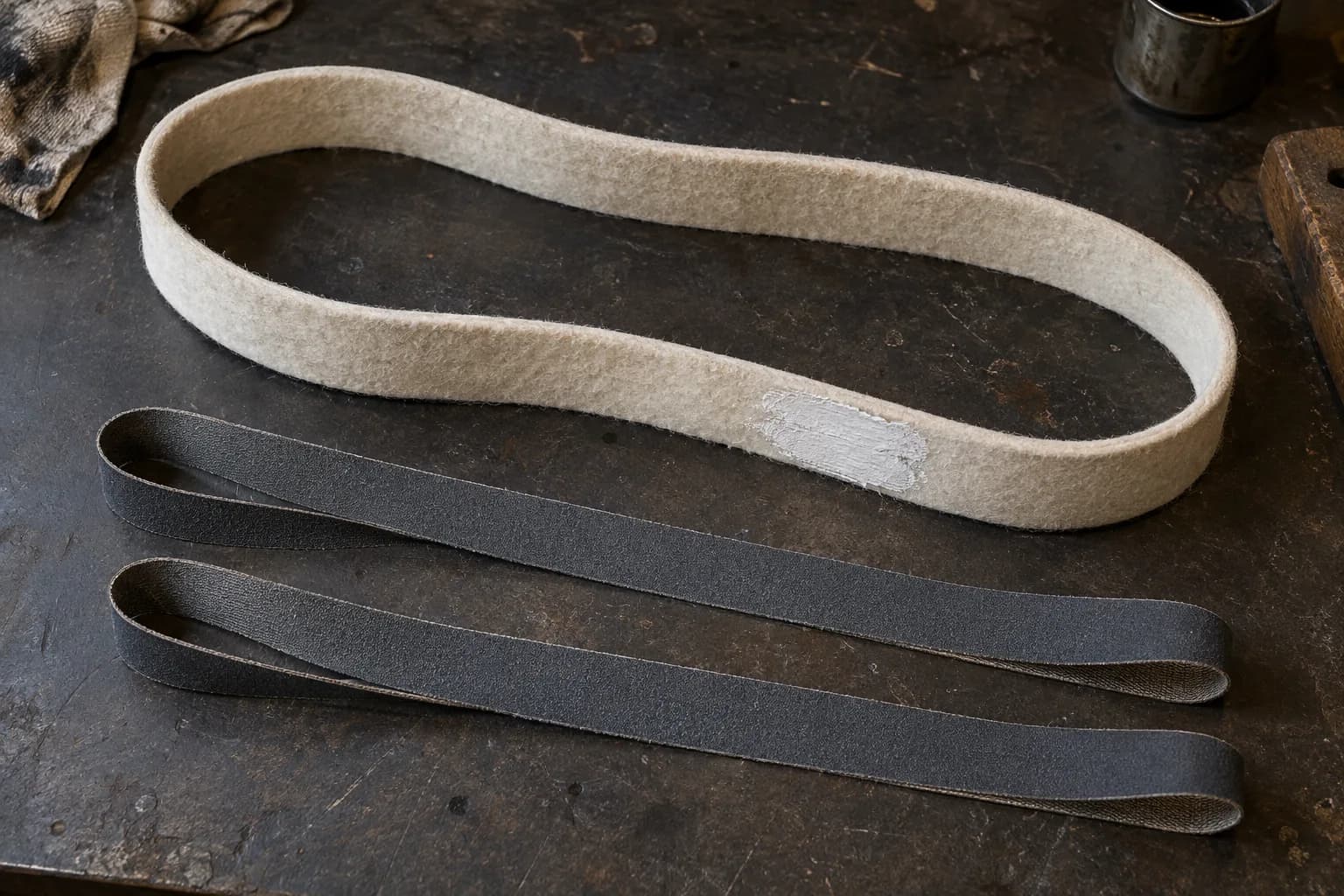

CPM S30V can be sharpened effectively right on the belt grinder itself, not just with stones off the machine. A common shop method uses fresh, soft-backed silicon carbide belts in a light progression, such as 400 grit, then 800 or 1200 grit, finishing on a plain felt belt charged with white buffing compound for a polished, keen edge. For stone sharpening off the grinder, S30V responds well to a polished-edge approach, finishing on a fine aluminum oxide stone or belt before stropping with a fine compound.
Common Mistakes
- Using standard aluminum oxide belts instead of ceramic or structured abrasives, leading to faster belt wear.
- Grinding at low speed with heavy pressure, which loads belts faster instead of cutting cleanly.
- Skipping coolant or misting, risking overheated edges given the demanding heat treat this steel requires.
- Assuming stones are the only sharpening option; a soft-backed belt and felt polishing wheel work very well on this steel.
Safety
Wear a full face shield and appropriate respirator, metal fines from high-carbide steels like S30V are a genuine respiratory hazard. Keep coolant and misting systems clear of electrical components. Inspect belts for fraying or thinning before mounting. Secure the workpiece firmly during aggressive profiling passes.
