Grinding and Sharpening CPM CruWear: Belt Recommendations & Technique
CPM CruWear is moderately demanding to grind, easier than CPM M4 or D2 but tougher on belts than CPM 3V. Ceramic belts, moderate to high speed with light passes, and diamond or CBN sharpening abrasives give the best results.
CPM CruWear sits in the moderately demanding range for grinding, tougher on belts than simple carbon steels but generally easier than the hardest-edged tool steels like CPM M4 or D2. Its carbide structure, tungsten and vanadium in a fine powder-metallurgy grain, gives it a good balance of wear resistance without being as belt-hungry as harder-edged alternatives.

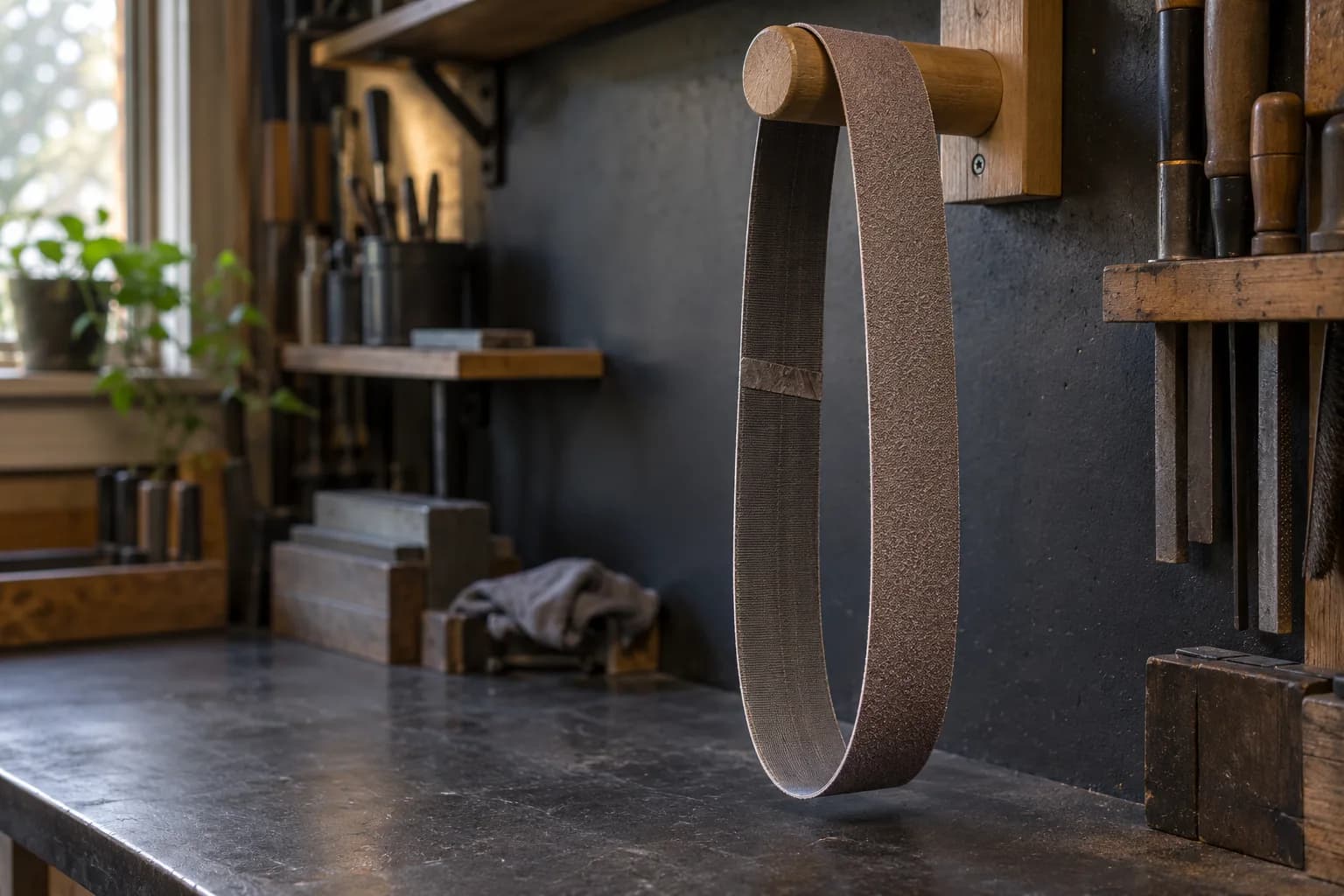

Belt Selection
Ceramic belts remain the recommended choice for stock removal. CPM CruWear does not chew through belts as fast as CPM M4 or D2, but expect more wear than with a tougher, leaner steel like CPM 3V.
Grit Progression
| Stage | Grit |
| Profiling / heavy stock removal | 50 |
| Bevel refinement | 60 |
| Pre-finish | 80 |
| Finish grinding | 120 |
Technique

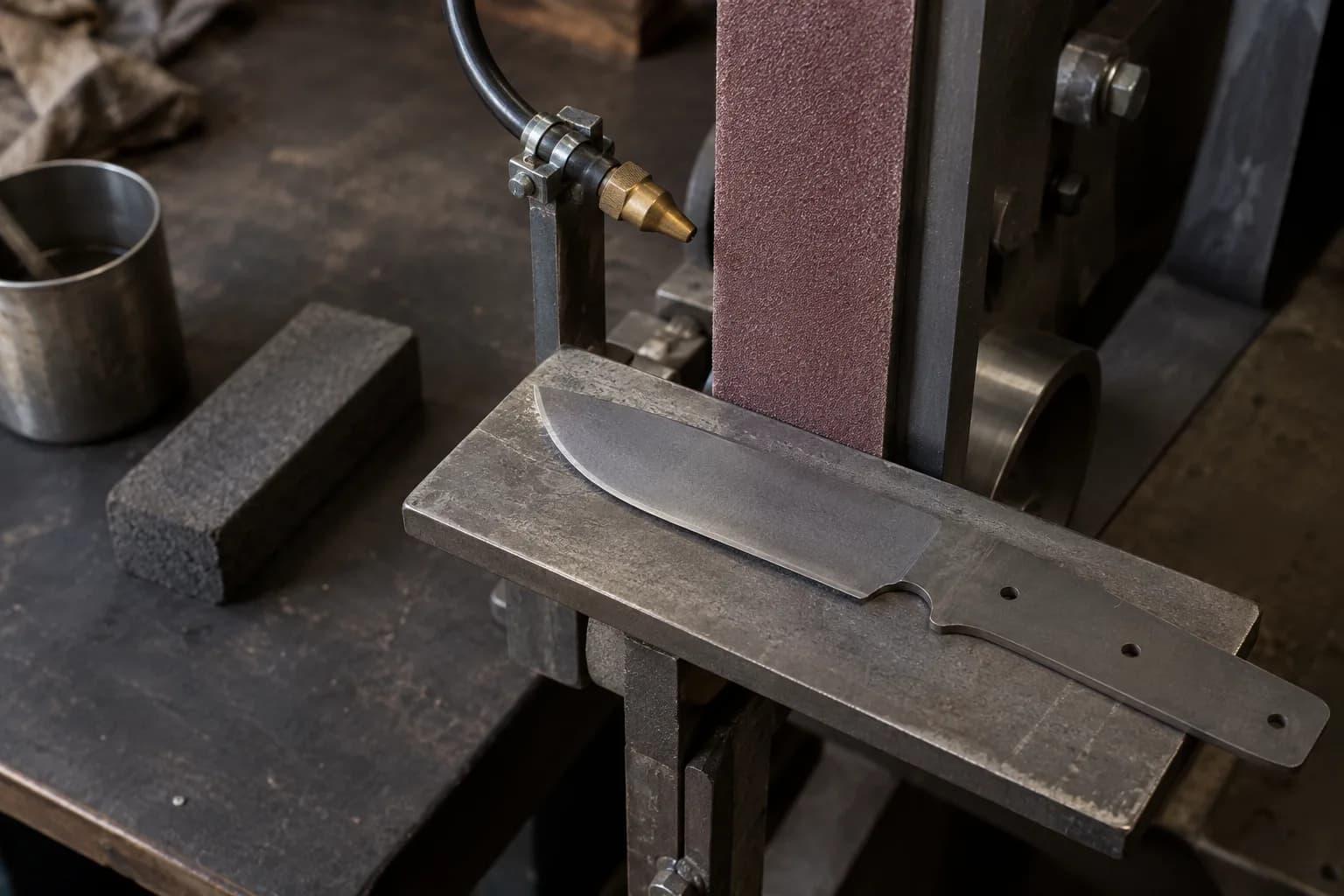

Run moderate to high belt speed with light, controlled passes and keep a belt eraser handy to dress the belt as it loads. A coolant mister helps preserve the temper and extends belt life during heavier profiling passes.
Sharpening
CPM CruWear benefits from diamond or CBN abrasives for the most efficient sharpening, though it is somewhat more forgiving of standard aluminum oxide stones than harder-edged steels like CPM M4. A coarse-to-fine progression works well for reprofiling or restoring a damaged edge.
Common Mistakes
- Grinding at low speed with heavy pressure, which loads belts faster instead of cutting cleanly.
- Skipping coolant or misting during heavy stock removal passes.
- Trying to sharpen exclusively with basic stones instead of diamond or CBN for full sharpenings.
Safety
Wear a full face shield and appropriate respirator. Keep coolant and misting systems clear of electrical components. Inspect belts for fraying or thinning before mounting.
