Troubleshooting

Excessive Vibration on My Belt Grinder

Work back from what it is doing to what caused it, then to the fix that addresses the cause. Nothing here needs a sign-up.

Abrasives and belt grinding in a working knife shop
If a symptom appears mid-job, put the work down and check it before continuing.

The flow

Work it in this order

Causes first, then the quick checks, the fix, prevention and the stop-work point.

  1. Likely causes

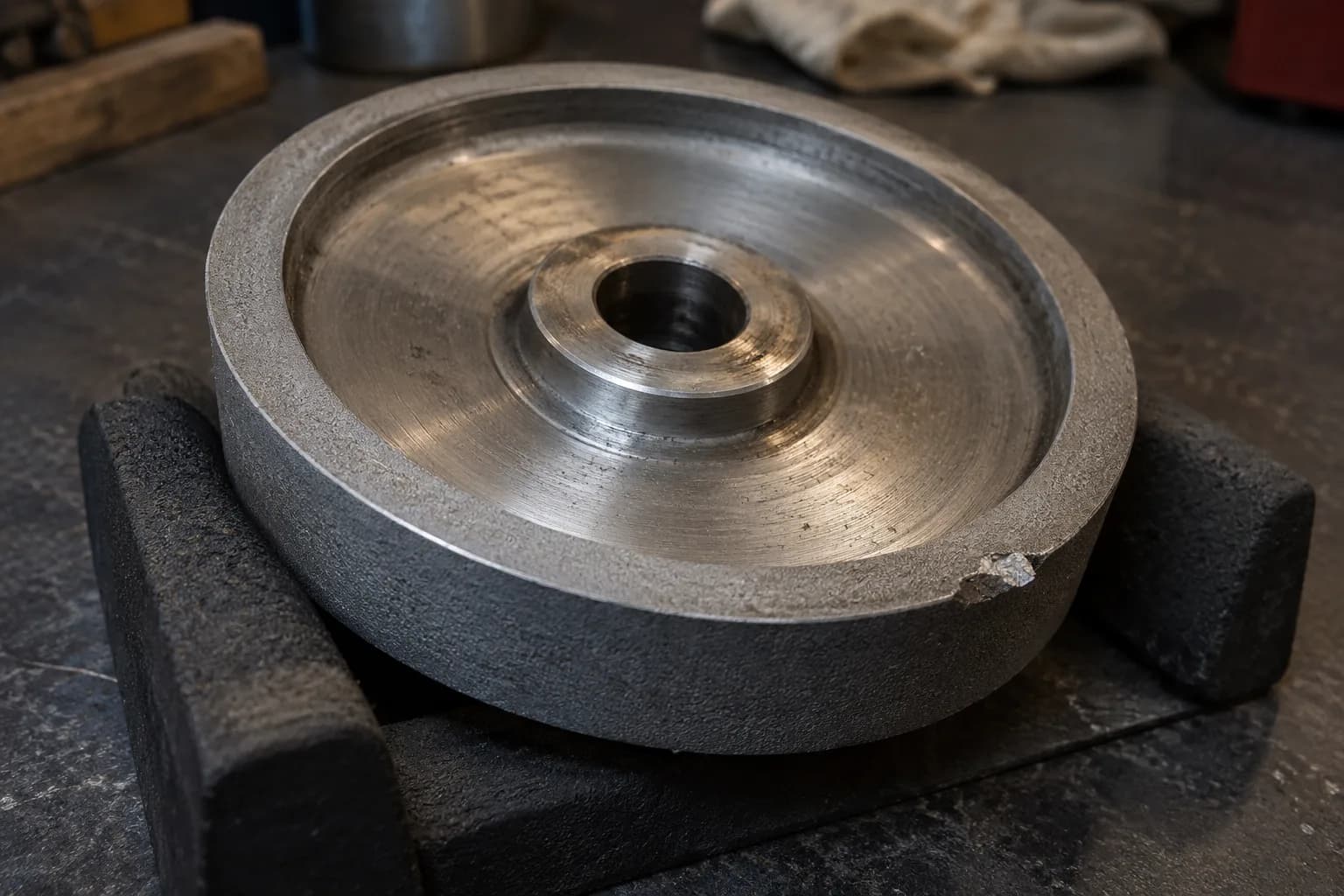

    • Drive wheel is out of balance or was damaged
    • Motor mount or grinder frame hardware has worked loose
    • Bearings in the drive or idler wheels are worn or damaged
    • Belt itself is uneven, or a splice in the belt is causing a periodic thump
    • Grinder is not sitting on a stable, flat surface
Removed metal grinder wheel with a small chip in its rim, resting in a dark foam cradle on a charcoal bench.

  1. Quick checks

    • Run the grinder empty, without touching a blade to it, and see if the vibration is present even with no load
    • Check whether the vibration frequency changes with belt speed; a vibration tied directly to wheel rotation speed usually points to the wheel or bearing

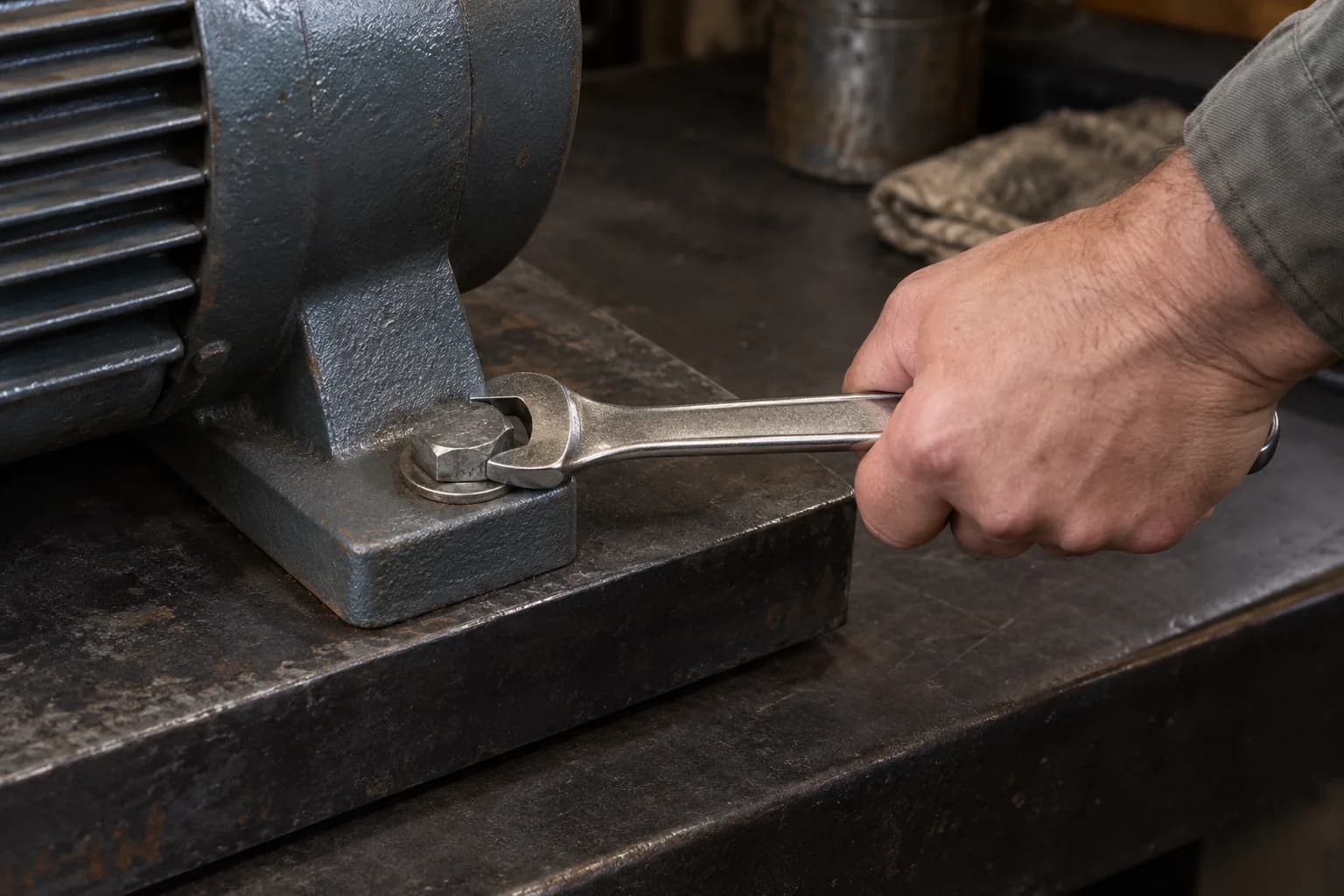

    • Inspect all visible bolts on the motor mount, wheel arms, and frame for looseness
    • Check that the grinder stand or bench is not itself flexing or rocking
Hand tightening a hex bolt on a finned electric motor's cast foot with an open-end wrench, on a dark steel bench

  1. Fixes

    • Retighten all frame, motor mount, and wheel arm hardware
    • Replace a damaged or out-of-round drive wheel
    • Replace worn bearings in the wheel assemblies

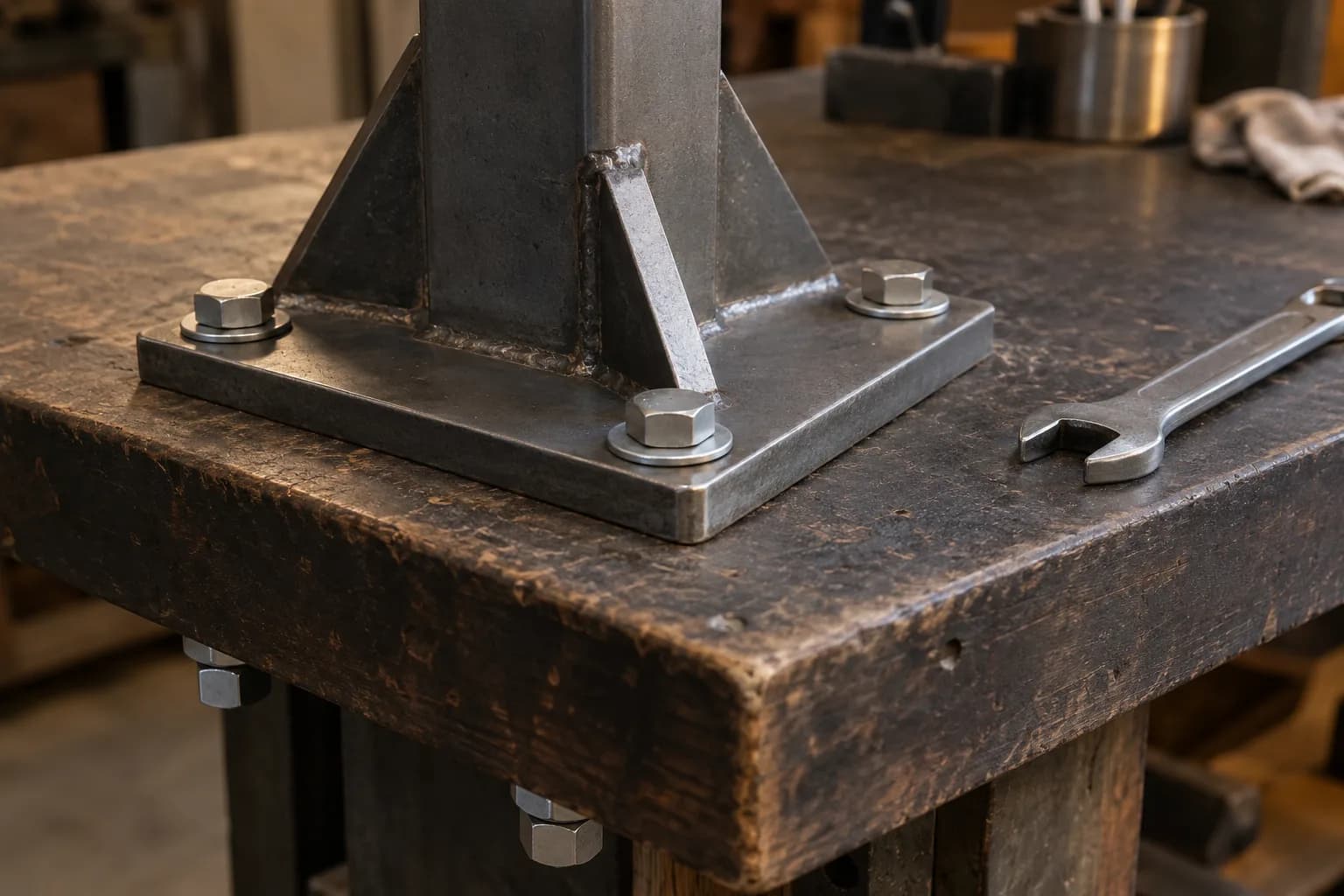

    • Bolt or clamp the grinder stand securely to the floor or a heavy, stable bench
Welded steel base plate with gussets bolted down on washers to a thick scarred workshop bench, with an open-end wrench nearby.

  1. Prevention

    • Periodically retighten frame and mounting hardware, especially after the first several hours of use on a new build
    • Avoid running a visibly out-of-round or damaged wheel; replace it rather than tolerating the vibration
    • Keep the grinder on a dedicated, stable stand rather than a lightweight or unsecured table

  2. When to stop

    If vibration is severe, getting worse over time, or accompanied by unusual noise from a wheel or bearing, stop and inspect before continuing; a failing bearing or wheel can fail suddenly under load.

Open ball bearing with a chipped inner race in a wooden block, its rubber seal and grit in a steel tray beside it
