Troubleshooting

Belts Burning, Glazing, or Dulling Too Fast

Work back from what it is doing to what caused it, then to the fix that addresses the cause. Nothing here needs a sign-up.

Abrasives and belt grinding in a working knife shop
If a symptom appears mid-job, put the work down and check it before continuing.

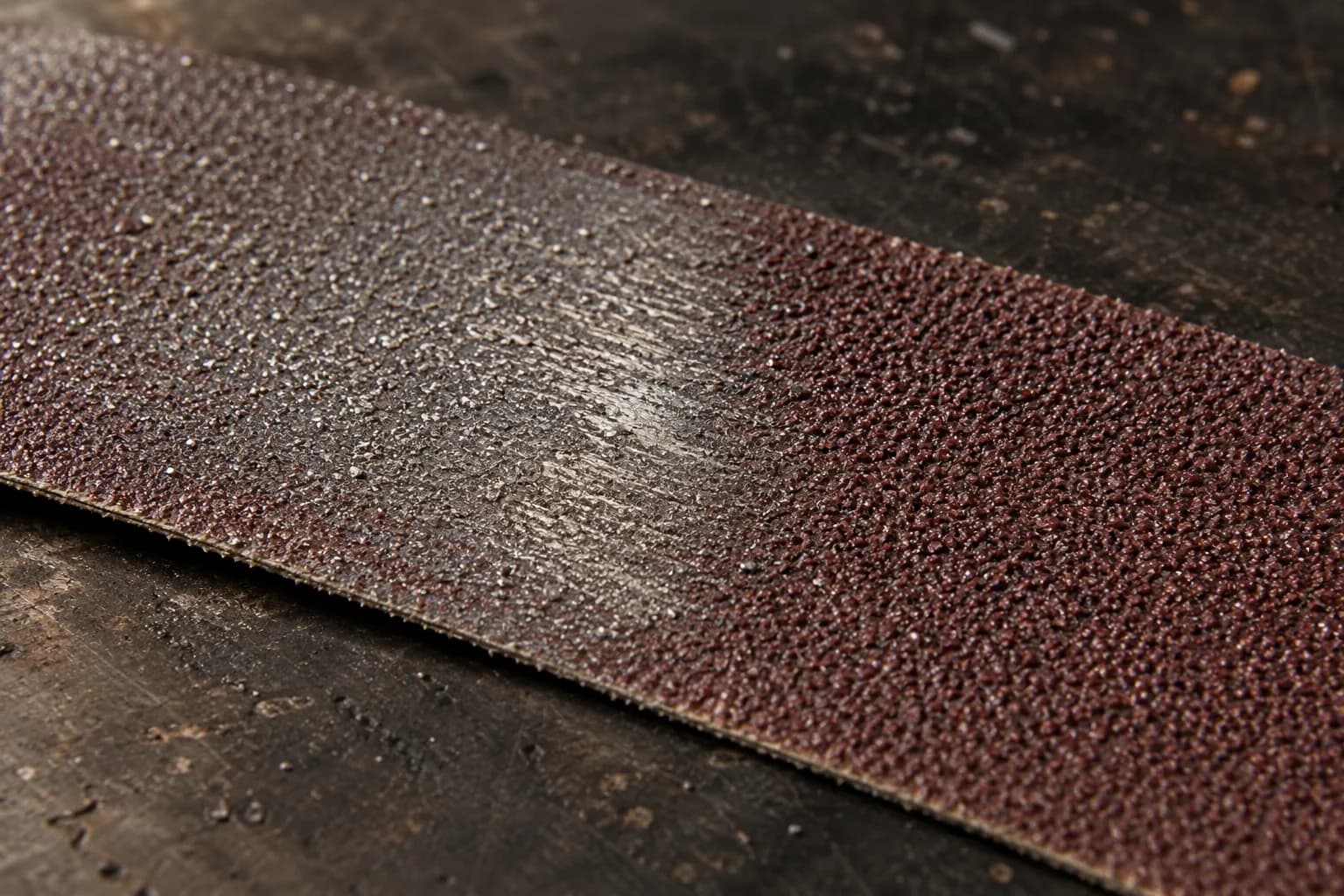

Close raking-light view of a removed abrasive belt with a glazed, flattened worn patch packed with silver swarf.

The flow

Work it in this order

Causes first, then the quick checks, the fix, prevention and the stop-work point.

  1. Likely causes

    • Wrong belt type for the steel being ground, such as using standard aluminum oxide belts on a high-carbide CPM steel
    • Grinding with too much pressure at too low a belt speed, generating excess heat and loading the belt with swarf
    • Insufficient or no coolant during heavy stock removal
    • Continuing to use a belt well past the point it has already loaded up, rather than cleaning or replacing it

  2. Quick checks

    • Check the belt surface for a shiny, smooth glaze rather than a visibly abrasive texture, a sign of loading
    • Confirm the belt type matches the recommendation for the specific steel; high-carbide steels generally need ceramic belts
    • Check whether you are using a coolant mister or dipping regularly, especially on demanding steels
Gloved hand uses long tongs to lower a gray knife blank into a wide pan of water on a shop bench.

  1. Fixes

    • Switch to ceramic belts for high-carbide steels like CPM 20CV, CPM S30V, or D2
    • Use a belt eraser or dressing stick to clean a loaded belt before assuming it needs replacement
    • Increase belt speed and reduce pressure, using shorter, lighter passes instead of heavy, slow strokes
    • Add or increase coolant misting or water dipping during heavy stock removal

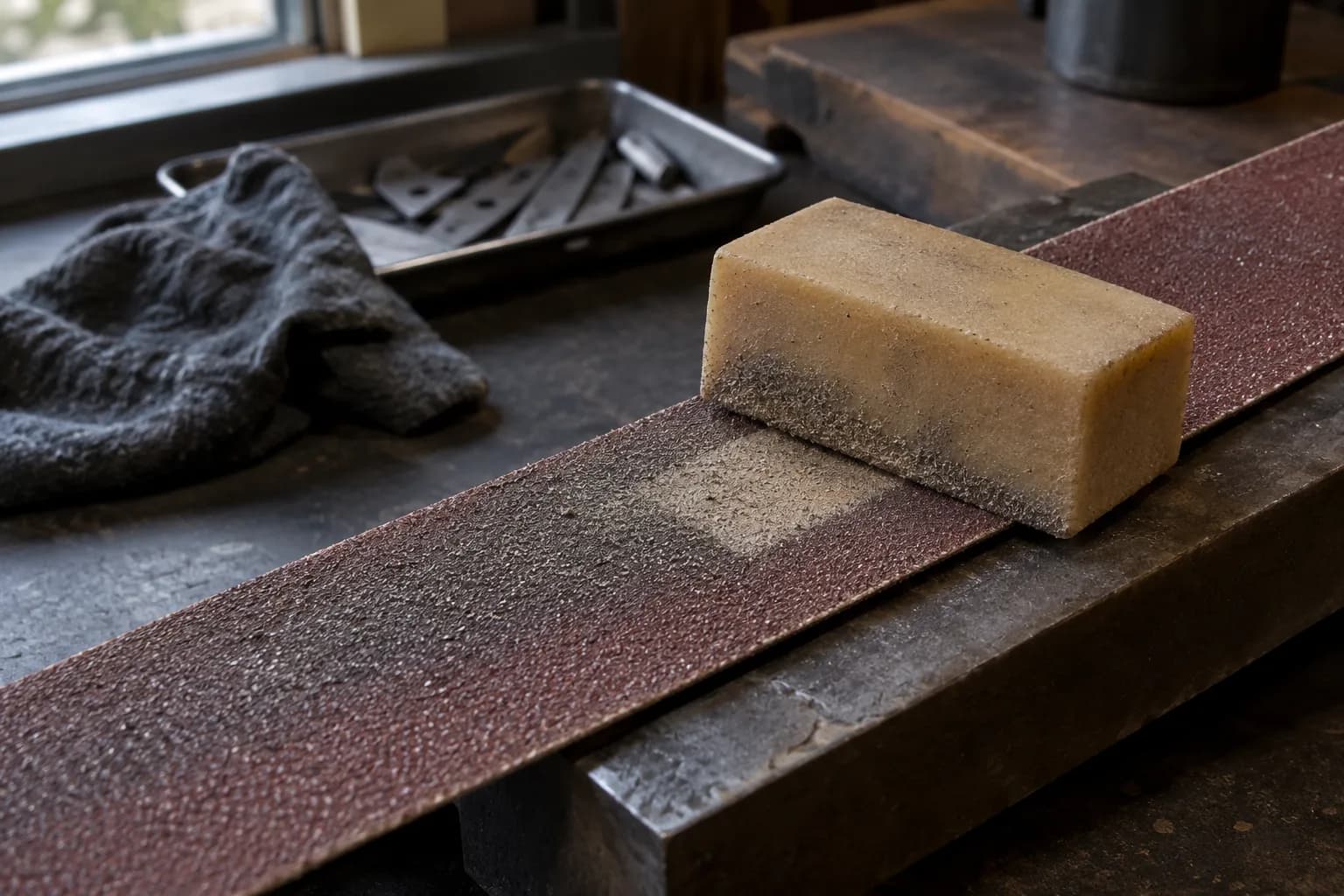

Rubber belt-cleaning eraser resting on a loaded abrasive strip, with a cleaner patch beside it, on a steel bench bar.

  1. Prevention

    • Match belt type to the specific steel being ground, check the steel's own grinding guide for recommendations
    • Keep a belt eraser on hand and use it proactively rather than waiting for a belt to fully load
    • Run at appropriate belt speed with light passes rather than heavy pressure at low speed

  2. When to stop

    If a belt is visibly torn, frayed at the edge, or the splice looks compromised, stop and replace it rather than continuing to use it; a belt failure at speed is a safety hazard, not just an inconvenience.

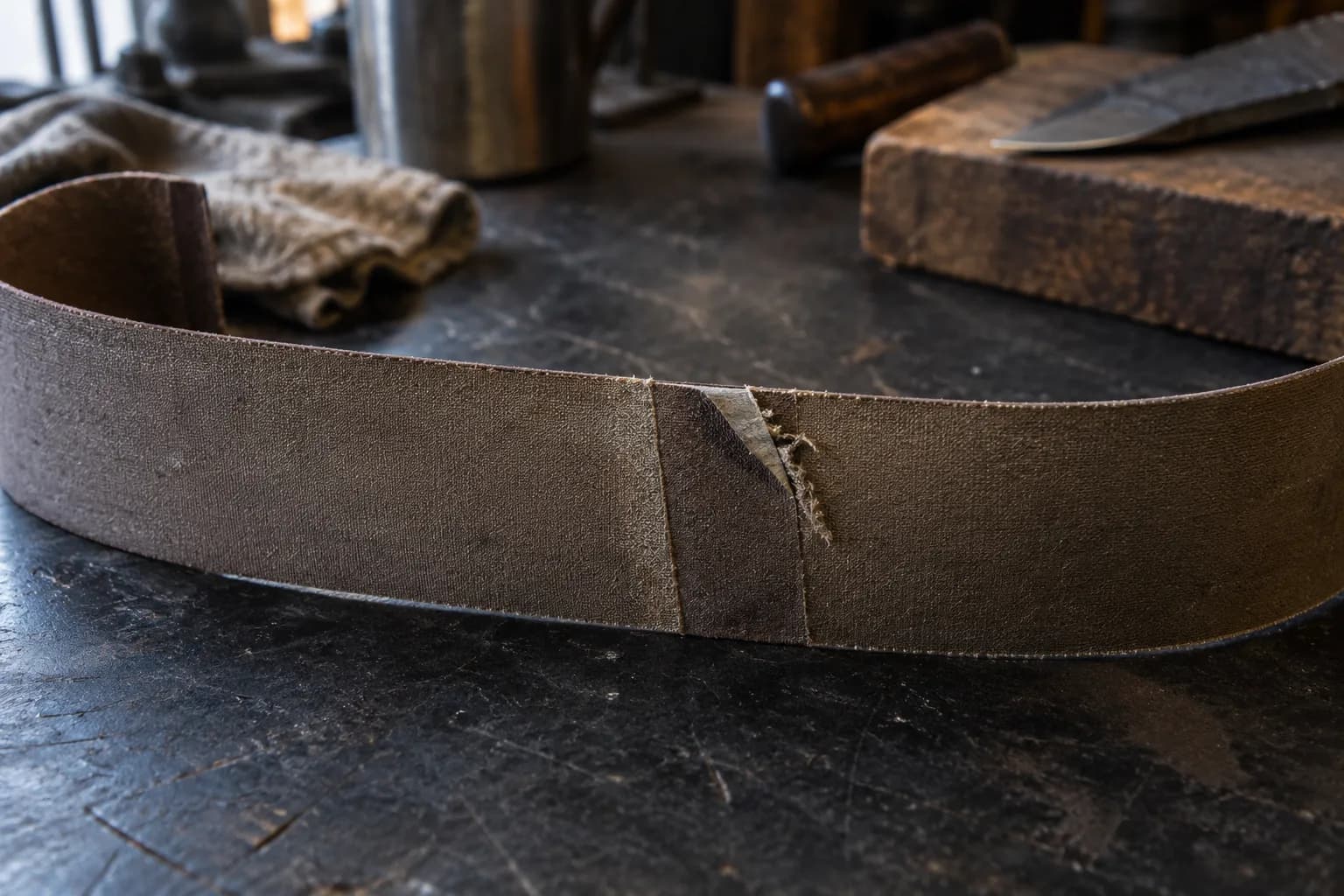

Back of a removed abrasive belt curved on a dark bench, its splice corner lifting beside a frayed tear.
