Troubleshooting

Belt Won’t Track or Keeps Sliding Off

Work back from what it is doing to what caused it, then to the fix that addresses the cause. Nothing here needs a sign-up.

If a symptom appears mid-job, put the work down and check it before continuing.

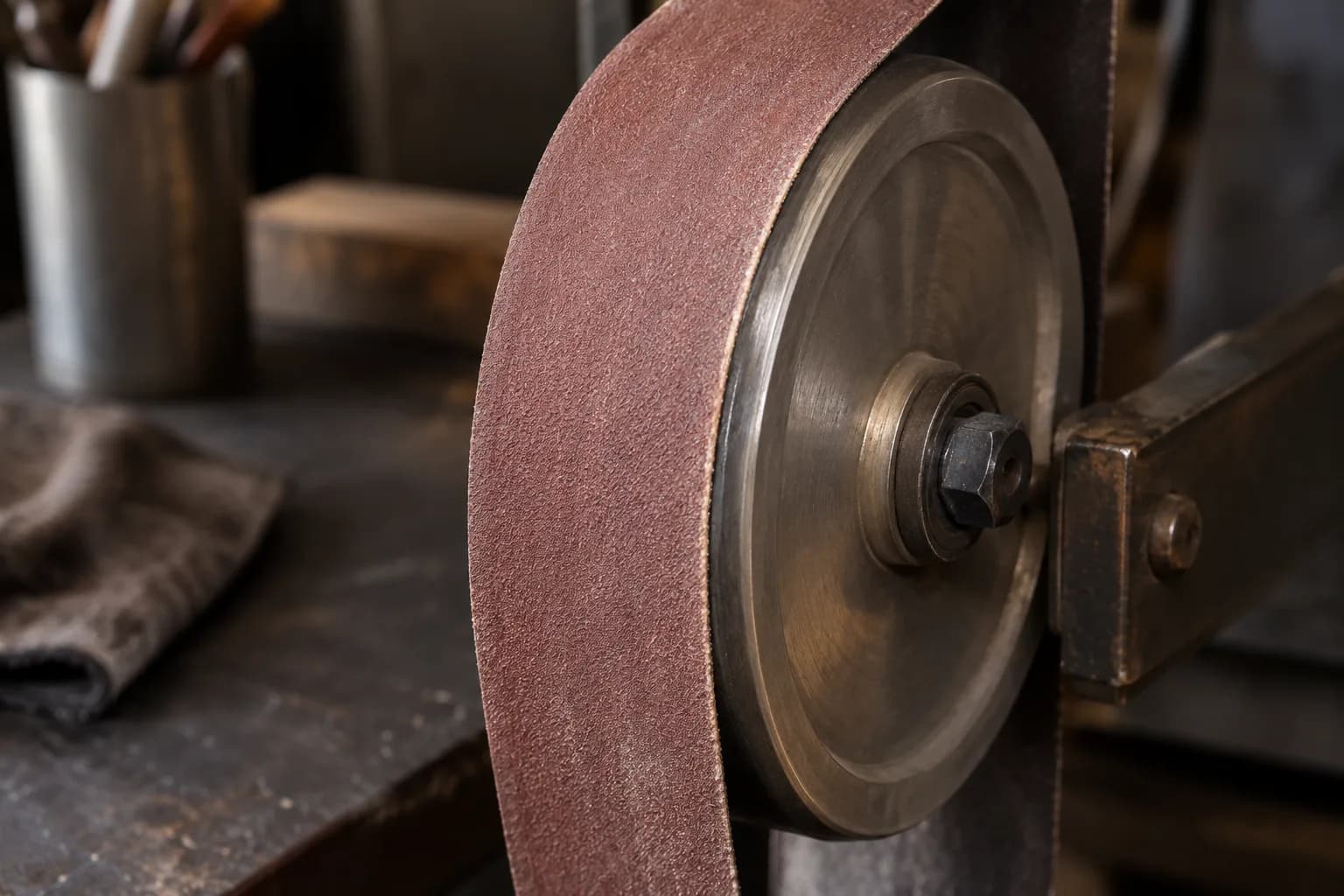

Stopped red-brown abrasive belt sitting flush against the outer edge of a plain steel grinder wheel on its shaft.

The flow

Work it in this order

Causes first, then the quick checks, the fix, prevention and the stop-work point.

  1. Likely causes

    • Drive and idler wheels are not parallel to each other (misaligned tracking)
    • Belt tension is too loose to hold a stable line
    • Tracking wheel or idler arm is loose and shifting under load
    • Worn, stretched, or damaged belt that no longer runs true
    • Wheels themselves are out of round or have uneven crown

  2. Quick checks

    • With the grinder off, spin the wheels by hand and watch whether the belt naturally centers or immediately drifts
    • Check that the idler wheel bracket and tracking adjustment bolts are tight, not just snug
    • Inspect the belt edges for fraying or a warped, uneven profile
    • Confirm belt tension is firm; a belt that flexes easily side to side is too loose

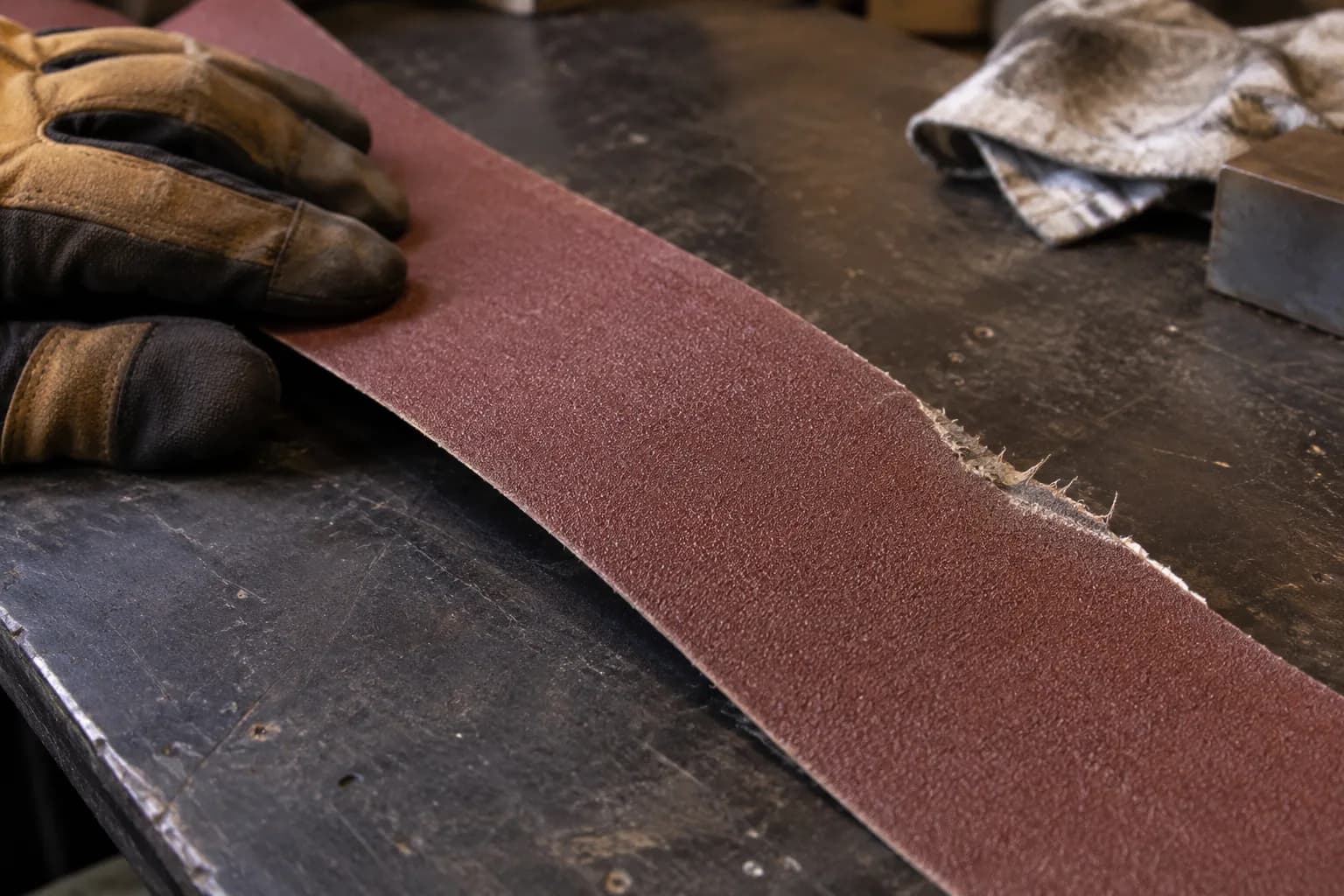

Gloved hand holding a removed abrasive belt flat on a dark bench, with a frayed, uneven edge on its right side.

  1. Fixes

    • Adjust the tracking wheel tilt in small increments, running the grinder briefly between each adjustment to see the effect
    • Tighten the belt tension before fine-tuning tracking; tracking adjustments on a loose belt rarely hold
    • Check and retighten all tracking-wheel and idler-arm hardware, including tension knobs
    • Replace a stretched or damaged belt rather than continuing to fight it

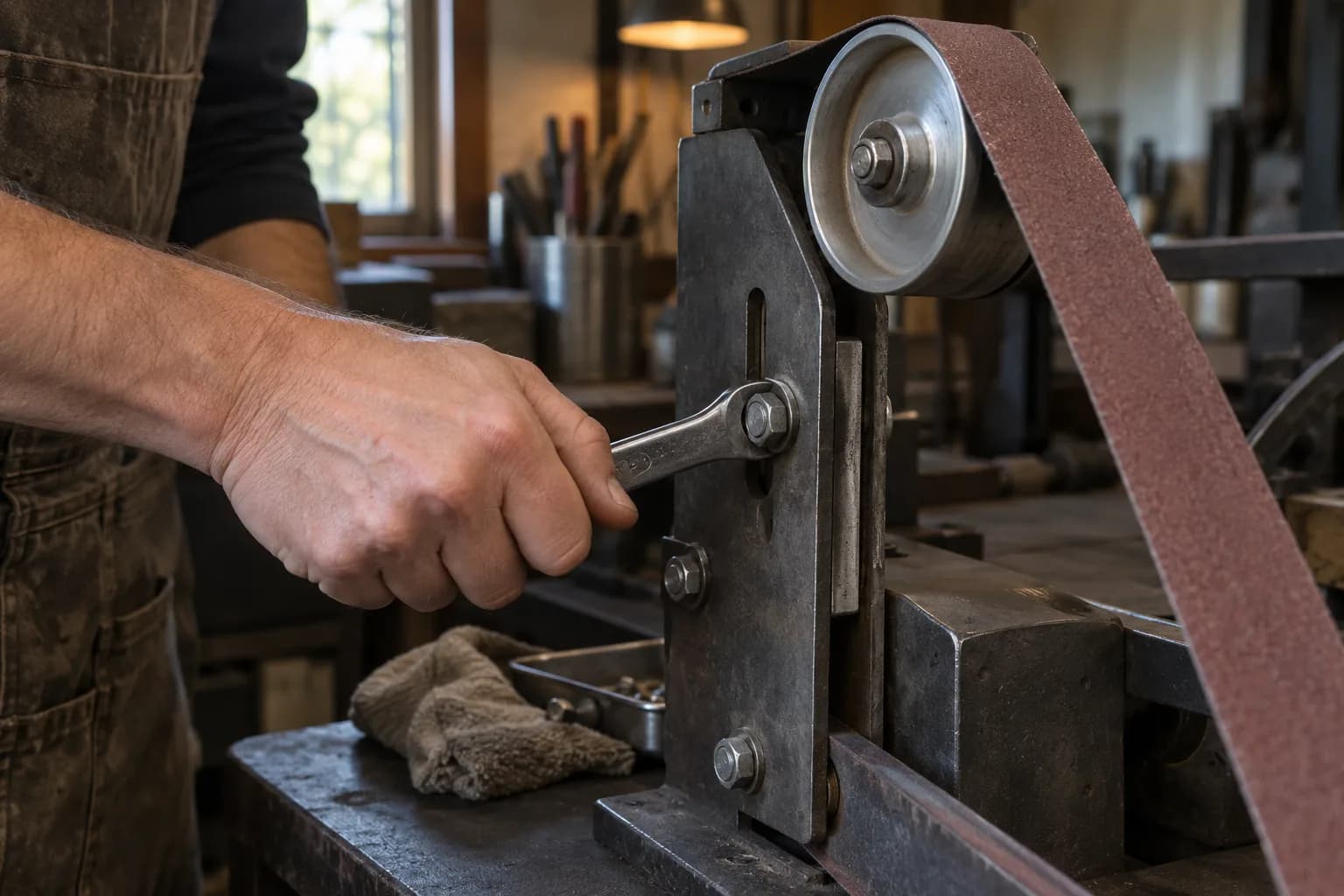

Bare hand turning a wrench on a bolt in a slotted steel idler-wheel bracket, with the belt resting on the wheel.

  1. Prevention

    • Recheck tracking hardware periodically, vibration and heat cycling can work fasteners loose over time
    • Retire belts once they show visible stretching, fraying, or an uneven edge
    • Keep tension knobs and adjustment hardware in good condition rather than overtightened or stripped

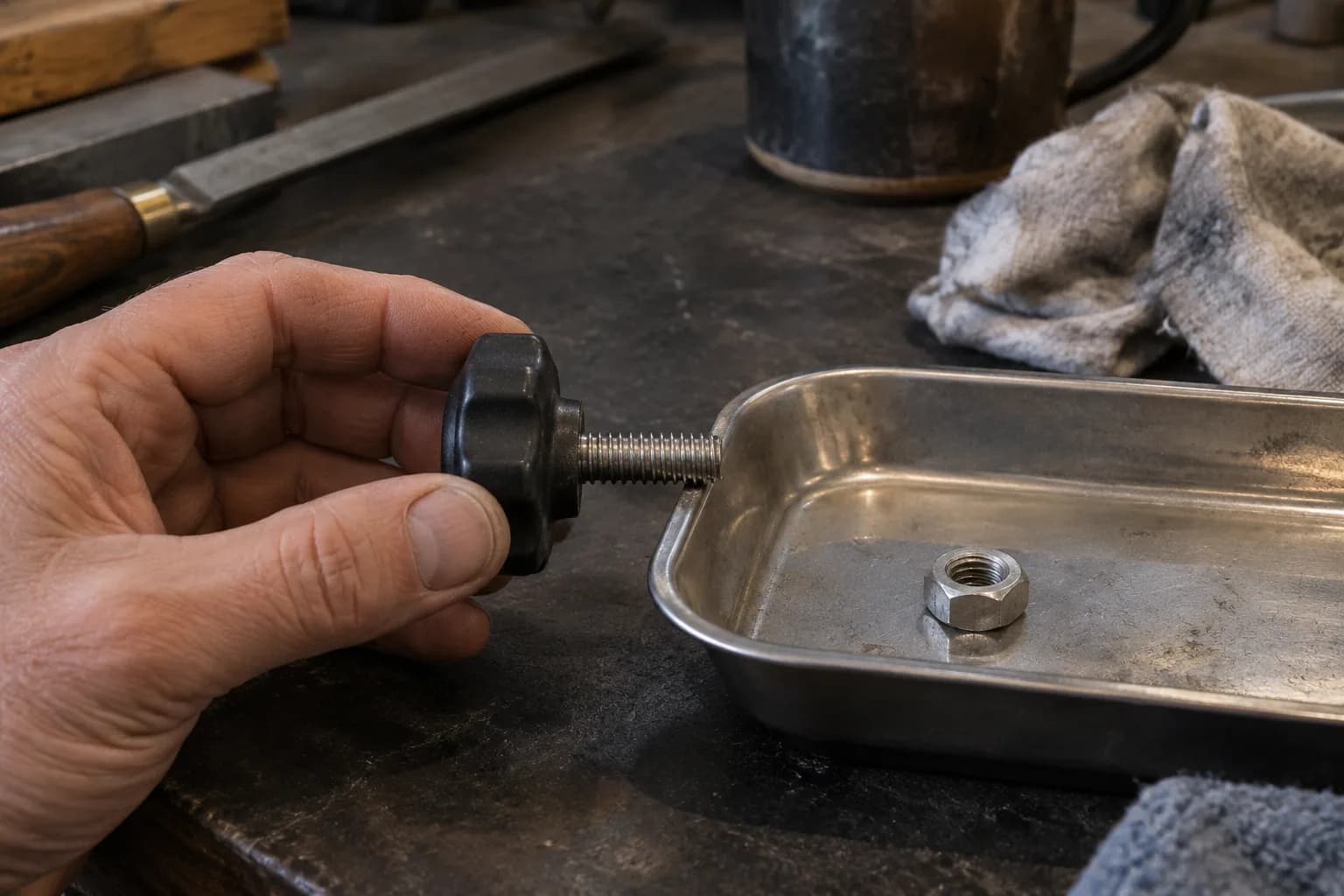

Bare hand holds a black lobed tension knob with a clean threaded steel shaft over a metal parts tray holding a hex nut.

  1. When to stop

    If a belt repeatedly jumps off the wheels at speed or you notice a wheel wobbling out of true, stop and address the mechanical issue before continuing; a belt failure at speed can be a real safety hazard.
