Upgrade Your Workshop with the Torus 3x79 Belt Grinder

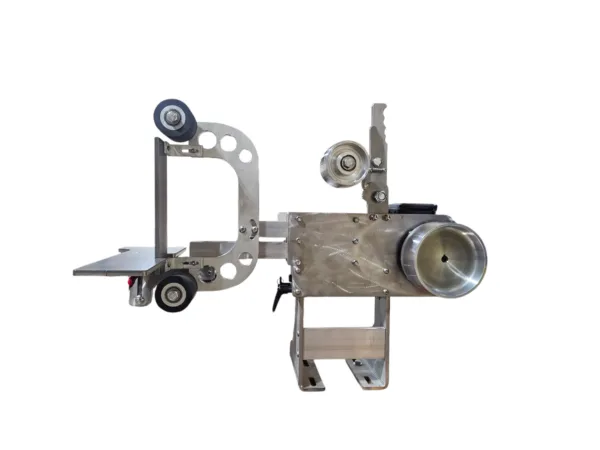

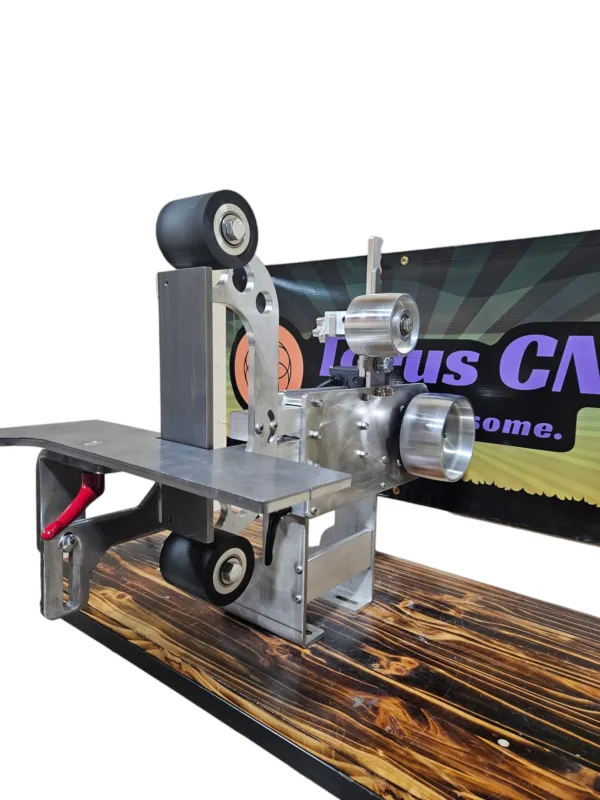

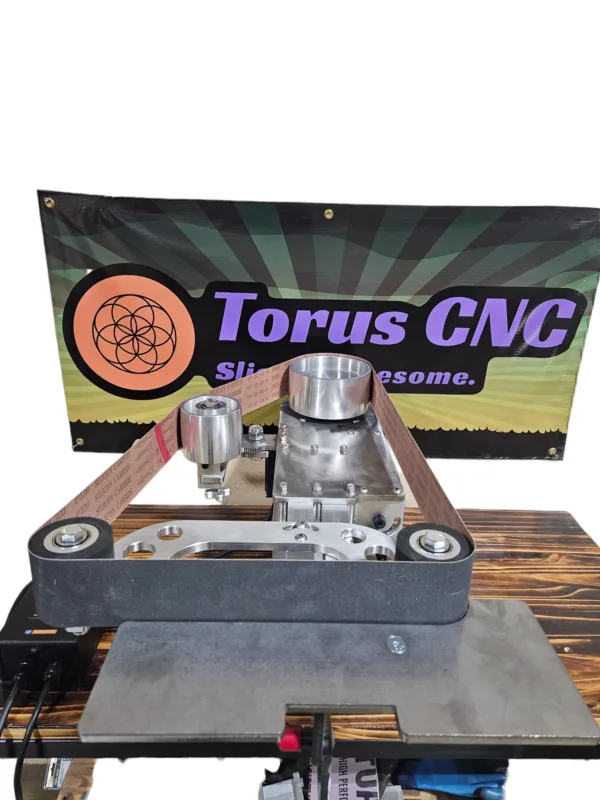

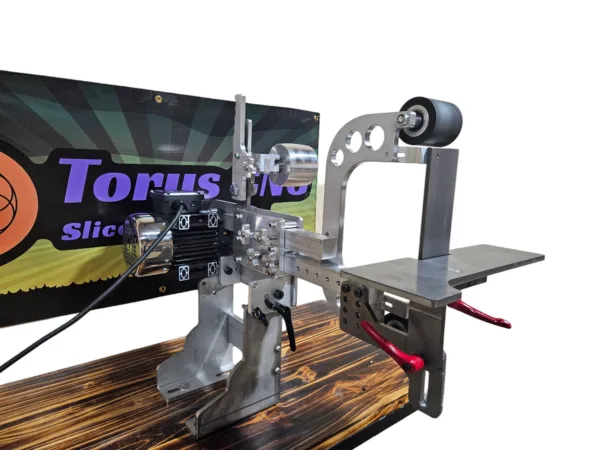

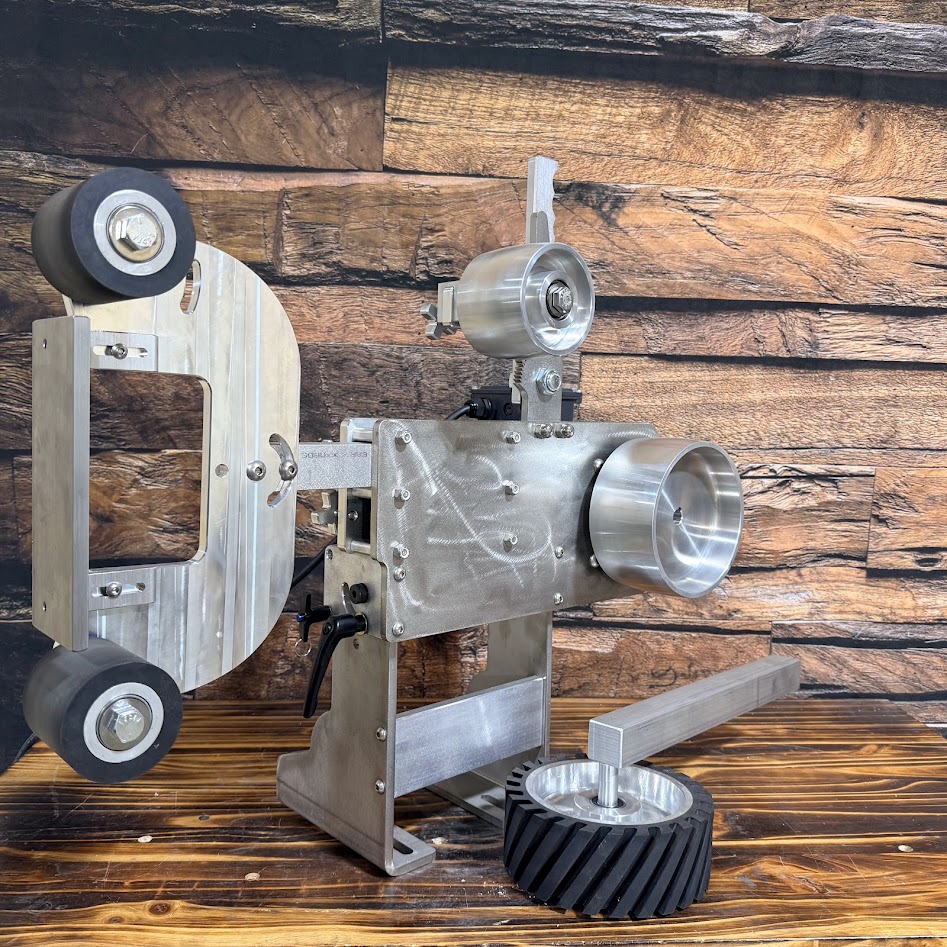

Name: Torus - 3x79 Tilting Belt Grinder Package- Stainless
SKU: 2092
Availability: InStock

Versatile, durable, and ready to take your shop to the next level. The Torus – 3×79 – Stainless – tilts from vertical to horizontal, comes fully assembled, and is built capable of handling the tasks for both demanding pros as well as beginners.

The Torus Tilting 3×79 Belt Grinder Chassis is a powerhouse in your workshop. Whether you prefer to grind in the vertical or horizontal position, this grinder has you covered. It ships partially assembled. I will have a video tutorial on how to complete the assembly, it’s very straightforward. No welding or major assembly required.

COMES WITH THE FOLLOWING:

Flat Platen / Deep Slack belt Attachment with a 17-inch, 1.5-inch solid aluminum tooling bar.
Adjustable Work Table Attachment.
Motor sold separately.
8-inch Contact Wheel Attachment sold separately.

Lead Time:

• Grinder frames without accessories typically ship within 5-7 business days. I’ll update you after you order with a more exact ship date.

Choose Your Belt Tensioner:

You have two options for the belt tension system, and it’s all about personal preference:

• Ratchet-Style Belt Tension system: Never wears out and provides consistent performance. Sought after option.

• Suspa USA Gas Shock Tension System: Reliable and smooth, with a trusted brand backing it. Not as robust as the ratchet system but preferred by some.

Compatibility:

The Torus – 3×79 is built to work with industry-standard 1.5-inch square tooling bars.

Thanks for taking a look, and if you’re ready to upgrade your setup to a 3in wide belt, this is the one!

mOTOR OPTIONS (Sold Separately):

The following accessories are sold separately and shown here for reference:

Variable Speed Motors with VFD:

1hp with KBAC 24 VFD, wired for 120V single phase. Not recommended for the TORUS-3×79 grinder.
1.5hp with KBAC 27D VFD, wired for 120V single phase. May be slightly underpowered for the TORUS-3×79 grinder.
2hp with KBAC 27D VFD, wired for 220V single phase. Recommended motor combo for the TORUS 3×79 grinder.

Drive Wheels:

• 7-inch drive wheels available with 5/8 bore.

Shipping Time:

Orders ship in 5-15 business days depending on backlogged orders and add-ons.
Grinder frames without accessories usually ship within 2-7 business days.

Key Features:

304 stainless steel chassis and motor plate Ultra strong 3/8″thick stainless for the most demanding applications.
6061 Aluminum Components: Strong, corrosion-resistant, and built to last.
Ratchet Lock Belt Tension System: 304 stainless steel for long lasting, reliable function.
Suspa USA Gas Shock Option: Known for smooth and durable operation.
90-Degree Tilt Function: Easily switch between vertical and horizontal grinding.
Top-Grade Hardware: Stainless steel, zinc plated and alloy steel precision shoulder bolts for reliable assembly.

Designed for Performance:

With the Torus – 3×79, switching between vertical and horizontal grinding is as simple as loosening the handle and pulling the pin. Easy belt changes are thanks to the 304 stainless steel ratchet mechanism, ensuring you spend more time grinding and less time fussing with adjustments.

Made from 304 stainless steel and 6061 aluminum , this grinder’s frame is built for strength, rigidity, and corrosion resistance. With a larger footprint than previous models, the M-90-AL reduces flex on your work surface, making sure you have the stability you need for every project.

The Final Word:

This grinder is more than just a tool. It’s going to call out from your shop, urging you to spark creativity and make something truly awesome. So, go ahead—take the plunge and don’t look back.

Thanks for looking. Have a good one!

— Rich

Belt Tension Preference	Ratchet Style Mechanism, Gas Shock Mechanism
